Fig. 15

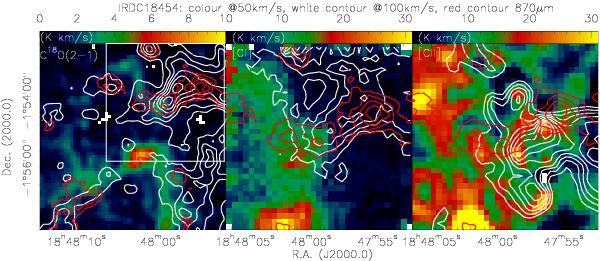

IRDC18454: the color scale shows in the left, middle and right panel the emission from C18O(2–1), [CI] and [CII], respectively. The integration regimes for the three color images are [47; 55] km s-1. The white contours in all three panels correspond to the emission from the same species only integrated from [80; 120] km s-1. The red contours always show the ATLASGAL 870 μm emission in levels of 0.4 Jy beam-1.
