Fig. 10

thumbnail

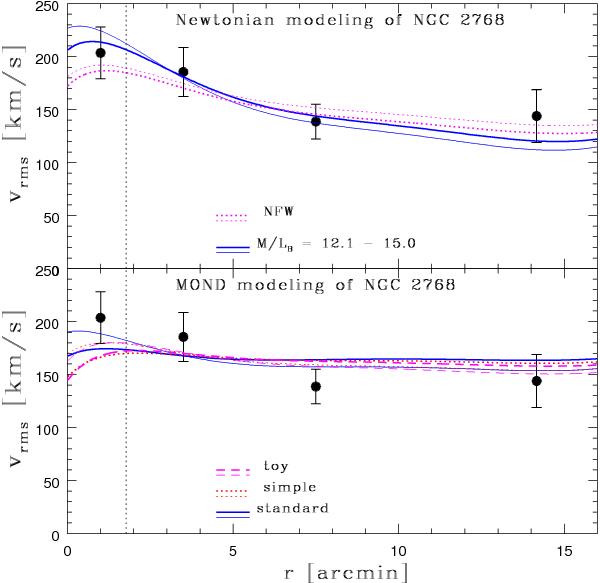

Jeans Newtonian and MOND modeling of the projected velocity dispersion of NGC 2768. The thick lines are for isotropic cases, and the thin lines are for fits based on βlit. Upper panel: in the Newtonian approach, the mass-follows-light models are plotted with the thick (thin) solid blue line for M/LB = 12.1(15.0), and the NFW models with M/LB = 8.0(9.0) are rs = 300(400) arcsec and ρs = 0.0045(0.0050) M pc-3, which are plotted with the thick (thin) dotted magenta line. Lower panel: MOND models of the projected velocity dispersion of NGC 2768 for three interpolation functions μ(r) for both isotropic and anisotropic case (based on βlit). The standard MOND model is presented with the thick (thin) solid blue line for M/LB = 7.6(10.2); the simple MOND model is presented with the thick (thin) dotted red line for M/LB = 5.6(7.8); and the toy MOND model is presented with the thick (thin) dashed red line for M/LB = 4.4(6.0). In both panels, one effective radius is indicated by a vertical dotted line.
