Fig. A.2

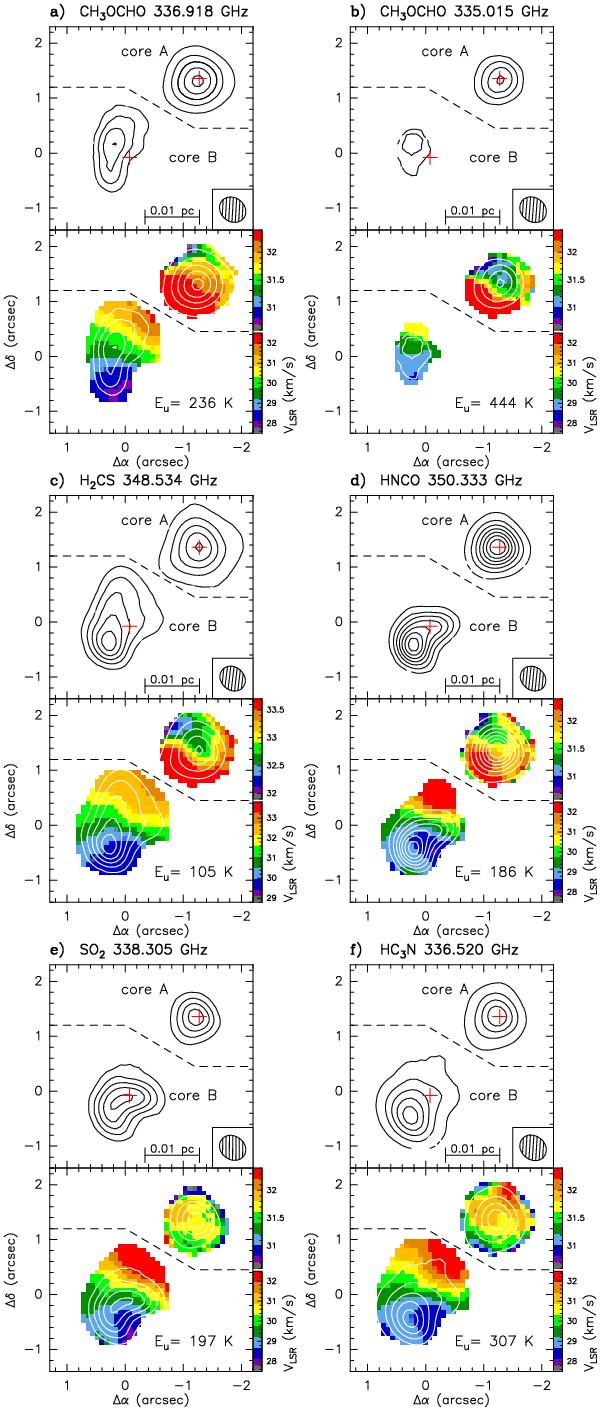

Maps of the integrated intensity (upper panels) and velocity field (bottom panels) of a) CH3OCHO (266,20–256,19); b) CH3OCHO (277,21–267,20); c) H2CS (101,9–91,8), d) HNCO (161,16–151,15); e) SO2 (184,14–183,15); and f) HC3N (37–36) towards cores A and B. For the different panels, the starting (and increasing contour levels in terms of σ, in Jy beam-1 km s-1) are 5σ (10σ, with σ = 0.06), 3σ (3σ, with σ = 0.04), 5σ (10σ, with σ = 0.16), 5σ (10σ, with σ = 0.10), 5σ (5σ, with σ = 0.20), and 5σ (10σ, with σ = 0.11) for core A; and 3σ (3σ, with σ = 0.03), 1σ (1σ, with σ = 0.02), 5σ (5σ, with σ = 0.09), 5σ (5σ, with σ = 0.06), 5σ (5σ, with σ = 0.10), and 5σ (10σ, with σ = 0.07) for core B. See details and description of symbols in Fig. 4.

This figure is made of several images, please see below:
