Fig. 6

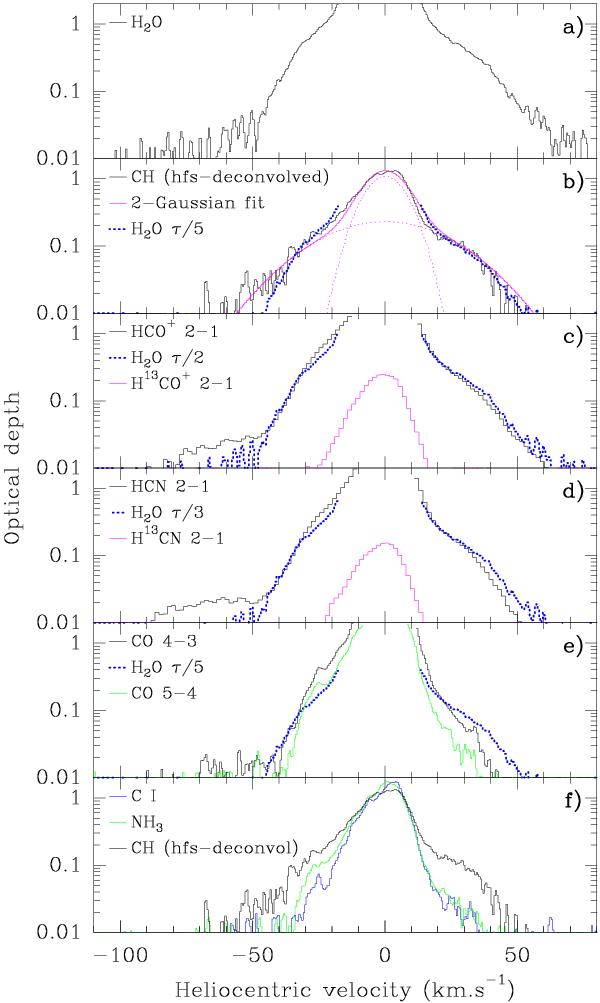

Line wings of the v = 0 km s-1 velocity component toward the SW image. The ordinate denotes optical depth and is on logarithmic scale. Opacities are clipped at a level τ = 2, where they become less well determined due to uncertainties in the source covering factor.
