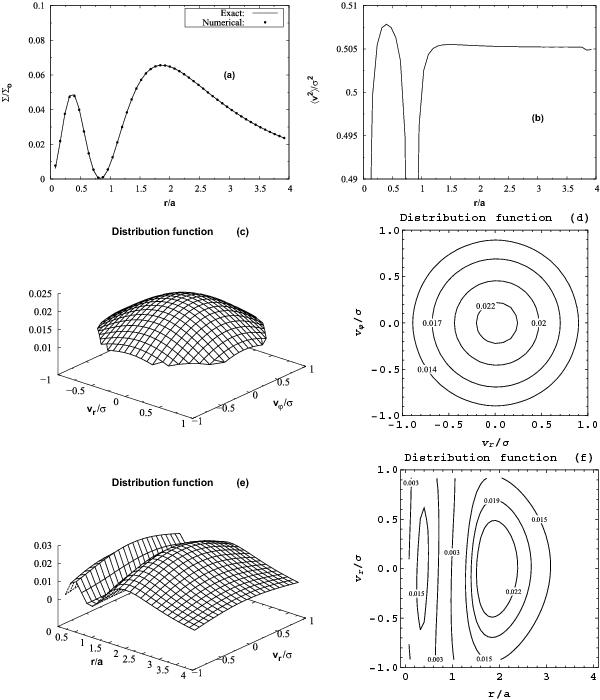

Fig. 2

Results for the double ring (1, 2). We consider the parameters a = 4 kpc,
σ =
24.80 km s-1, ,
κ =
1.2, ρ = 0.12 × 10-13
kg m-3,
ma =
M⊙, vtyp =
0.8σ, bm =
4 kpc, δz = 3 × 10-9 kpc,
σv =
0.8σ, and rmax =
4a. In graph a) the mass
surface density profile of the exact solution (solid line) is compared with the
mass surface density profile obtained from the numerical integration of Eq. (6) (full circles). In the region with
the highest density the difference is less than 1.7%. Graph b) shows
the values of ⟨ v2 ⟩/σ2 within the
ring. Graphs c) and d) show the velocity distribution
function and the level curves for the case r/a ≈
2.32, respectively. Graphs e) and f)
show the spatial distribution function and the level curves for the case
vϕ = 0,
respectively.
