Fig. 5

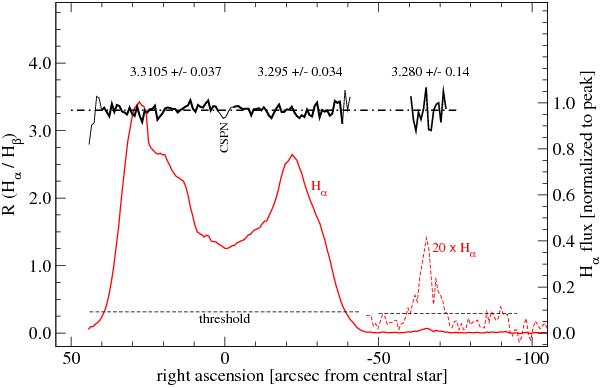

The spatial distribution of the line ratio R = Hα/Hβ to search for intrinsic extinction. To cover homogeneous S/N ratios, a threshold of 3.5× below the S/N peak was chosen. Also the region around the CSPN was excluded. For the shell, the same procedure was applied, but 20× fainter.
