Fig. 5

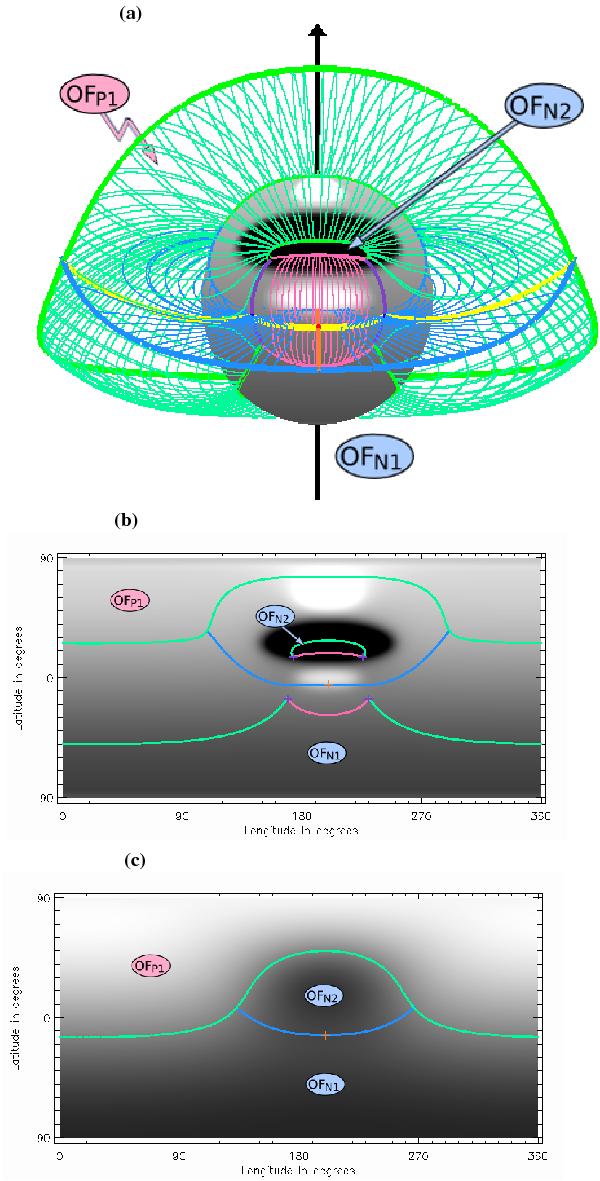

Example of a separatrix tunnel and closed separatrix curtain topology. a) 3D image of the magnetic topology. b) Photospheric magnetic field and intersection of the magnetic skeleton with the photosphere. c) Intersection of the magnetic skeleton with the source surface over-plotted on a contour plot of the source-surface radial field. Colouring and symbols as in Fig. 3.
