Fig. 4

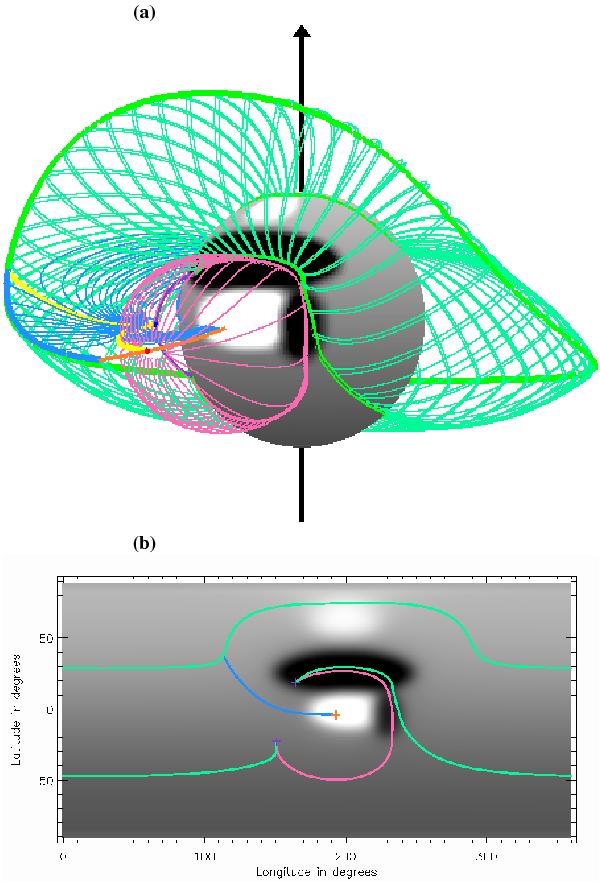

Example of the topology of a separatrix cave formed from one separatrix surface and a semi-open separatrix curtain. a) 3D image of the magnetic topology. b) Magnetic field two grid points above the photosphere (grey-scale contour map) and the intersection of the magnetic skeleton with this surface. Colour surfaces, lines and symbols as in Fig. 3.
