Fig. 11

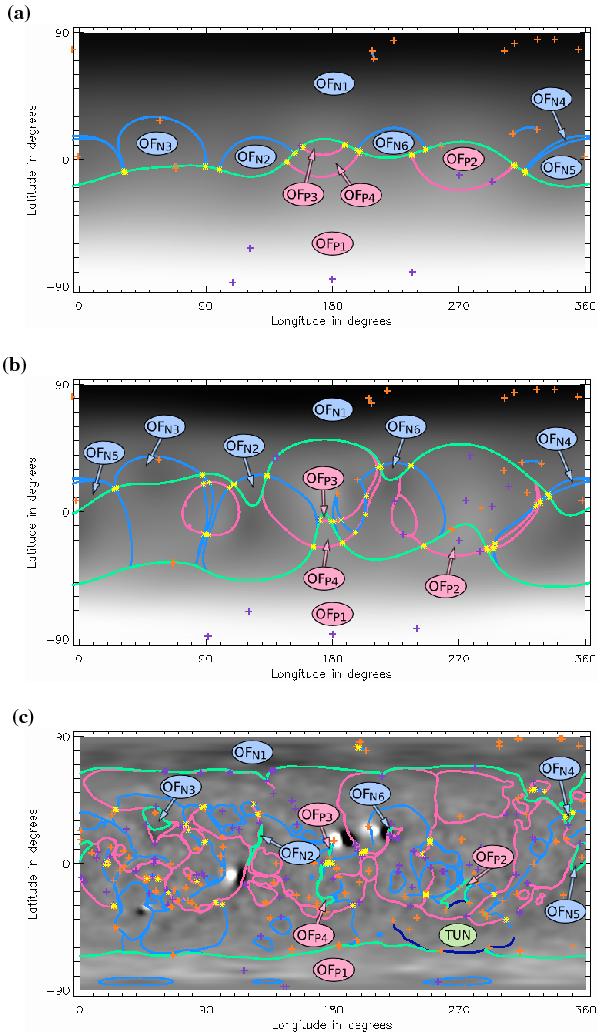

Weak solar dipole minimum: cuts through the magnetic skeleton of CR 2083 at fixed radii of a) r = Rss = 2.5 R⊙, b) r = 1.44 R⊙ and c) r = 1.02 R⊙. Features are coloured as in Fig. 8. There are six negative open-field regions (labelled OFN1−6) and four positive open-field regions (labelled OFP1−4). The separatrix tunnel dividing OFP1 and OFP2 is labelled as TUN.
