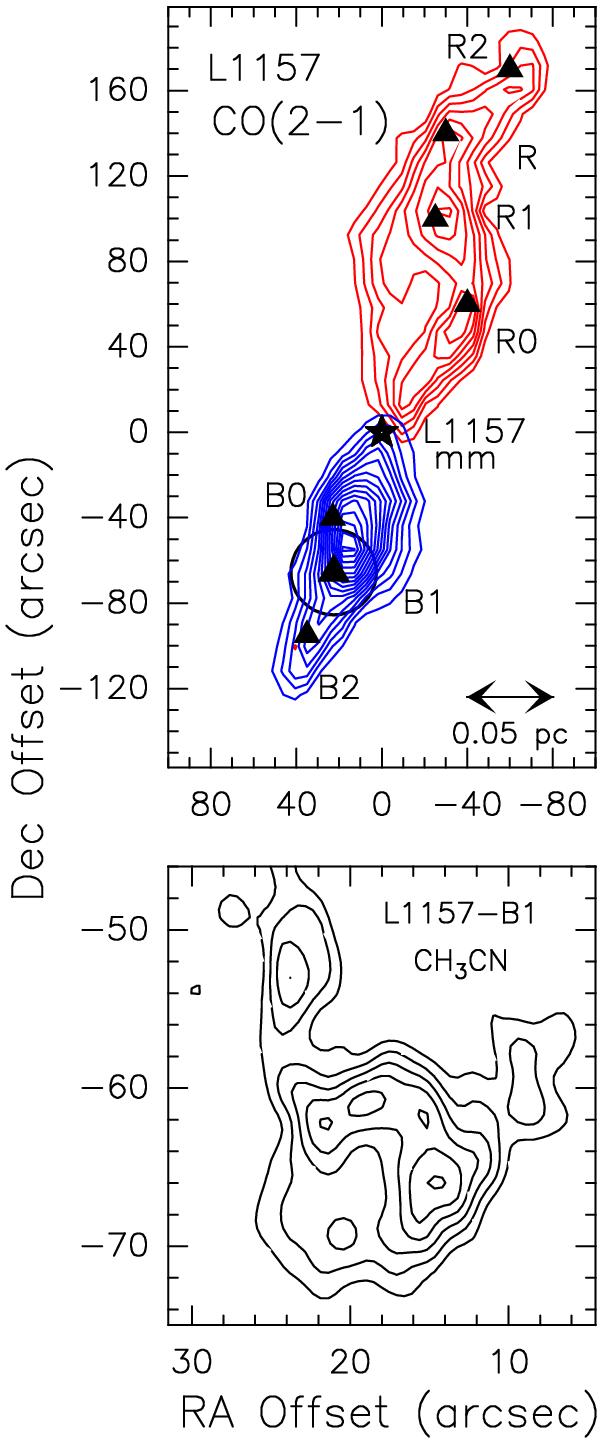

Fig. 1

Top panel: integrated CO J = 2–1 emission of the L1157 bipolar outflow
(Bachiller et al. 2001). Offsets are with
respect to the driving source L1157-mm (black star), at coordinates: αJ2000 =
20h39m062, δJ2000 = +
68°02′16
0.
The black triangles and labels indicate the main blue- and red-shifted knots as
defined by Bachiller et al. (2001). Circle is
for the largest HPBW of the present dataset (40″), centred on the L1157-B1 bow shock.
Bottom panel: the L1157-B1 bow shock as traced by the
CH3CN
J = 8–7
K =
0,1,2 emission at 3 mm,
observed with the IRAM PdB interferometer (Codella et
al. 2009).
