Fig. 14

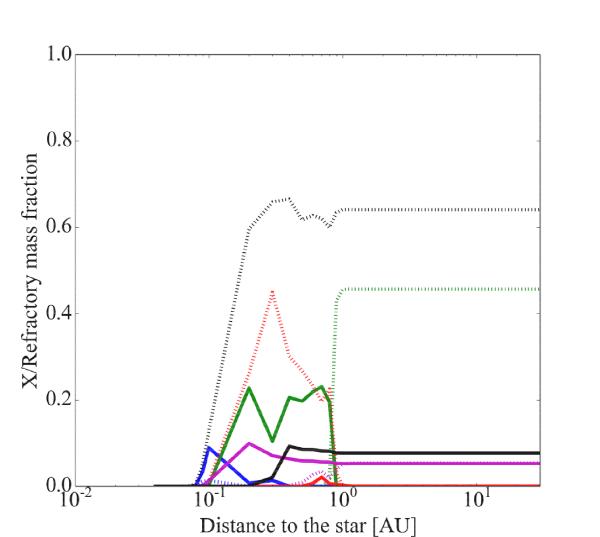

Distribution of silicates relative to all condensed refractory molecules in one of the simulated disks (Σ0 = 95.844 g cm-2, acore = 46 AU and γ = 0.9) for the model “without” organic compounds. Solid blue: CaO*Al2O3*2SiO2; dotted blue: *2CaO*Al2O3*SiO2; solid green: Mg2SiO4; dotted green: Mg3Si2O5(OH)4; solid red: Fe2SiO4; dotted red: MgSiO3; solid purple: CaMgSi2O6; dotted purple: FeSiO3; solid black: NaAlSi3O8; dotted black: All silicates.
