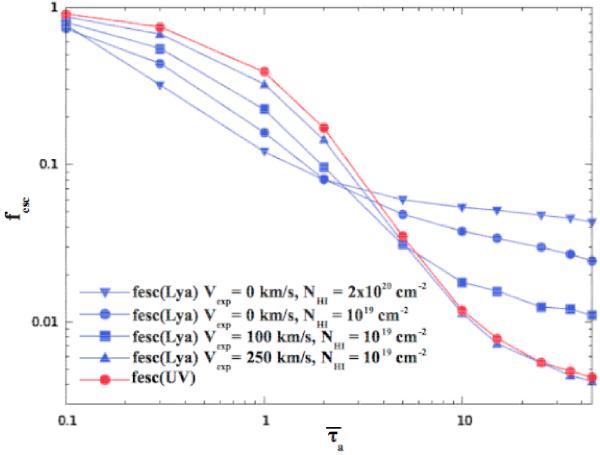

Fig. 10

thumbnail

Lyα (blue lines) and UV (red line) escape fractions as a function of the dust optical depth in the high-contrast regime, for various values of expansion velocity vexp and hydrogen column density . The extremely clumpy media have FF = 0.23, CF = 0.997 (Rmin = 49 and Rmax = 64 cells), nic/nc = 0.00 and b = 40 km s-1 in common. We adopt as well the following expansion velocities vexp and H i column densities : vexp = 0, 100, and 250 km s-1 and = 1019 cm-2 and 2 × 1020 cm-2. We indicate the critical dust optical depth τc where the curve of fesc(Lyα) for vexp = 0 km s-1 cross the curve of fesc(UV).
