Fig. 1

thumbnail

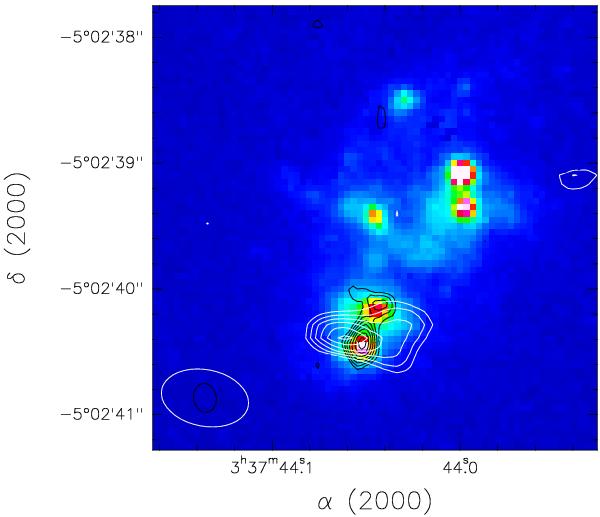

ALMA 870 μm continuum map of SBS 0335−052 shown as white contours overlaying the HST/ACS F555M image taken from Reines et al. (2008). Band 7 contours range from 1 to 2σ (σ = 0.035 mJy/beam). Black contours (ranging from 3 to 9σ, σ = 0.012 mJy/beam) give the high-resolution VLA map at 3.6 cm taken from Johnson et al. (2009). The radio and dust emission is associated with the two brightest SSCs (1, 2) toward the southeast. Beam sizes of the two contoured images are shown in the lower left corner. At the distance of SBS 0335−052, 1′′ corresponds to 262 pc.
