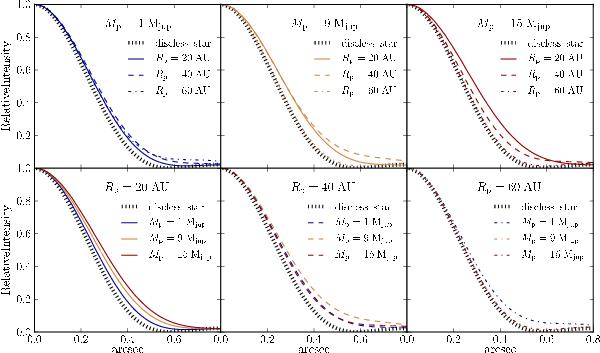

Fig. 6


Synthetic 20   μm (Q-band) measurements for the different masses and planet positions considered. Upper row: variation in the PSF profile with planet position for fixed planet mass. Lower row: variation in the PSF profile with planet mass for a fixed planet position. In all panels, the different colors indicate different planet masses (blue, yellow, and red for Mp =  [1,9,15]    MJup, respectively) while different line styles correspond to different planet positions (solid, dashed and dash-dotted for Rp =  [20,40,60]    AU, respectively). The black striped line shows the PSF corresponding to a discless (calibrator) star for reference.
