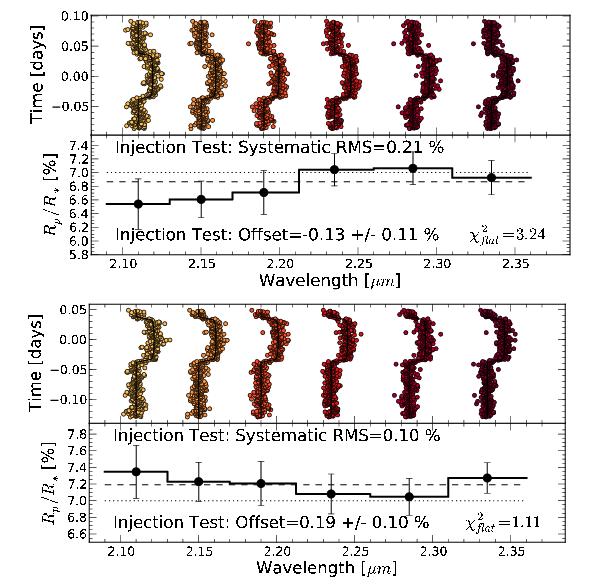

Fig. 4


Injection-and-recovery results for K-band MOSFIRE data. The light curves shows simulated transits that have been injected into real data and re-fit as described in Sect. 3.6; they are plotted here after removal of overall trends and state vectors. The dotted line shows the wavelength-independent injected value of 7.0%. The thick solid lines and points shows the best-fit recovered transit parameters; the error bars derive from the MCMC analyses and have been inflated by ⟨ βT14 ⟩ as discussed in Sect. 3.2. The dashed lines indicates the weighted means for each test. In both cases the recovered spectra are consistent with a constant value, and the systematic offsets are <2σ.

This figure is made of several images, please see below:
