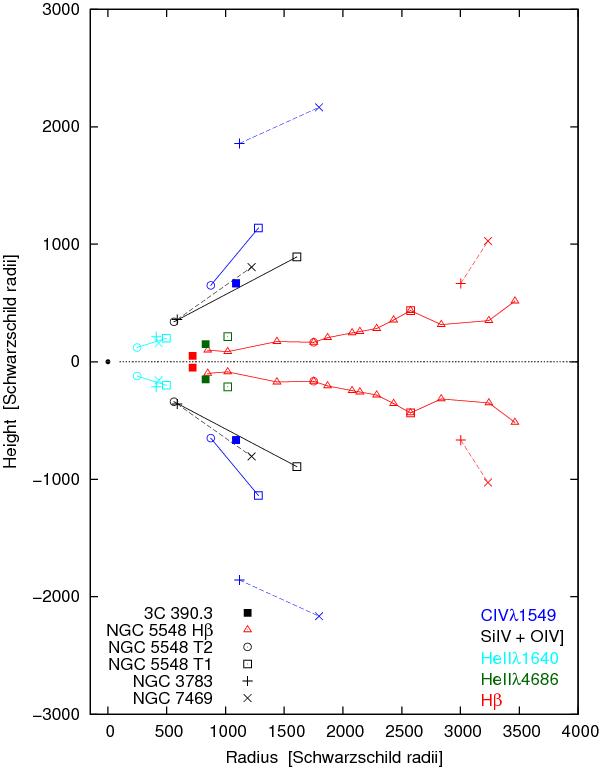

BLR structures in NGC 7469, NGC 3783, NGC 5548 (two epochs), and 3C 390.3 scaled to their individual Schwarzschild black hole radii. Same as Fig. 14, but the emitting regions of the different lines are drawn in different colors: C ivλ1549 (blue), Si iv+O iv]λ1400 (black), He iiλ1640 (cyan), He iiλ4686 (green), Hβ (red). The individual line-emitting regions of the two narrow line Seyfert galaxies NGC 7469 and NGC 3783 are connected by a dashed line to aid the eye. The line-emitting regions of NGC 5548 are connected by a solid line.
