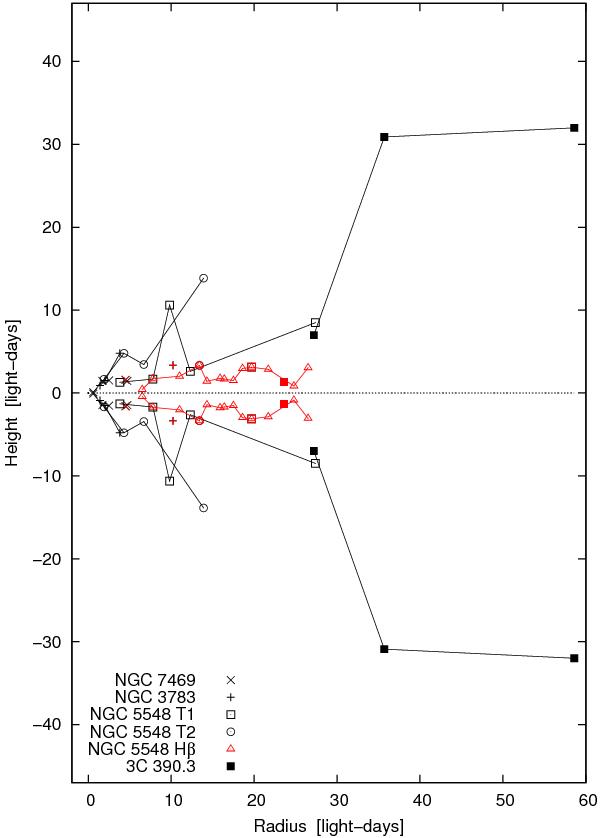

Fig. 12
BLR structures in NGC 7469, NGC 3783, NGC 5548 (two epochs), and 3C 390.3 as a function of distance to the center as well as height above the midplane. The highly ionized (non-Balmer) lines of the individual galaxies are connected by a solid line. The Hβ emitting regions are drawn in red. The Hβ emitting line regions of NGC 5548 (13 epochs) are connected by a solid red line.
