Fig. 8

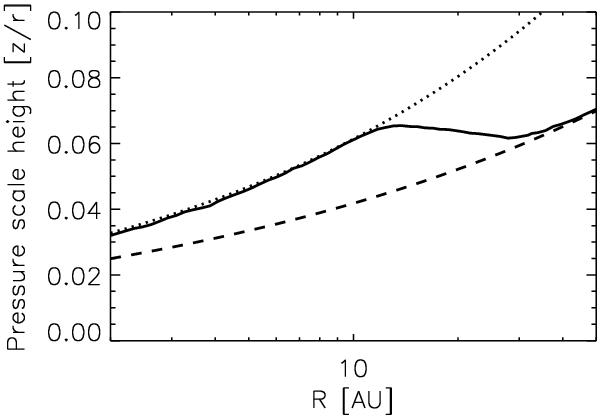

Scale height profile for our best-fit radiative transfer model (solid line) in the range modeled with Fargo. Also plotted are the best-fit profile in the gap (Hp(r) = 0.025 r1.39, dotted line) and that of a disk without a gap (Hp(r) = 0.02 r1.32, dashed line). Because the radiative transfer model is not vertically isothermal, the scale height is defined as the height where the pressure drops off with a factor e1/2 with respect to the midplane.
