Fig. 3

thumbnail

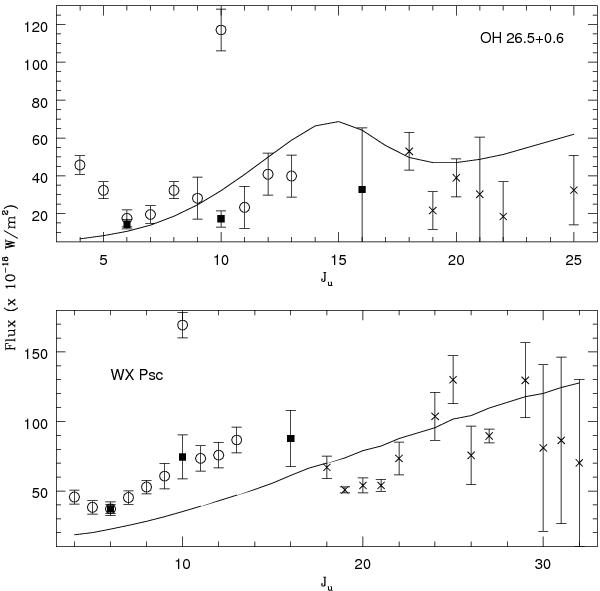

CO line fluxes taken SPIRE (open circles), HIFI (filled squares) and PACS (crosses) are shown together with the predicted fluxes from the model which is the best fit to both ground-based observations and HIFI for WX Psc (bottom) and OH 26.5+0.6 (top). The high SPIRE flux of J = 10–9 is due to a blend with a strong H2O line.
