Fig. 1

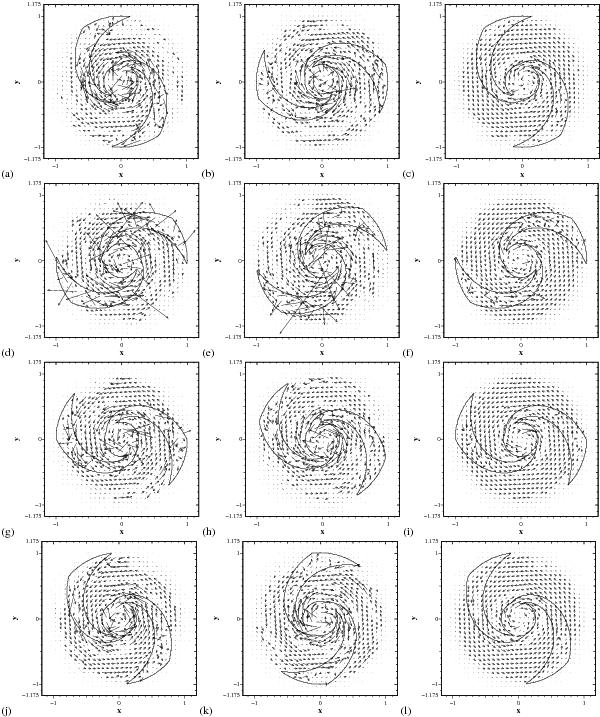

Evolution of magnetic field configurations. Left-hand column is model 75, middle column model 76, right-hand column model 77. Models (a), (b), (c) (first row) at approximate time 11.7 Gyr; models (d), (e), (f) (second row) at time 12.5 Gyr; models (g), (h), (i) (third row) at 12.9 Gyr; models (j), (k), (l) (bottom row) at approximately 13.2 Gyr (i.e. “now”). For model 76 the rotation parameter Rω has been increased from that of model 75, and in model 77 the magnitude of the injected field, Binj0, has been decreased from that used in model 75. The continuous contours delineate the regions (“arms”) where field is injected; these rotate rigidly, with pattern speed such that the corotation radius is at fractional radius r ≈ 0.7.
