Free Access

Fig. 2

thumbnail

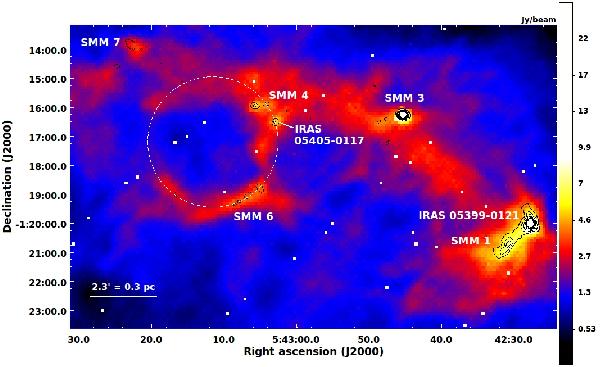

Herschel/SPIRE 250-μm far-infrared image towards the Orion B9 star-forming filament. The image is shown with a square-root scaling to improve the contrast between bright and faint features. The image is overlaid with black contours of SABOCA 350-μm emission. The SABOCA contours start at 3σ and increase at this interval (Paper III). The SABOCA data towards the IRAS 05399/SMM 1 -system with a 1σ noise level of 80 mJy beam-1 are taken from Miettinen & Offner (2013). Selected cores are labelled. The ring-like structure comprising partly of SMM 6 is highlighted with a white dashed circle of radius or ~0.3 pc. A scale bar indicating the 0.3 pc projected length is shown in the bottom left corner.

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
