Fig. B.5

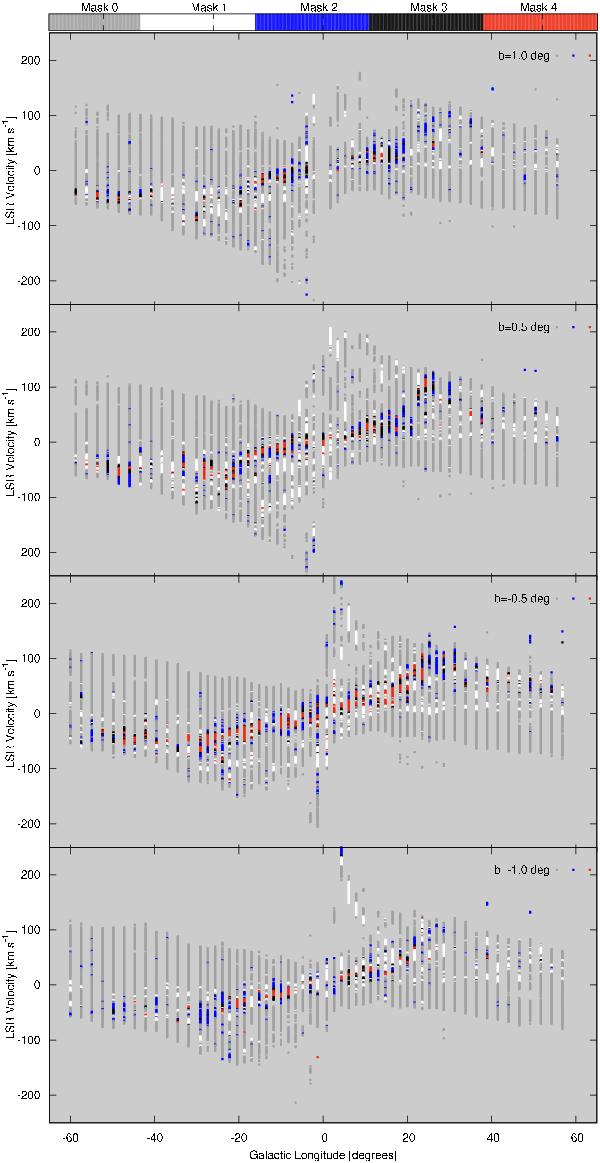

Position velocity maps of the different cloud types defined in Sect. 4.1 for b = ± 0.5° and ±1.0°. The Mask 0 (grey) represents velocity components with only H i detected, Mask 1 (white) are components with only H i and CO detected, Mask 2 (blue) components with only H i and [C ii], Mask 3 (black) components with H i, [C ii], and CO, and Mask 4 (red) components with H i, [C ii], 12CO, and 13CO.
