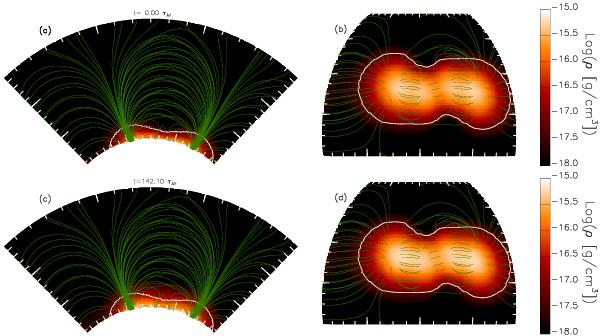

Illustration of the evolution of magnetic field and plasma in the test simulation with a potential field. a) and c) maps of log 10(ρ [g/cm3]) in the (r,φ) plane passing through the centre of the bipoles (at t = 0 τAlf, and at t = 142.10 τAlf). b) and d) same maps at the r = 1.09 R surface. Superimposed are magnetic field lines plotted from the same starting points (green lines) and the contour line of β = 1 (white line).
