Fig. 3

thumbnail

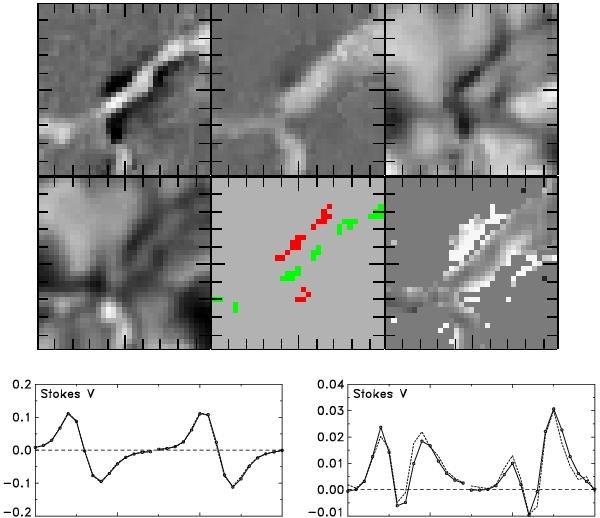

Top row of panels: LOS magnetic field at τc = 0.95, and 0.09 (both clipped at (− 1500, 2000) G), and the LOS velocity at τc = 0.95, clipped at (− 3.0, 2.0) km s-1, from a 2′′   ×   2′′ subfield showing a sheet-like network patch located in the lower-left corner of Figs. 4, 6 and 11. Second row: temperature at τc = 0.95, the green and red pixels used to produce the plots in the lower part of the figure, and the Stokes V area asymmetry (V  dλ/ | V |   dλ), clipped at (− 0.5, 0.5). Note the presence of strong opposite polarity field at τc = 0.95, the virtual absence of such field at τc = 0.09 and the strongly increased width of the LOS magnetic field with height. Short tick marks are separated by 02. The plots show the observed (dashed) and synthetic fitted (full) Stokes V spectra averaged from the interior of the flux concentration (left, from green pixels) and the boundaries with opposite polarity field (right, from red pixels). Note the abnormal V profile with 3 lobes from the opposite polarity field.
