Fig. 16

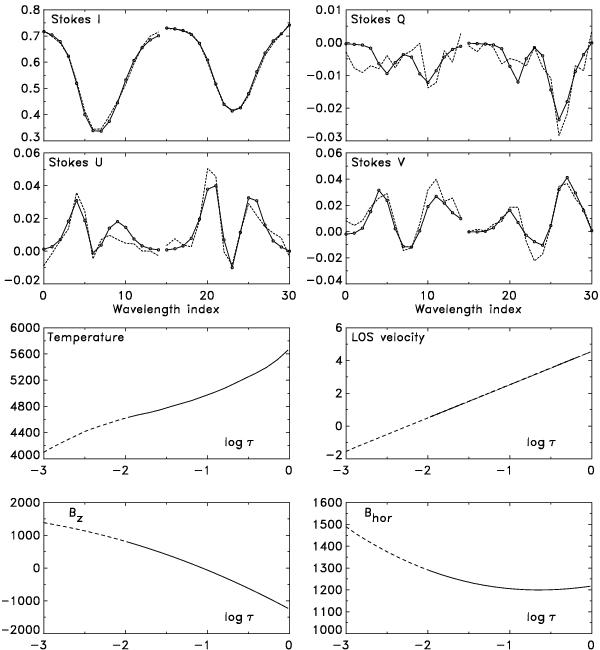

Upper 4 panels: observed (dashed) and fitted synthetic (solid) Stokes profiles from the pixel marked with “+” in Fig. 14. This pixel is adjacent to a spine and associated with a strong redshift (4 km s-1 at τc = 0.95). Note the abnormal Stokes V profile with 3 lobes. The synthetic fitted profile shows the correct shape, but does not reproduce all details of the observed profile. The 630.15/630.25 nm line profiles (plotted side by side) are normalized to the average continuum intensity outside the spot. Lower 4 panels: variations with continuum optical depth of the temperature, LOS velocity, and vertical and horizontal magnetic field (in the solar frame) returned by NICOLE.

This figure is made of several images, please see below:
