Opposite polarity field with convective downflow and its relation to magnetic spines in a sunspot penumbra

G. B. Scharmer; J. de la Cruz Rodriguez; P. Sütterlin; V. M. J. Henriques

doi:10.1051/0004-6361/201220899

Home

All issues

Volume 553 (May 2013)

A&A, 553 (2013) A63

Full HTML

Free Access

Fig. 14

Open with DEXTER Download original image

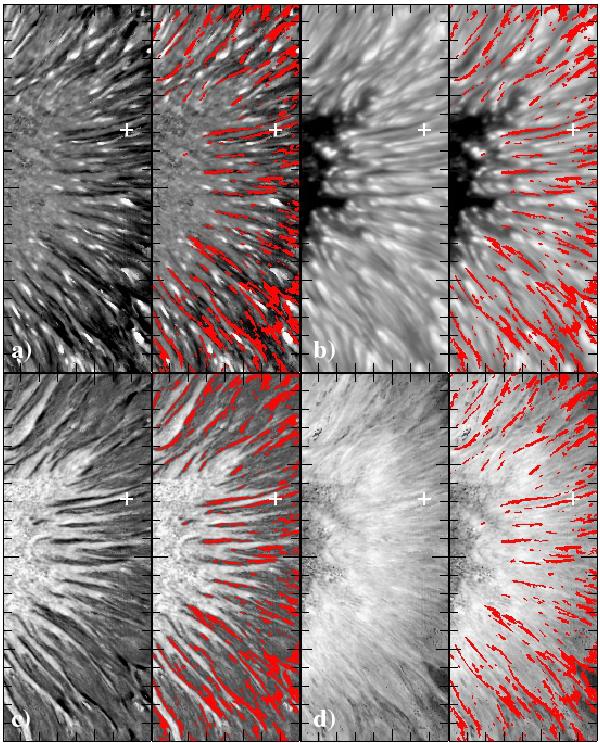

Properties of the limb-side penumbra (excluding the outermost penumbra) at τ_c = 0.95. Pixels with opposite polarity field in the solar frame are indicated with red color. Panel a) shows the LOS velocity (clipped at (− 2.5, 2.5) km s^-1), panel b) the temperature (clipped at (4500, 6500) K), panel c) the vertical magnetic field (in the solar frame; clipped at (− 1000, 2200) G), and panel d) the horizontal magnetic field strength (in the solar frame; clipped at 1500 G. The FOV shown is 8 × 20′′. Tick marks are at 1′′ intervals.
