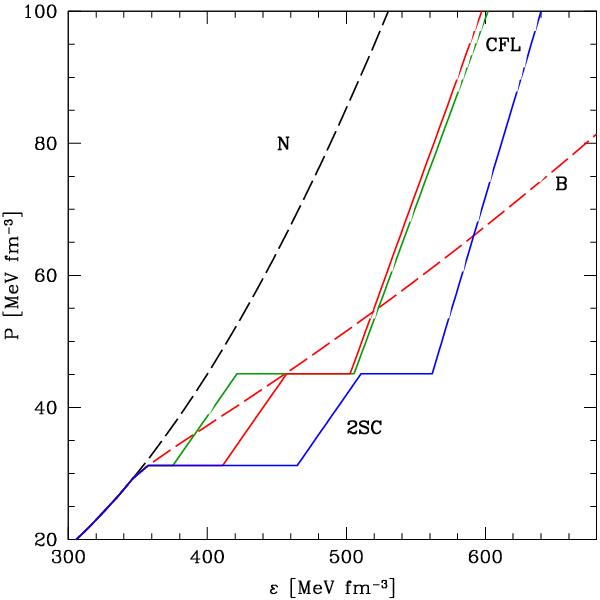

Fig. 3

Examples of EOS.BQ from a continuum { EOS.BQ } emerging from a soft SR EOS. Hadronic EOSs are plotted as dashed lines: N – nucleon EOS; B – nucleons and hyperons. The phase transition B→Q(2SC) takes place at P1 = 31 MeV fm-3, and Q(2SC)→Q(CFL) at P2 = 45 MeV fm-3. The 2SC phase has a2SC = 0.302. Three examples of B → Q(2SC)→Q(CFL) are shown corresponding to following choices of { λ2SC,λCFL,aCFL }: { 1.05,1.2,0.57 }, { 1.15,1.1,0.58 }, { 1.3,1.1,0.7 }. In all these cases the maximum mass is equal to 2 M⊙, i.e., parameters { λ2SC,λCFL,aCFL } lie on the bounding curves in Fig. 7. (This figure is available in color in the electronic form.)
