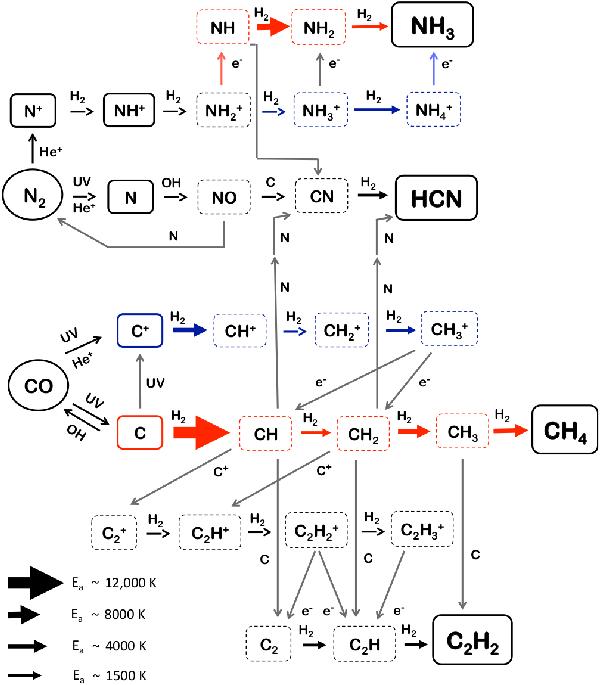

Chemical diagram describing the main reaction routes to form HCN, C2H2, CH4 and NH3 in warm gas in protoplanetary disks or hot cores depending on the radiation fields, temperature and different molecular abundances, adapted from Agúndez et al. (2008). At high temperatures of several hundred K the reaction routes (in red) starting with C reacting with H2 to CH and NH to NH2 dominate over lower temperature chemical routes (in blue) of C+ going to CH+ and NH and NH. The different activation energy (Ea) barriers for the chemical reactions are represented by different types of arrows; the thicker the arrow, the higher the activation energy.
