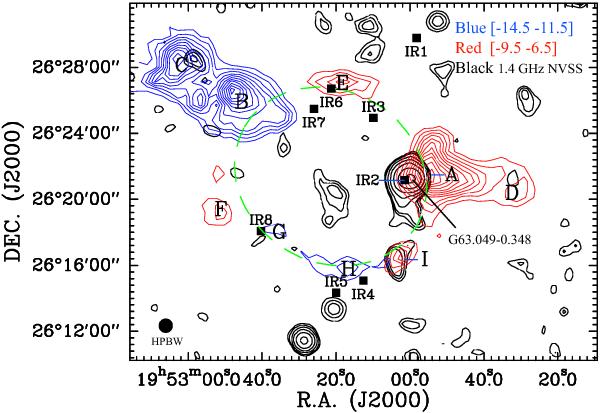

Fig. 6

Integrated intensity contours of the 12CO emission of the blueshifted and redshifted clouds superimposed on the 1.4 GHz NVSS continuum emission contours. The contour levels range from 3.20 to 19.20 by 1.60 K for the blueshifted cloud, and from 3.86 to 23.17 by 1.93 K for the redshifted cloud. The integration range is from −14.5 to −11.5 km s-1 for blueshifted cloud, and from −9.5 to −6.5 km s-1 for redshifted cloud. The contour levels of the 1.4 GHz NVSS continuum emission are 0.95, 1.26, 1.58, 3.16, 6.32, 12.64, 25.29, and 50.58 mJy beam-1. G63.049-0.348 is an HII region. The letters from A to I indicate the positions of nine molecular clumps, and the symbols “■” indicate the positions of IRAS point sources. The green ellipse indicates the position of bubble N131. The beam size of 12CO emission is given in the filled black circle.
