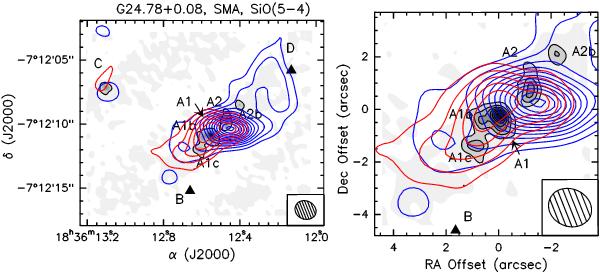

Contour map of blue- and red-shifted SiO(5–4) SMA emission superimposed on the 1.3 mm continuum emission as observed at high angular resolution by Beltrán et al. (2011) using a very extended SMA configuration (). The right panel reports a zoom-in of the central region. The sources of the G24.78+0.08 cluster are labeled following Furuya et al. (2002) and Beltrán et al. (2004, 2011). The SiO emission was averaged over the velocity intervals (+89,+111) km s-1 and (+111,+130) km s-1 for the blue- and red-shifted emission, respectively. The rms 1σ of the SiO maps is 18 mJy beam-1 km s-1. Contour levels range from 5σ by steps of 3σ. The filled ellipse in the bottom-right corner shows the synthesised beam (HPBW): (PA = 67°).
