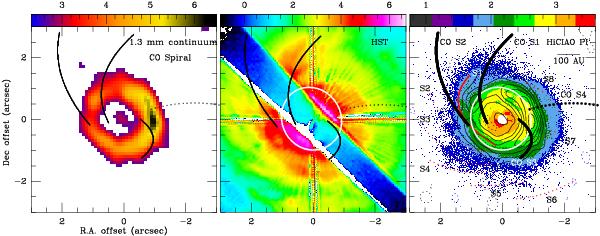

Fig. 10
Left panel: dust continuum at 1.3 mm (color scale) and CO spirals
(black arcs). Middle panel: HST image (color scale) and CO spirals.
The 1.3 mm dust ring is marked as a white ellipse. Right panel:
comparison of 1.3 mm continuum (contours) and the HiCIAO polarization intensity (PI)
image (color scale) at NIR. The black and red arcs mark the CO spirals identified in
Fig. 6 and the HiCIAO arm (Hashimoto et al. 2011), respectively. The S1 arm
is marked as a solid arc, because it is the one with apparent corresponding
CO spirals. The coronagraphic occulting mask of
0
3 diameter is marked as a solid-white
circle.
