Fig. 11

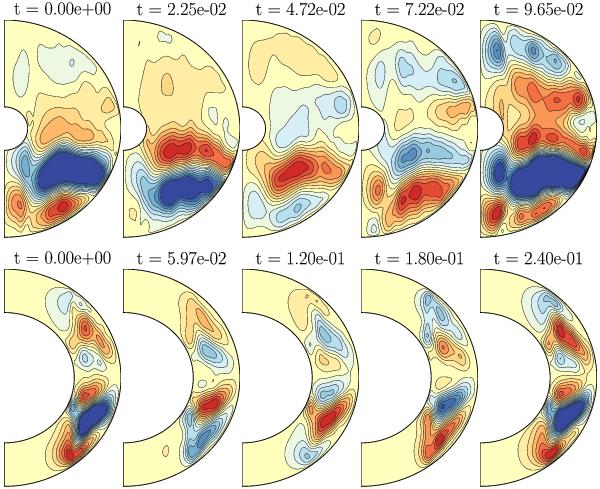

Time evolution of the axisymmetric toroidal magnetic field
for a simulation in a thick shell (η = 0.2, Nρ = 3, Ra = 1.1 × 107, upper panel) and a simulation in a thin shell (η = 0.6, Nρ = 1, Ra = 106, lower panel). Times are given here in magnetic diffusion units. Red (blue) corresponds to positive (negative) values.
