Fig. 15

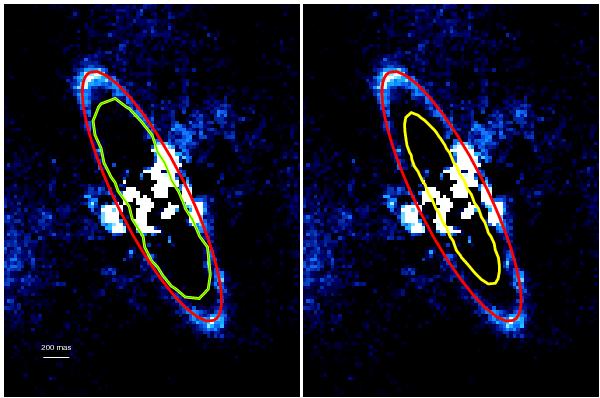

Possible remaining locations of a planet inner to the disk that could produce an inner sharp edge at 77 AU given the present detections limits (left: case of a circular orbit; right: case of an elliptical orbit with e = 0.1). The possible locations are restricted to the region between the yellow curve and the red ellipse that mimics the disk itself. North is up, East to the left.
