Fig. 4

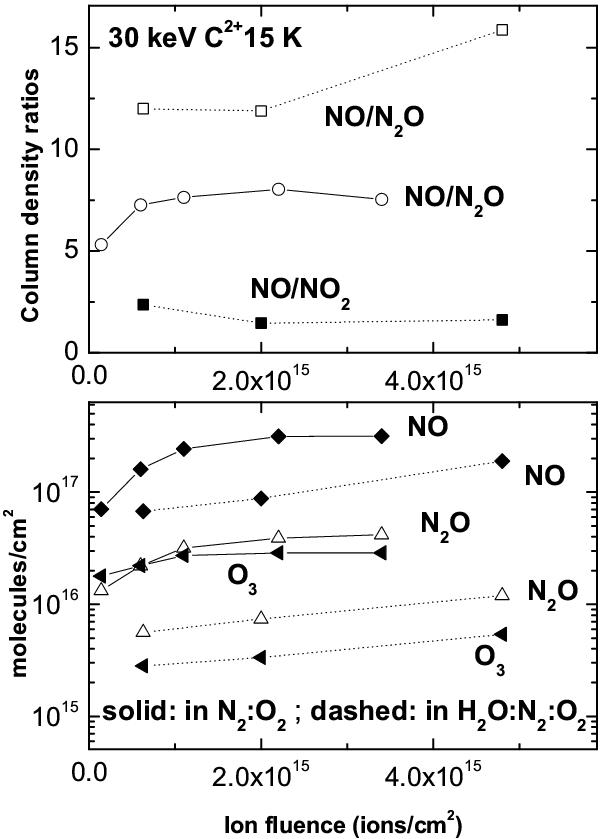

Results relative to nitrogen oxides and ozone formed after implantation of 30 keV 13C2+ ions in different ices. Points connected by solid lines refer to the N2:O2 mixture, those connected by dashed lines refer to H2O:N2:O2 mixtures. Top panel: column density ratios of nitrogen oxides. Bottom panel: column density of nitrogen oxides and ozone.
