Fig. 3

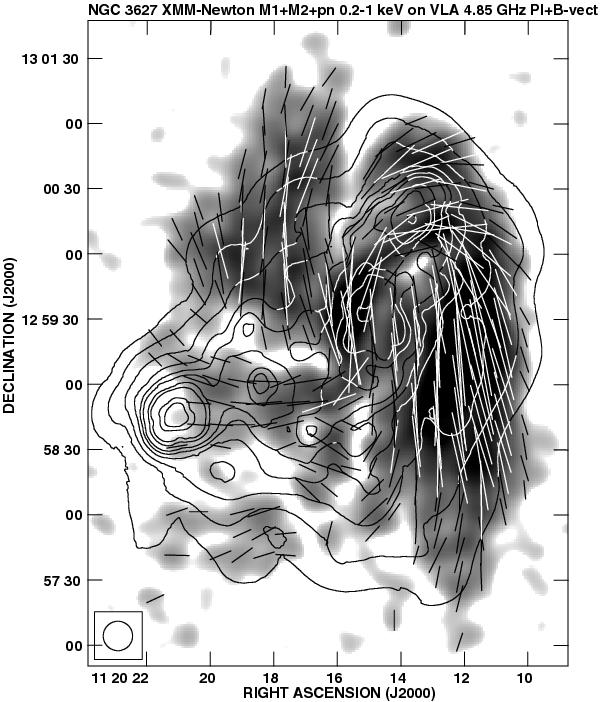

Map of soft X-ray emission from NGC 3627 in the 0.2 − 1 keV band overlaid onto the VLA radio polarization map at 4.85 GHz from Soida et al. (2001). The contours are 16, 25, 40, 60, 80, 100, 150, 200, 500, 1000  ×  rms. The map is adaptively smoothed with the largest scale of 30″. The beam of the radio map is shown in the upper right corner of the figure. A magnetic field vector of a length of 1′ corresponds to radio polarized intensity of 0.25 mJy/b.a. The gray scale radio polarized map is cut at the 3σ level.
