Fig. 14

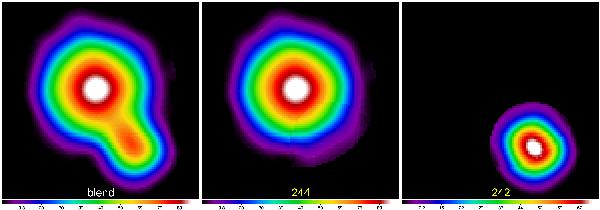

Deblending overlapping sources (Sect. 2.6). Background-subtracted overlapping sources at 350 μm (left) are separated into two individual sources, cataloged under the numbers 244 and 242 (middle, right). This blended pair is clearly visible half-way north from the field centers in Figs. 2, 3, 7, 9, 17, 18; the annulus around the source 244 is highlighted in Fig. 16. Comparison with the known true model parameters shows that the peak intensities measured for these deblended sources are in error by  − 1.1% and  − 5.1% and the total fluxes were calculated with errors of  − 0.5% and  − 12%, respectively. The color coding is a linear function of intensity in MJy/sr.

This figure is made of several images, please see below:
