Fig. 3

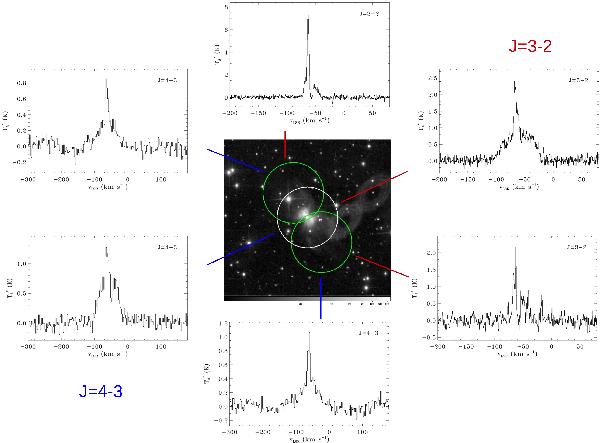

Circles as wide as the APEX beam at 345 GHz are centered on our pointing coordinates: a white circle indicates the central pointing and two green circles indicate the two pointings 10′′ offset. The I-band background image of I15452 was retrieved from the HST archive (north up and east left). Red bars indicate the spectra obtained for the J = 3−2 CO line and blue bars those for the J = 4−3 line.
