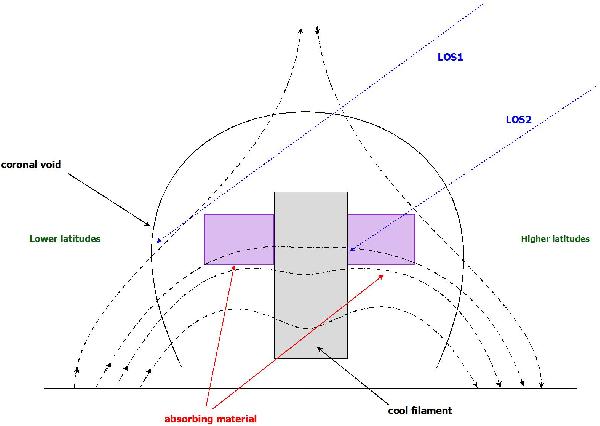

Fig. 12
Filament and its environment in a plane perpendicular to the horizontal photosphere and to the main axis of the filament. The dot-dashed lines tentatively trace the magnetic field. Depending on the line of sight, the absorbing material next to the filament is visible (LOS2) or can be hidden (LOS1); in this case the edge of the filament appears to be sharp. See also Fig. 4 of Schwartz et al. (2004).
