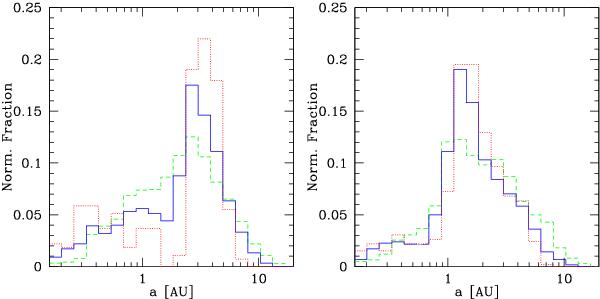

Fig. 12


Distribution of final semimajor axes of synthetic planets larger than 300   M, as a function of metallicity. In both panels, the red dotted lines are for [Fe/H]  <  −0.2, the blue solid lines for  −0.2 <  [Fe/H]  < 0.2, and green dashed lines for [Fe/H]  > 0.2. The left panel is the nominal population, while the right panel is a population where aice = 2.7 AU fixed for all initial conditions. Hot planets (a ≲ 0.1 AU) are not shown in this figure.

This figure is made of several images, please see below:
