Fig. 4

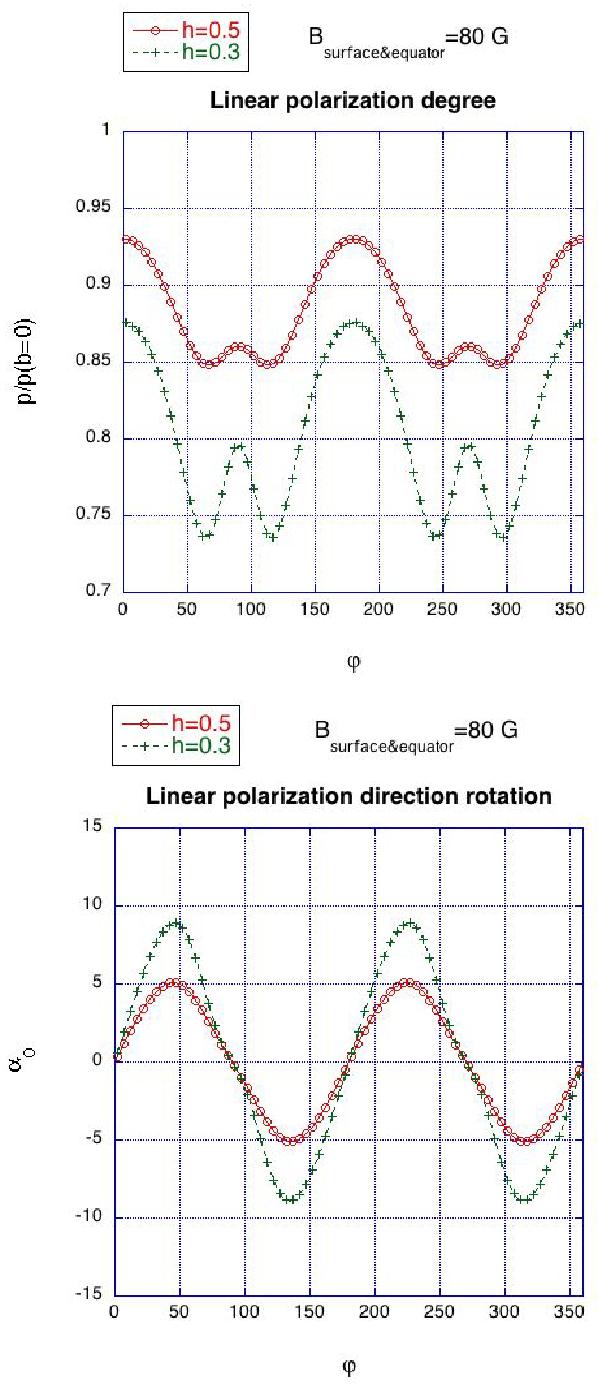

Solar case: Lyα linear polarization degree (top) and direction (bottom) for two apparent heights above the solar limb (in solar radius), as a function of the position angle of the line-of-sight with respect to the sun rotation axis. This figure replaces Figs. 4 and 5 of Derouich et al. (2010).

This figure is made of several images, please see below:
