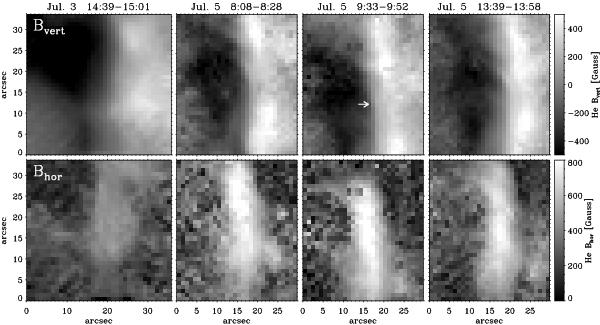

The gray-scale images indicate the two components of the magnetic field strength inferred from the ME inversions of the He i 10 830 Å triplet. The upper/lower four panels show the vertical (B_vert)/horizontal (B_hor) fields in the local frame of reference. All images in the same row have the same intensity scale. Vertical and horizontal fields are saturated at  ± 500 G and 800 G, respectively. Both polarities are close together and the PIL is only a few arcseconds wide in all panels. The white arrow indicates the location of the Stokes profiles shown in Fig. 9.
