Fig. 9

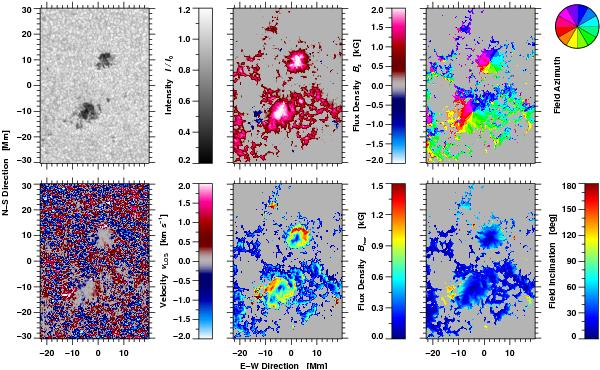

Maps of physical parameters derived using SIR-code for Hinode/SP scan on 2010 November 18 (from top-left to bottom-right) normalized intensity I/I0, vertical component of magnetic flux density Bz, magnetic field azimuth φ, Doppler velocity vLOS, horizontal component of magnetic flux density Bhor, and magnetic field inclination γ.
