Structure of the pre-outburst accretion disk in SS Cygni

Free Access

Fig. 6

Open with DEXTER Download original image

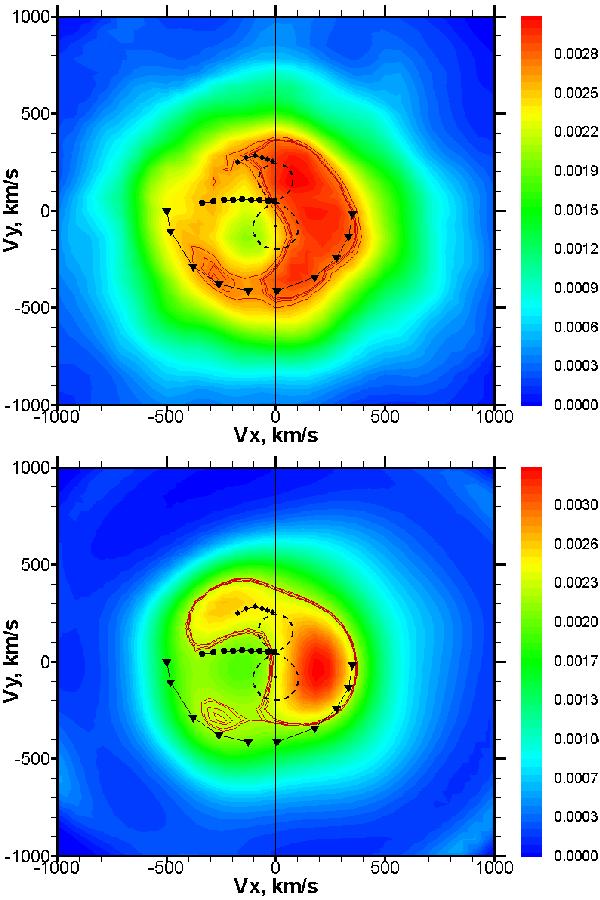

Doppler tomograms in the H_β line. The upper panel is computed using the data of August 2006, while the lower panel is computed using the new data. Markers are the same as in Figs. 2 and 5. Certain isolines are plotted to select regions of tidal shock (lower left quadrants of the tomograms).
