Fig. 8

thumbnail

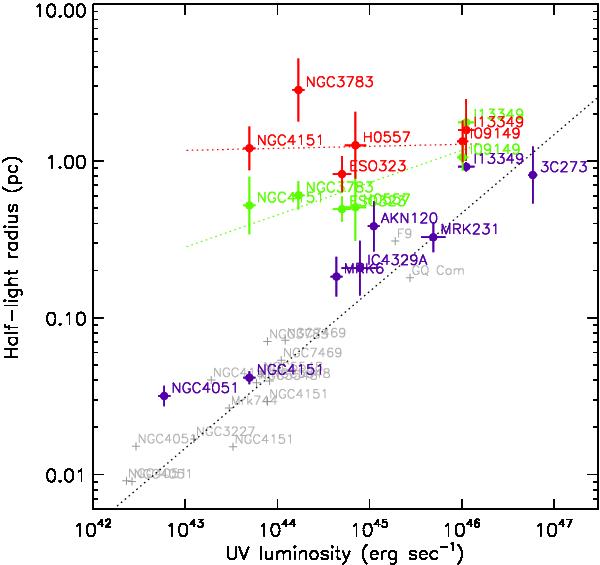

Half-light radii R1/2 in pc (red and green for 13 and 8.5 μm, respectively), plotted against UV luminosity L, which is defined as 6 νLν(5500 Å) (Kishimoto et al. 2007). The red and green dotted lines are power-law fit to R1/2 at 13 μm (∝ L0.01 ± 0.07) and 8.5 μm (∝ L0.21 ± 0.05), respectively. In this physical scale, these mid-IR radii increase with luminosity much slower than L1/2, or almost constant at 13 μm. Thin-ring radii at 2.2 μm also in pc are plotted in purple for the KI-observed sample. Plotted with gray plus signs are the near-IR reverberation radii (Suganuma et al. 2006 and references therein), with the black dotted line showing their L1/2 fit. This fit is the definition of the inner radius Rin in this paper.
