Fig. 9

thumbnail

Open with DEXTER Download original image

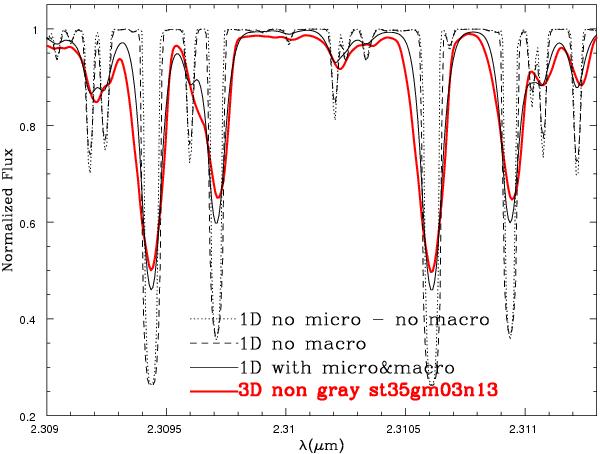

Example of CO first overtone lines computed for the 3D non-gray simulation and the corresponding 1D MARCS model of Table 2. The ξmic turbulent velocity used is 1.5 km s-1 and the ξmac is 6.4 km s-1 with a radial-tangential profile (see Table 3).
