Fig. 7

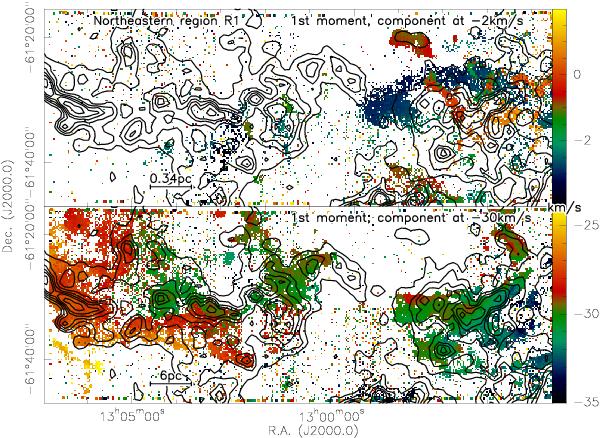

Compilation of 13CO(2–1) 1st moment maps toward the northeastern region R1 as marked in the panels. The top and bottom panels show the –2 and –30 km s-1, respectively. The thick contours outline the extinction from Kainulainen et al. (2009) in 1 mag steps starting between Av of 5 and 9 mag plus additional contours at 11 and 13 mag. Linear scale-bars are shown in the bottom-left corner of each panel.
