Fig. 2

thumbnail

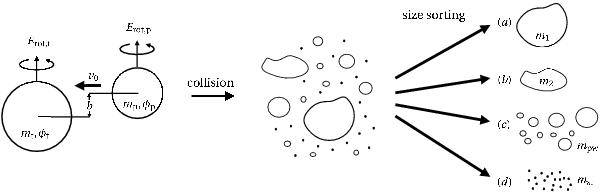

Illustration of the four-population model. The left side displays the situation before the collision: two pre-planetesimals collide with impact velocity v0 and impact parameter b. The target and projectile are characterised by their defining quantities, e.g., mass m, filling factor φ, and rotational energy Erot. Depending on these parameters, an outcome population is generated in the collision (middle). The four-population model distinguishes the fragments according to their mass. The population classes are: a) the largest fragment; b) the second largest fragment; c) the power-law population; and d) the sub-resolution population. This categorisation is sufficient to describe the outcome types of Fig. 1 as well as intermediate outcomes.
