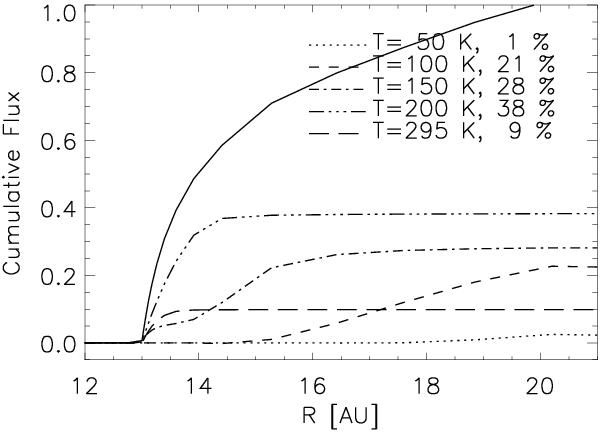

Fig. 9
Cumulative radial contribution of emission of the forsterite 69 μm feature for model R20. The total flux is scaled to one. The solid line marks the total integrated flux, the dashed and dotted lines mark the contributions of the different temperature components to the integrated flux.
