Fig. 6

thumbnail

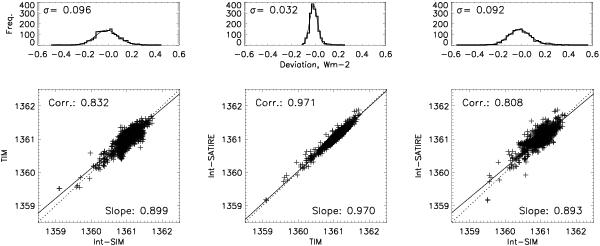

Regression plots for left: Int-SIM vs. SORCE/TIM, centre: Int-SATIRE vs. SORCE/TIM and right: Int-SIM vs Int-SATIRE. Here Int-SIM and Int-SATIRE have had an additive constanst applied to bring their irradiance levels into line with TIM (see Table 2). Axes in the regression plots all have units of W m-2. Above the regression plots are histograms of the spread about the regression lines. A Gaussian is fit to the histograms and the standard deviation of the Gaussian is presented in the top left.
