1. Introduction

1.1. Motivation

Relativistic particle populations, cosmic rays (CR), are expected to permeate the intra-cluster medium (ICM). Cosmic ray electrons (CRe) are directly visible in many galaxy clusters via their radio synchrotron emission, forming the so-called cluster radio halos (e.g. Kempner et al. 2004; Feretti et al. 2004b). Several CRe injection sites can also be identified via the same synchrotron radiation mechanism: winds and gas stripping from cluster galaxies, active galactic nuclei, and shock waves from structure formation. All these should also be injection sites for CR protons (CRp) and heavier relativistic nuclei. Due to their higher masses with respect to the electrons, protons and nuclei are accelerated more efficiently. In our own Galaxy, the ratio of the spectral energy flux of CRp to CRe between 1...10 GeV is about one hundred (Schlickeiser 2002). Similar ratios are also expected at least for the injection from galaxies and structure formation shock waves for the same kinematic reasons.

Cluster CRp should have accumulated over cosmic timescales since the bulk of them is unable to leave through the persistent infall of matter onto the cluster and due to the long CRp’s radiative lifetimes in the ICM of the order of an Hubble time (Völk et al. 1996; Enßlin et al. 1997; Berezinsky et al. 1997). CRe suffer much more severe energy losses via synchrotron and inverse Compton emission at GeV energies, and Bremsstrahlung and Coulomb losses below 100 MeV. CRe with an energy of  ~10   GeV emit GHz synchrotron waves in μG-strength magnetic fields. Since the associated inverse Compton and synchrotron cooling time is τ_IC,syn ~ 2 × 10⁸ yr, these CRe must have been recently injected or re-accelerated, whereas any CRp can be as old as its cluster. Since CRp should be abundant and are able to inject relativistic electrons via the production of charged pions in hadronic interactions with gas nuclei, they could be the origin of the observed radio halos¹. Alternatively, a low energy (100 MeV) CRe ICM population might be sufficiently long lived if it is maintained by re-acceleration by plasma waves against cooling processes. During the phases of high ICM turbulence after cluster merger the re-acceleration might be so efficient that CRe are accelerated into the radio observable energy range of  ~10 GeV².

For both particle populations, CRp³ and CRe, which we address commonly as CR, the question is what spatial and spectral shape they have acquired? This will largely determine which radiative signatures and which dynamical influences we can expect from their presence.

Without continuous injection of CRe, their spectra should be highly curved, due to the severe energy losses relativistic electrons suffer from, both at the high and low end of their spectra. If not replenished, or sufficiently re-accelerated, the CRe population should disappear in the cluster center after a time of about a Gyr. Thus, the CRe visible in the radio halos should be spatially close to their injection or last re-acceleration site.

At energies above a few GeV, the injected CRp power law spectra are unaffected by hadronic and adiabatic losses, only the normalisation of the spectra evolves (e.g., Miniati 2001; Enßlin et al. 2007; Pinzke & Pfrommer 2010). The spatial distribution, however, may be strongly affected by transport processes. Also local spectral modifications can be expected if the macroscopic transport mechanism depends on the CR energy. Although the CRp travel close to the speed of light, the ICM magnetic fields of G) force them on helical orbits along the field lines, and resonant scattering events with plasma waves will try to isotropise the CR momentum distribution rapidly. Thus CRp are tied to the fields and their transport is strongly controlled by the magnetic and turbulent properties of the ICM.

In addition to the radiative signatures of CRs in the radio and gamma ray bands, CRs can store significant amount of energy, which they preferentially release in the centers of clusters due to the higher target density there and because of the adiabatic losses they suffer when they propagate to the cluster outskirts. Thus, CRs were proposed to help to stabilise cluster cool cores against a cooling instability⁴. The spatial distribution of the CR population, as shaped by transport processes, as well as the energy absorbed and released during advective and streaming transport are of direct importance for this. Three transport processes are relevant here:

• Advection: The magnetic field lines are largely frozen into thethermal plasma of the ICM and are dragged with any gas flow. Theenclosed CR are advected with this flow and suffer energy lossesor gains from any adiabatic expansion or compression of the flow,respectively.

• Diffusion: A CR may travel several gyro-radii along a field line before it is resonantly scattered by plasma waves of the medium. The resulting random walk along the field line leads to a considerable diffusion parallel to the field lines. Since the gyro center of the particles are displaced in the plasma-wave interaction, a small perpendicular diffusion results. This leads to a larger macroscopic displacement from the original magnetic field line when the particles follow the diverging path of this initially neighboring line. The CR diffusion coefficient generally increases with the particle energy.

• Streaming: In the presence of a sufficiently large gradient in the spatial CR distribution along a field line, an anisotropic momentum distribution function builds up, since more particle arrive at such a location from one side than from the other. This leads to a net CR flux towards the CR depleted region. The streaming of the CR with respect to the thermal ICM excites plasma waves, on which the particles scatter. This limits the streaming velocity of CRs to be of the order of the Alfvénic or the sound speed, depending on the plasma properties.

Advection is a passive form of transport, which is actually included in many of the numerical simulation schemes for CRp in the large-scale-structure⁵. Diffusion and streaming are active propagation processes, relying on the own speed of the CR. Inclusion of CR diffusion exists for some MHD codes⁶, which are, however, not suited for large-scale-structure simulations. To our knowledge, CR streaming is not implemented in any of the simulation codes used in astrophysics. Thus, the effects we discuss in this paper concern physics, which is not captured in current numerical simulations of galaxy clusters.

1.2. Goal and outline

With this paper, we want to discuss the possible effects CR propagation has on the spatial and spectral distribution of CR in galaxy clusters and their radiative signatures in gamma-rays and radio frequencies. At this stage of the research, without the necessary cosmological simulation tools including simultaneously CR propagation and magnetic field evolution at hand, it is not possible to make definite predictions, due to the complexity of the interaction of turbulent ICM gas with CR and magnetic fields. Our goal here is to outline plausible scenarios, which highlight the potential importance of CR propagation, and thereby motivates further research and hopefully lead to the development of the necessary simulation tools.

A strong motivation for such developments should be the fact that CR propagation can explain the observed bimodality of cluster radio halos within the hadronic radio halo model. Since all necessary ingredients of this model, as CRp shock acceleration, a long CRp cooling times, the processes of hadronic e^± production and e^± synchrotron losses, as well as the required field strength of a few μG, are known to be given in typical ICM environments, this model is very natural, nearly free of assumptions and therefore attractive. The main counter-argument, that not every cluster exhibits a radio halo, is alleviated if CR propagation is operative in the ICM as argued here. However, also radio halos in the CRe re-acceleration model should strongly benefit from propagation effects. The low energy CRe population, which is re-accelerated to explain radio halos in these models, is probably thermalised in the cluster centers due to Coulomb energy losses during quiet phases of the cluster, when re-acceleration is weak. However, CRe can survive for Gyrs in the outskirts of clusters during such phases, and being dragged into the core during later turbulent merger phases. Then, the required turbulent re-acceleration is also present, in order to power a radio halo in the re-acceleration model. Also for this model, the observed radio bimodality of clusters should partly result from the interplay of the CRe transport mechanisms.

The outline of this work is the following. In Sect. 2, we first introduce radio halos, their connection to the dynamical state of clusters, and the strength and weaknesses of the two main theoretical scenarios used to explain them. Then we discuss in Sect. 3 typical conditions of the turbulent ICM and their implications for CR transport processes and the implied adiabatic energy gains and losses. The consequences for non-thermal cluster emission in the gamma-ray and radio spectral bands as well as the potential heating of cool cores are investigated in Sect. 4. Finally we conclude in Sect. 5.

2. Radio halos

2.1. Observational properties

Fig. 1 Correlation of radio halo luminosities with cluster properties of clusters in Table 1. Left: radio halo luminosity vs X-ray luminosity. Right: radio halo luminosity vs central entropy indicator K0 for the subsample of clusters for which high resolution Chandra data are available.

Fig. 2 Cooling time of CR in the ICM as a function of their kinetic energy. Left: CRe cooling times for typical densities and magnetic field strength that range from the central to the peripheral regions in galaxy clusters. Coulomb and IC/synchrotron cooling is modeled following Gould (1972b) and Rybicki & Lightman (1979), respectively. Right: CRp cooling times for the same densities. Coulomb cooling is modeled following Gould (1972a). The hadronic cooling time above the kinematic threshold for pion production is τpp = 1/(0.5   σpp   nN   υCR) with σpp = 32   mbarn, an inelasticity of  ~50% and υCR the CRp velocity. It is apparent that CRp above 10 GeV have livetimes in the ICM at least 60 times longer than CRe at any energy. CRe can survive for a Hubble time without re-acceleration only within the dilute outskirts of clusters. The radio emitting electrons have an energy of about 10   GeV in μG fields, and therefore a lifetime of 0.1 Gyr or less. If they are of hadronic origin, their parent CRp had energies of about 100 GeV, which have considerable longer lifetimes.

Cluster radio halos are our primary evidence for the existence of CR in galaxy clusters. They are spatially extended regions of diffuse radio emission, which have regular morphologies, very much like the morphology of the X-ray emitting thermal ICM plasma. Their radio synchrotron emission is unpolarised, due to the contribution of various magnetic field orientations along the line of sight, and Faraday rotation de-polarisation. A compilation of radio halo luminosities and X-ray properties of their hosting clusters can be found in Table 1 and Fig. 1.

Cluster radio halos have to be discriminated from cluster radio relics (for taxonomy see Kempner et al. 2004). Relics are also extended, but often located at the cluster periphery of galaxy clusters. They show an irregular morphology and are often significantly polarised. As halos, they appear preferentially in clusters exhibiting signs of merging activity. A halo and relic can appear in the same cluster⁷, or even two relics simultaneously have been observed⁸. Relics are believed to trace merger and accretion shock waves, either due to direct particle acceleration via the Fermi-I mechanism⁹, or due to the revival of old radio cocoons of radio galaxies via compression¹⁰. Multi relic formation emerges naturally in numerical models of structure formation shock accelerated CR electrons (Roettiger et al. 1999a; Miniati et al. 2001a).

Radio halos and relics are preferentially found in clusters showing signs of merger activity¹¹. Radio halos are a larger mystery than relics. Since the radiating CRe are short lived (0.1 Gyr, see Fig. 2) they have to be replenished or re-accelerated in-situ. Two classes of models are currently under discussion, the hadronic and the re-acceleration model. A combination or coexistence of their underlying processes might be in operation in clusters, as the re-accelerated CRe could be injected by hadronic CRp-gas interactions (Brunetti & Blasi 2005). However, this requires some fine-tuning of parameters ¹² and it is more likely that one process is responsible for most of the radio halo emission and the other process is subdominant. Alternatively, different regions of the same halo could be generated by the two different mechanisms. Pfrommer et al. (2008) proposes that the central part of cluster radio halos is hadronic due to the high target density there, whereas at the outskirts shock waves have higher Mach numbers and can provide Fermi I acceleration.

Cluster radio halos come in two sizes: cluster wide and therefore giant radio halos and radio mini-halos. The former are predominantly found in clusters showing merger activities whereas the latter are found in very relaxed clusters which developed a cool core, which harbors the mini-halo. The radio luminosity of giant halos seems to be strongly correlated with the X-ray emissivity of the cluster (Liang et al. 2000; Brunetti et al. 2009,and see Fig. 1). The radio luminosities of the mini-halos also seem to correlate in the same way with the cluster X-ray luminosity, which itself is usually dominated by the cool core emission.

A large fraction of clusters do not exhibit significant radio halo emission of any kind, and only upper limits to their synchrotron flux are known. About half of the radio deficient clusters, for which we have Chandra data, show clear evidence for some level of cool core structure (K₀ ≲ 50   keV   cm²) as can be seen in Fig. 1. This could either imply that these clusters are in the intermediate state between having giant radio halos because of merging activity and having mini halos due to strongly developed cool cores. On the other hand there could be two populations of clusters – cool cores and non-cool cores – and the corresponding radio luminosity responds sensitively to the level of injected turbulence by either AGN or cluster mergers, respectively.

Therefore, clusters at the same X-ray luminosity seem to be bimodal with respect to their radio luminosity. Either they have a prominent halo or they do not exhibit any detectable diffuse radio halo emission. This indicates the existence of pronounced and rapidly operating switch-on/switch-off mechanisms, which are able to change the radio luminosity by at least a factor of 10 − 30 (Brunetti et al. 2009). Such a mechanism is easily realised in the re-acceleration model of halo formation, due to the short cooling time of the radio emitting electrons, which just cool away once turbulence is unable to maintain them. It is less easily realised in the hadronic model via magnetic field decay after turbulence as proposed by Kushnir et al. (2009) and Keshet & Loeb (2010), since the turbulent decay takes about a Gyr and the magnetic field decay is relatively gentle (Subramanian et al. 2006). In addition, this argument appears weak because μG strong magnetic fields are commonly observed in clusters without diffuse radio emission (Clarke et al. 2001).

However, the assumption that clusters evolve only vertically on the L_ν − L_X plane, as it is the basis of the above argumentation on bimodality, is probably incorrect. The central entropy of many of the radio halo deficient clusters is low, indicating that they host or are forming a cool core. Cool cores tend to dominate the X-ray luminosity of clusters. Therefore, also a strong horizontal evolution in this plane can be expected once the radio halo luminosity decreases as the cluster relaxes after a merger. Radiative cooling in the central cluster regions increases the gas density and therefore the X-ray luminosity while it also decreases K₀. This alleviates the requirements on the speed and the magnitude a radio halo switch mechanism must fulfill in order to explain the observations.

Nevertheless, such a mechanism is probably needed to understand the observational data. It has to full-fill two requirements: it should be able to extinguish a radio halo, but also not prevent it from being switched on again later, otherwise we would not observe halos in the present universe. The mechanism we are discussing in this work is actually able to switch radio halos on and off in both models, the hadronic and re-acceleration model. Since both have their individual strengths and weaknesses in explaining the different observational features of radio halos, we want to briefly discuss those first.

2.2. Hadronic models

In the hadronic model the accumulated CRp inject continuously the radio emitting CRe into the ICM due to the well known hadronic process , (see footnote ¹ for references). The CRe loose their energy nearly instantaneously (see Fig. 2) and therefore the radio emission traces a combination of the CRp population, the distribution of the target gas density, and the magnetic field profile of the galaxy cluster in the case of weak magnetic field strengths B < B_cmb = 3.27   (1 + z)²   μG (z being the redshift) and without magnetic field dependence in the strong-field case.

The hadronic model has a number of advantages:

• Since CRp are expected to be present in the ICM due to structureformation shock waves, active galactic nuclei, and the depositionof interstellar media of galaxies, radio halos emerge verynaturally in these models.

• Also the observed power-law spectra of many radio halos (e.g. in the Bullet cluster, Liang et al. 2000) emerge naturally, since they reflect the power-law spectra of CRp acceleration.

• The observed smooth, regular morphology of halos is also expected in hadronic models, since the long lived CRp had enough time to become distributed within the cluster volume (Miniati et al. 2001b; Miniati 2003; Pfrommer et al. 2008).

• The observed correlation of radio halo luminosity with X-ray luminosity (L_ν − L_X relation, see Fig. 1) of clusters with halos holds within these models for plausible magnetic field values and CRp acceleration efficiencies (Dolag & Enßlin 2000; Miniati et al. 2001a; Pfrommer 2008; Keshet & Loeb 2010).

• Also the correlation of radio halo surface brightness with X-ray surface brightness of clusters with halos holds roughly for sensible magnetic field profiles and CRp acceleration efficiencies. (However, Govoni et al. 2001a, find that the naively expected radio halo profile does not seem to fit the observed asymptotic in case of weak magnetic fields (B < 3   μG).)

However, there are also a number of issues with the hadronic model:

• About two thirds of the most X-ray luminous clustersdo not exhibit radio halos, whereas the hadronic modelseems to suggests that all clusters exhibit halos (Miniatiet al. 2001a; Miniati 2003; Pfrommer 2008; Pinzke& Pfrommer 2010). [This problem will be ad-dressed and alleviated by this work.]

• The curvature in the total spectrum claimed for the Coma cluster radio halo (Brunetti et al. 2001) are not reproduced in current numerical models of the hadronic scenario. [However, the particle transport in these models neglects diffusion and streaming which is potentially important. In addition, the high frequency observations of the steep spectrum radio halo, on which this claim rests, are extremely difficult, since point sources much brighter than the diffuse radio halo itself have to be subtracted, and the sensitivity to large scale emission of radio interferometers is reduced at higher frequencies. Thus the curvature might be partly a fluke, as also some inconsistencies of flux measurements at the same frequencies in this spectrum indicate (see 0.4 and 1.4 GHz fluxes reported in Thierbach et al. 2003).]

• Spectral steepening at the edges as proposed by some observations (Brunetti et al. 2001; Feretti et al. 2004a) can not be explained. [However, the observational arguments above are even more severe for this. In addition, the negative flux of the Sunyaev-Zel’dovich decrement of clusters affects the spectrum especially hard in the outskirts, and also provides some bending to the total spectrum (Enßlin 2002; Pfrommer & Enßlin 2004b). Finally, energy dependent CRp transport would create such spectral variations, as argued in this work.]

The hadronic model makes one hard prediction, which hopefully will permit its confirmation or rebuttal at some point in the future. The radio halo emission should always be accompanied by some level of gamma-ray flux, due to the hadronic production of neutral pions and their decay into gamma-rays, p_CR + p → π⁰ + ... → 2   γ + ... The current upper limits on diffuse gamma-ray flux from cluster of galaxies by the Fermi collaboration (Ackermann et al. 2010) are still well above the predictions of expected fluxes, even for the most optimistic assumptions about the CR acceleration efficiency (Pinzke & Pfrommer 2010) or by tying the expected gamma-ray emission to the simulated radio halo emission for reasonable assumed magnetic field strengths (Donnert et al. 2010a,b). They are far off the minimal gamma-ray flux expected in the limit of strong magnetic field strength ( ≫ 3μG; Pfrommer 2008; Aleksić et al. 2010). Brunetti (2009) and Jeltema & Profumo (2010) argue that unusually strong ICM magnetic fields would be required by the hadronic model for radio halos with reported steep radio spectra (e.g. Abell 1914, 2256). However, this is only true if the CRp spectra can be extrapolated from the radio emitting energies (~100 GeV) into the subrelativistic regime (<1 GeV) without any spectral break as assumed by these authors.

2.3. Re-acceleration models

In re-acceleration models, a pre-existing CRe population at lower energies of about 0.1–10 GeV gets re-accelerated into the radio emitting regime of about 10 GeV by plasma waves (see references in footnote ²). These are generated by the turbulence during and after a cluster merger event. Some level of re-acceleration has to happen most of the time or frequently enough in order to prevent the CRe population in the cluster center from loosing its energy completely due to Coulomb losses on a timescale of about 1 Gyr.

Also the re-acceleration model has its advantages:

• the bimodality of radio halo luminosities is explained in thismodel by the presence and decay of the re-acceleratingturbulence in merging and relaxed clusters, respectively(Brunetti et al. 2009);

• CRe are expected to be accumulated in the ICM due to injection by radio galaxy outflows (Giovannini et al. 1993) and acceleration at shocks, if some level of continuous re-acceleration can prevent them from thermalisation;

• diffusive re-acceleration is a natural plasma process, which must occur in turbulent astrophysical environments as clusters (Schlickeiser et al. 1987);

• the complex morphologies reported for some radio halos come naturally about due to the effect of intermittency of turbulence (Feretti et al. 2004a);

• significantly curved radio spectra are also very natural, since the interplay of acceleration and cooling produces spectral bumps and cut-offs (Feretti et al. 2004a; Brunetti & Lazarian 2007, 2011);

• the L_ν − L_X relation holds also for reasonable magnetic fields (Cassano et al. 2007).

The issues with the re-acceleration model are:

• Second order Fermi acceleration is known to be very inefficientsince the efficiency scales with(υ_wave/c)² ≪ 1. The acceleration efficiencies used in the re-acceleration models are difficult to be derived from first principles and are often fit to reproduce the observations (e.g. Brunetti et al. 2001, adopt the magnetic field profile to match their re-acceleration profile). [However, magnetosonic turbulence may be more efficient, and could provide sufficient re-acceleration if the compressible turbulence is of the required strength. Brunetti & Lazarian (2007, 2011) show that a compressible wavefield of 15–30% of the thermal energy content of the cluster, reaching down to small scales with a Kraichnan-scaling, would be sufficient. It should be noted here that Fermi I acceleration at ICM shock waves is also a promising re-acceleration mechanism.]

• The maximal cooling time of CRe is τ_e ~ 1   Gyr   (n_e/(3 × 10^-3   cm^-3)) (see Fig. 2). Without replenishing the 100 MeV-seed population of CRe, the re-acceleration would not be able to generate 10 GeV CRe that radiate GHz radio waves. Either continuous injection or re-acceleration of the short-lived central CRe population is needed to counteract cooling or a process that moves CRe inwards without much losses from the dilute outer cluster regions where the cooling time approaches the Hubble time. [This problem will be addressed and alleviated by this work.]

• Any re-acceleration mechanism is unable to discriminate between CRe and CRp at GeV energies. In case re-acceleration operates, the CRp population gains more than the CRe population in the long run, due to the much lower losses. Given that the injection efficiency of CRp by shock waves is expected to be hundred times higher than the CRe one, the re-accelerated CRe can easily be outnumbered by hadronically injected CRe. [However, the possibility exists that the CR population is dominated by injection of radio plasma, which might contain mostly CRe.]

• The natural curvature of re-acceleration radio spectra requires fine tuning to reproduce the observed power-law radio spectra seen in some radio halos. [However, a detailed statistics of the radio halo spectral slopes that includes statistical and systematic uncertainties is not published yet.]

• The regular morphology of many radio halos might also be a challenge to the re-acceleration model, since turbulence and therefore re-acceleration is expected to be intermittent. [However, detailed numerical simulations of the expected morphologies are not yet published.]

The hardest prediction of the re-acceleration model so far is that low X-ray luminous clusters should not exhibit radio halos (Cassano et al. 2006, 2008). This prediction will become testable with upcoming sensitive radio telescope arrays.

3. Cosmic ray transport in galaxy clusters

3.1. Cluster weather conditions

The atmospheric conditions in galaxy clusters differ strongly depending on the time elapsed since the last cluster merger event. During a cluster merger, bulk velocities close and above the sound speed of c_s ≈  1000–2000 km s^-1 are injected on scales of a few  × 100 kpc. A fair fraction of this energy goes into turbulent motions, which can account for 10–20% of the thermal pressure of the ICM (Schuecker et al. 2004; Paul et al. 2011). A good fraction, however, is directly dissipated in shock waves, mostly in the cluster center, however with the highest Mach number shock waves and therefore the most efficient CR acceleration sites appearing in the cluster outskirts (Miniati et al. 2000; Pfrommer et al. 2006, 2008).

The cluster turbulence persists for about a Gyr, partly because the turbulent decay of eddies takes several eddy turn over times to transport the kinetic energy to dissipative scales, partly because the gravitational drag of the merging dark matter halos continues to stir turbulence for some time¹³.

As the turbulence decays, the cluster atmosphere settles into a stratification with the lowest entropy gas at the bottom and higher entropy gas at larger radii. The turbulence may become more two-dimensional, since all radial motions are working against gravitational and/or pressure forces. If the cluster becomes sufficiently quiet, thermal instabilities might set in due to heat flux along magnetic field lines, rearranging the field in preferentially radial orientation as predicted by the magneto-thermal instability (Balbus 2000; Parrish & Stone 2007; Parrish et al. 2008; Pfrommer & Dursi 2010).

At the dense cluster center, X-ray cooling could become catastrophic due to the onset of a cooling instability. However, the developing cool cores seem to be stabilised against a complete collapse by energetic feedback from the central galaxy in form of AGN outflows (e.g. Churazov et al. 2002) or supernovae driven winds, both fed by condensing gas from the cooling region. Since cool cores have temperatures of only a few keV, their sound speed is below 1000 km s^-1. The turbulence, which is most likely subsonic there, will therefore only have a speed of a few 100 km s^-1 there (Fabian et al. 2003; Enßlin & Vogt 2006).

Let us model the cluster weather in a simplistic fashion, in order to estimate the order of magnitude of the transport processes. We assume that the turbulence is injected on a length scale L_tu comparable to the cluster core radius r_c ~ 200 kpc, which is also roughly the atmospheric scale height in the inner part of the cluster: ${\mathit{L}}_{\mathrm{tu}}\mathrm{=}{\mathit{\chi }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}\mathrm{with}{\mathit{\chi }}_{\mathrm{tu}}\mathrm{~}\mathrm{1.}$(1)Although the turbulence injection is supersonic, shock waves rapidly dissipate kinetic energy until turbulent velocities υ_tu become subsonic. Thus, the turbulence stays nearly trans-sonic for about a Gyr. We therefore write ${\mathit{\upsilon }}_{\mathrm{tu}}\mathrm{=}{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{c}}_{\mathrm{s}}\mathrm{with}{\mathit{\alpha }}_{\mathrm{tu}}\mathrm{\left(}\mathit{t}\mathrm{\right)}\lesssim \mathrm{1}$(2)clearly being time dependent. Note that for notational consistency reasons, we identify the turbulent Mach number by M_tu ≡ α_tu. Half an eddy turn over time ${\mathit{\tau }}_{\mathrm{tu}}\mathrm{=}\frac{\mathit{\pi }}{\mathrm{2}}\hspace{0.17em}\frac{{\mathit{L}}_{\mathrm{tu}}}{{\mathit{\upsilon }}_{\mathrm{tu}}}\mathrm{=}\frac{\mathit{\pi }}{\mathrm{2}}\hspace{0.17em}\frac{{\mathit{\tau }}_{\mathrm{s}}}{{\mathit{\alpha }}_{\mathrm{tu}}}$(3)is probably larger, but comparable to the sound crossing time of an eddy τ_s = L_tu/c_s.

The hydrodynamical turbulence is expected to drive a small-scale magnetic dynamo, which is believed to saturate for magnetic energies, which are a fraction ${\mathit{\alpha }}_{\mathit{B}}^{\mathrm{2}}\mathrm{\approx }\mathrm{0.03}\mathrm{-}\mathrm{1}$ of the kinetic energy density, and a magnetic coherence length λ_B which is smaller than the turbulent injection scale by some factor (Subramanian et al. 2006; Enßlin & Vogt 2006). We have to stress that for filamentary fields, the perpendicular scale of the magnetic structures, which dominates this number, is much smaller than the parallel scale. Flux tubes can have extension L_B comparable to the eddy size¹⁴.

We parametrise the Alfvénic velocity by ${\mathit{\upsilon }}_{\mathrm{A}}\mathrm{=}{\mathit{\alpha }}_{\mathit{B}}\hspace{0.17em}{\mathit{\upsilon }}_{\mathrm{tu}}\mathrm{=}{\mathit{\alpha }}_{\mathit{B}}\hspace{0.17em}{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{c}}_{\mathrm{s}}$(4)and the magnetic bending-scale by ${\mathit{L}}_{\mathit{B}}\mathrm{=}{\mathit{\chi }}_{\mathit{B}}\hspace{0.17em}{\mathit{L}}_{\mathrm{tu}}\mathrm{with}{\mathit{\chi }}_{\mathit{B}}\mathrm{~}\mathrm{1.}$(5)The ICM magnetic field strength is a relatively poorly known number, despite substantial efforts to measure it in the different cluster environments. Inverse Compton based methods¹⁵ suggest rather low field strength of . These methods identify reported excess emission above the thermal ICM X-rays in the extreme ultraviolet and hard X-ray bands with CMB photons up-scattered by the radio halo emitting electrons. However, the identification is not unique, and even the detection of the excess emission is heavily debated (Molendi 2008,and references therein). Recent work using the Swift/Burst Alert Telescope (Ajello et al. 2009, 2010) was able to reject the hypothesis of non-thermal power-law emission in a sample of 20 clusters, except for the Bullet cluster where they seem to require a non-thermal power-law component. They are able to obtain excellent fits of their data with multi-temperature models – hence inferred values of the magnetic field strength using the inverse Compton method are better regarded as lower limits on the field strength. Magnetic field measurements using Faraday rotation data of galaxy clusters (e.g. Clarke et al. 2001) find fields , however, these numbers depend on the assumed characteristic field scale λ_B. Note that the IC-based magnetic field strengths are weighted by the CRe density at  ~ 10 GeV while the Faraday rotation-based values are weighted by the thermal electron density. In the case of the Hydra A cool core, where high quality data enables measuring the magnetic power spectrum in detail, magnetic fields of seem to support the idea of a saturated field strength with ${\mathit{\alpha }}_{\mathit{B}}^{\mathrm{2}}\mathrm{~}\mathrm{𝒪}\mathrm{\left(}\mathrm{1}\mathrm{\right)}$ (Kuchar & Enßlin 2009).

Anyhow, it will turn out that the precise magnetic field strength is less important for our argumentation than the characteristic bending length and the assumption that the magnetic energy density is proportional to the turbulent one, irrespective the numerical factor in between them.

3.2. CR transport

The discussion in this section is applicable for CR electrons as well as protons. We describe our CR population by their phase space density f(r,p,t) = d⁴N/(dr   dp) assuming that the momentum distribution is nearly isotropic and can hence be described by a one-dimensional spectrum. Anisotropies lead to CR streaming with a velocity υ_cr ~ c_s, as we will argue below. Therefore anisotropies are expected only on the order υ_cr/c_cr ~ c_s/c ~ 10^-3 which we can safely neglect here except for their transport effect. Here c_cr ≲ c denotes the CR particle velocity, which is close to the speed of light c. We express the CR momentum p in units of m   c, with m being the particle mass. For CRp, we assume a power-law particle spectrum, $\mathit{f}\mathrm{\left(}{r}\mathit{,p,t}\mathrm{\right)}\mathrm{=}\mathit{C}\mathrm{\left(}{r}\mathit{,t}\mathrm{\right)}\hspace{0.17em}{\mathit{p}}^{\mathrm{-}\mathit{\alpha }}\mathit{.}$(6)Here α(r,t) ≈ α ≈ 2.1 − 2.5 is the dominating CRp spectral index around 100 GeV expected in the ICM from structure formation shock waves (Miniati et al. 2001b; Pinzke & Pfrommer 2010) and C(r,t) the spectral normalisation constant, which will capture the spatial variations and temporal evolution.

The full CR transport equation reads $\frac{\mathit{\partial f}}{\mathit{\partial t}}\mathrm{+}\frac{\mathit{\partial }}{\mathit{\partial }{\mathit{r}}_{\mathit{i}}}\mathrm{(}{\mathit{\upsilon }}_{\mathit{i}}\hspace{0.17em}\mathit{f}\mathrm{)}\mathrm{+}\frac{\mathit{\partial }}{\mathit{\partial p}}\mathrm{(}\mathit{ṗ}\hspace{0.17em}\mathit{f}\mathrm{)}\mathrm{=}\frac{\mathit{\partial }}{\mathit{\partial }{\mathit{r}}_{\mathit{i}}}\left({\mathit{\kappa }}_{\mathit{ij}}\frac{\mathit{\partial }}{\mathit{\partial }{\mathit{r}}_{\mathit{j}}}\mathit{f}\right)\mathrm{+}\mathit{q}\mathrm{-}\frac{\mathit{f}}{{\mathit{\tau }}_{\mathrm{loss}}}\mathrm{·}$(7)Here, υ = υ_tu + υ_st is the CR transport velocity, which is the sum of the (turbulent) ICM gas velocity, υ_tu, and the CR streaming velocity with respect to the gas υ_st, to be discussed below. For relativistic protons, the continuous momentum loss or gain term ṗ(r,p,t) can be approximated to be solely due to adiabatic energy changes, since Coulomb and radiative losses can be ignored and hadronic losses are modelled as catastrophic losses with a timescale (see Fig. 2). Thus $\mathit{ṗ}\mathrm{\approx }\mathit{ṗ}\mathrm{ad}\mathrm{=}\mathrm{-}\frac{\mathit{p}}{\mathrm{3}}\hspace{0.17em}\mathbf{\nabla }\mathrm{·}{\upsilon }\mathrm{·}$(8)The adiabatic energy changes of CRe follow the same equation, however, radiative losses and Coulomb losses can usually not be ignored for CRe (see Fig. 2). Since we do not want to enter a detailed modeling of the CRe spectrum for the sake of briefness, we ignore the cooling in our calculations and can therefore only make timescale arguments just to see if and how CRe transport processes might be relevant.

The total transport velocity υ = υ_tu + υ_st appears in the adiabatic term, since υ represents the combined frame of the plasma waves and magnetic field line motions which together confine the particles a bit like walls. Thus, the energy transfer from streaming CR into waves is an adiabatic process for the CR, the particles push these walls away while expanding into unoccupied regions. The energy deposited in the waves gets dissipated by Landau and other damping processes and the interplay of excitation by the CR streaming and damping determines the precise value of the streaming velocity υ_st. This will be discussed more in detail in Sect. 3.3. For the time being we anticipate the result adopted here that ${\mathit{\upsilon }}_{\mathrm{st}}\mathrm{=}{\mathit{\alpha }}_{\mathrm{st}}\hspace{0.17em}{\mathit{c}}_{\mathrm{s}}\mathrm{with}{\mathit{\alpha }}_{\mathrm{st}}\lesssim \mathrm{1.}$(9)In addition, we will assume that the diffusive transport (discussed below) is possibly less efficient, since if it leads to significant CR bulk motions, these will excite plasma waves which limits the transport to the streaming regime.

The CR diffusion tensor is highly anisotropic with κ_∥ and κ _⊥  being the diffusion coefficients parallel and perpendicular to the local magnetic field direction, respectively. Nondiagonal terms that mix the parallel and perpendicular direction appear in case of diverging or converging magnetic flux. Very often, κ_∥ ≫ κ_⊥ so that we can ignore cross field diffusion on short timescales. Although several theoretical works ¹⁶ claim that in turbulent environments κ_⊥ might become comparable to κ_∥, the observation of sharply edged boundaries of radio plasma questions if the necessary conditions for this are realised in the ICM.

When the CR are tied to their flux tube it makes sense to introduce an affine coordinate x along the tube and a CR density per infinitesimal magnetic flux d²φ = B   dy   dz with g(x,p,t) = d⁴N/(d²φ   dx   dp). The transport equation along the flux tube can be written as $\frac{\mathit{\partial g}}{\mathit{\partial t}}\mathrm{+}\frac{\mathit{\partial }}{\mathit{\partial x}}\mathrm{(}{\mathit{\upsilon }}_{\mathit{x}}\hspace{0.17em}\mathit{g}\mathrm{)}\mathrm{+}\frac{\mathit{\partial }}{\mathit{\partial p}}\mathrm{(}\mathit{ṗ}\hspace{0.17em}\mathit{g}\mathrm{)}\mathrm{=}\frac{\mathit{\partial }}{\mathit{\partial x}}\left(\frac{{\mathit{\kappa }}_{\mathrm{\parallel }}}{\mathit{B}}\frac{\mathit{\partial }}{\mathit{\partial x}}\mathrm{(}\mathit{B}\hspace{0.17em}\mathit{g}\mathrm{)}\right)$(10)(Cesarsky & Völk 1978; Enßlin 2003), where we dropped the injection term q and the catastrophic losses. The magnetic field enters the transport equation since magnetic mirrors reflect particles away from locations with converging field lines, so that the CR population tries to establish a constant density per volume, and not per magnetic flux. Regions where the magnetic field strength is lower and therefore the flux tube diameter is larger will carry more CRs per tube length. For a flux tube which connects volume elements on the bottom and top of an atmospheric scale height (or the fraction χ_B   χ_tu of it) the tube diameter is expected to be larger at larger cluster radii. This is due to the low-pressure environment which enables the gas to expand there and CR will tend to occupy preferentially more peripheral regions.

3.3. CR streaming velocity

Cosmic ray streaming is an important ingredient of the present work, as mentioned above. We discuss here briefly the range of possibilities for the CR streaming speed. But before we enter the detailed discussion, we summarise our main insights.

For a very turbulent medium, CR may be well trapped by magnetic irregularities produced by the turbulence. For a less turbulent high-β plasma, the sound speed seems to be a reference speed ¹⁷. However, in case the turbulence and CR energy densities are low, even higher transport speeds are possible. Since we only know the streaming speed approximately, we will parametrise it in terms of the sound speed. Note, that complex magnetic topologies reduce the effective, macroscopic speed, and this effect should be stronger for turbulent clusters than for relaxed ones.

Now we investigate the different factors determining the streaming speed. In doing so we shall clearly distinguish between two separate regimes, one for merging clusters and the other for relaxed clusters. In the first case the ICM is highly turbulent. The turbulence is transonic, i.e. the sonic Mach number is M = α_tu ≥ 1 and, for a typical magnetic field strength of a few μG and sound speed of 10³ km s^-1, highly super-alfvénic, i.e. the Alfvénic Mach number is M_A = υ_tu/υ_A ~ 10. A small-scale dynamo is also operating at this stage. We assume that this has amplified the field to the observed level of a few microgauss from perhaps weaker fields. Under these conditions the magnetic field lines are easily bent by the inertia of the ICM motions, at least on scales where the turbulence remains super-alfvénic. If the turbulence is injected on scales L_tu ≃ a   few × 10² kpc, and follows Kolmogorov’s scaling, then super-alfvénic conditions persist down to scales ${\mathit{L}}_{\mathrm{A}}\mathrm{\simeq }{\mathit{L}}_{\mathrm{tu}}{\mathit{M}}_{\mathrm{A}}^{-3}\mathrm{\simeq }\mathrm{a} \mathrm{few}\mathrm{\times }{\mathrm{10}}^{\mathrm{2}}$ pc. Under these conditions the CR particles are efficiently trapped in between large amplitude magnetic field fluctuations by adiabatic mirroring (e.g. Kulsrud 2005). So, at least macroscopically, the CR particles effectively follow the advective motion of magnetic field lines.

Fig. 3 Sketch of the interplay of CR streaming and turbulent advection for a single flux tube in a stratified atmosphere with gravity pointing downwards. Left: the dense CR at the center stream along the tube towards the CR depleted regions at larger atmospheric height. Middle: CR streaming stops as soon as a homogeneous CR space density is achieved. A turbulent eddy (represented by its angular momentum axis) starts to turn the magnetic structure upside down. Right: the former outer parts of the flux tubes are compressed at the center, and harbor now an overdense CR population, whereas the former inner parts are expanded at larger atmospheric scale height and therefore have now an underdense CR population. Again CR streaming sets in.

As the merger process approaches dynamical equilibrium, the amount of ICM turbulence drops considerably in the core regions, with typical values of the gas speed υ_tu ~ a   few × 10² km s^-1 (see, e.g. Faltenbacher et al. 2005; Paul et al. 2011). This changes the dynamical picture in the core regions at a qualitative level. In fact, the turbulent motions are now subsonic and, more importantly, trans-alfvénic, i.e. M_A ≳ 1. Under these conditions adiabatic mirroring will be modest and the most effective way to limit the propagation speed of the particles is through the self-generated turbulence.

In fact, CRs in the Solar neighborhood are observed to have a very small anisotropy (about 1 part in 10⁴). This is explained by pitch-angle scattering of CRs by plasma waves, in particular Alfvén waves, in our interstellar medium. These waves can be generated by the CRs themselves, by a streaming instability, as they gyrate around and stream along the magnetic field at a velocity faster than the Alfvén speed (Wentzel 1968; Kulsrud & Pearce 1969; Kulsrud & Cesarsky 1971). The waves traveling in the direction of the streaming CRs (and satisfying a resonance condition for low frequency waves, k_wave   γ_cr   υ_cr   c_cr = Ω_cr) are amplified by this streaming instability. Here k_wave is the wavenumber of the amplified wave, υ_cr is the CR velocity, γ_cr its Lorentz factor, Ω_cr its gyro frequency, and c_cr = cosθ_cr, with θ_cr the pitch angle, the angle between the CR velocity and the magnetic field direction. For μ_cr ~ 1, the amplified waves have a wavelength of order the CR gyro-radius. These self-generated waves can then resonantly scatter the CRs and lead to an isotropisation of the pitch angle distribution in the wave frame. Hence in the low plasma-β interstellar medium the CRs are expected to stream with respect to the gas with the wave (or Alfvén) velocity (see, e.g., Kulsrud 2005, for a detailed discussion). The scattering also leads to a transfer of momentum and energy from CRs to the waves, which is in turn transmitted to the thermal gas, when the waves damp out, although this is a higher order effect than the pitch-angle scattering process and therefore slower.

A potential problem with the above picture is due to the fact that in order to isotropise their pitch angle distribution some CR particles need to be scattered by the waves to have negative μ_cr, or reverse their parallel component of the velocity. This can only happen if they get scattered through μ_cr = 0. But for μ_cr ~ 0, the resonance condition implies that resonant waves will have a large k_wave. In a high-β plasma, such as the ICM, such large k_wave waves can suffer strong resonant damping by thermal protons (Holman et al. 1979). Thus to maintain them at a significant level one needs a larger streaming speed.  Holman et al. (1979) then deduced that, in a high-β plasma, CRs can then stream at a speed of order or greater than the ion sound speed, which in this case will be larger than the Alfvén speed.

Possible processes can help in crossing the μ_cr = 0 gap, include mirroring on long wavelength waves (Achterberg 1981; Felice & Kulsrud 2001), and resonance broadening which relaxes the resonant condition (Achterberg 1981; Yan & Lazarian 2008). As for the former case, long wavelength waves – responsible for the mirroring – are assumed to be generated by the streaming CR particles themselves, albeit at a smaller pitch angle. However, they can also be produced as a result of residual turbulent motions which we know exist even in the ICM of relaxed clusters (Faltenbacher et al. 2005; Paul et al. 2011). In any case Felice & Kulsrud (2001) find that the contribution from mirroring to the diffusion coefficient is important but not dominant. The streaming velocity, υ_str, can then be found by balancing (A) the growth rates of the resonant waves produced by the streaming particles and the (nonlinear) damping rates, which is proportional to the amount of resonant waves; and (B) by noting that the streaming velocity is determined by the anisotropic component of the CRs which is inversely proportional to the amount of resonant waves responsible for pitch angle scattering. This is basically the argument followed by Felice & Kulsrud (2001). If we apply this argument to the case to the ICM we find that, among others, the streaming velocity scales inversely with the square-root of the number density of the CR themselves. If the CR energy is at the level of ten percent or so, then the streaming velocity is of order of the thermal speed of the ions, i.e. we find that Eq. (9) is approximately valid. If the CR population is substantially lower than that, e.g. as in the case of CRe or for CRp after a result of their streaming motions, the streaming velocity can become significantly larger than the sound speed.

We should note that during both the turbulent and quiescent phases, the magnetic field is not static. When the gas is turbulent, there is a dynamo, which not only amplifies the field but also makes it spatially and temporally intermittent. A place which has strong field at some time will, after eddy turn over time, have weaker field and also possibly with different connectivity. However this does not affect the streaming instability drastically as the growth and damping rates of the waves will generally occur at a much faster rate than the growth rate of the small-scale dynamo. But it will affect the long time behaviour of CRs, because of the constantly changing and complex connectivity of the field, although the consequences of such changes for CR propagation have yet to be studied. More interesting is what would happen when there is no longer merger-driven turbulence. The field itself then generates decaying MHD turbulence, with the kinetic and magnetic energy decaying as a power law in time, and the coherence length of the field increasing also as a power law (Subramanian et al. 2006). Such an increased correlation length and simpler connectivity could make it easier for the CRs to propagate throughout the cluster, albeit limited by the streaming velocity.

3.4. Interplay of advection and streaming

First, we consider an isolated magnetic flux tube with CRs confined to it to illustrate the interplay of advection and streaming with a basic picture. This will be generalised later on in Sect. 3.6 to a more complex situation including CRs escaping from magnetic structures. Focusing on the CR transport along a single flux tube embedded in the ICM, we start with the idealised picture of a static flux tube frozen into a static plasma as shown in Fig. 3 on the left. Any central concentration of CR will escape due to CR streaming on a timescale of ${\mathit{\tau }}_{\mathrm{st}}\mathrm{=}\frac{{\mathit{L}}_{\mathit{B}}}{{\mathit{\upsilon }}_{\mathrm{st}}}\mathrm{=}\frac{{\mathit{\chi }}_{\mathit{B}}}{{\mathit{\alpha }}_{\mathrm{st}}}\hspace{0.17em}\frac{{\mathit{L}}_{\mathrm{tu}}}{{\mathit{c}}_{\mathrm{s}}}\mathrm{·}$(11)This leads to a homogeneous CR distribution within the flux tube (Fig. 3, middle). Turbulence turns the magnetic structure upside down on half an eddy turnover time τ_tu = π   L_tu/(2   υ_tu). This is comparable to, or less than, the CR escape time, $\frac{{\mathit{\tau }}_{\mathrm{st}}}{{\mathit{\tau }}_{\mathrm{tu}}}\mathrm{\equiv }{\mathit{\gamma }}_{\mathrm{tu}}\mathrm{~}{\mathit{\chi }}_{\mathit{B}}\frac{{\mathit{\alpha }}_{\mathrm{tu}}}{{\mathit{\alpha }}_{\mathrm{st}}}\mathrm{~}\mathrm{𝒪}\mathrm{\left(}\mathrm{1}\mathrm{\right)}\mathit{,}$(12)and thus a good fraction of the CR from larger radii will be compressed towards the center, from where they again start streaming to larger radii.

The transonic turbulence is therefore able to maintain a centrally enhanced CR density by pumping expanded CR populations downwards. As soon as the turbulent velocities become significantly subsonic, this pumping becomes inefficient, since the streaming will be faster than the advection. At this point a nearly constant volume density of CR establishes within a closed flux tube, meaning that most CR are residing at larger cluster radii. However, the CR density can again become centrally enhanced, if the turbulence becomes strong again, e.g. during the next cluster merger.

During the phase of transonic turbulence, we regard two Lagrangian volume elements which are exchanged radially by an eddy, one starting at small radius with volume V₁ and the other at large radius with volume V₂ = X   V₁, with X > 1. We assume a relaxed CR population with power law spectrum as in Eq. (6) being present in them, with C₁ = C₂ = C. Now, ${\mathit{V}}_{\mathrm{2}}\mathrm{\to }{\mathit{V}}_{\mathrm{2}}^{\mathrm{\prime }}\mathrm{=}{\mathit{V}}_{\mathrm{1}}$, the enclosed CR get compressed and gain momentum adiabatically according to ${\mathit{p}}_{\mathrm{2}}\mathrm{\to }{\mathit{p}}_{\mathrm{2}}^{\mathrm{\prime }}\mathrm{=}{\mathit{X}}^{\frac{\mathrm{1}}{\mathrm{3}}}\hspace{0.17em}{\mathit{p}}_{\mathrm{2}}\mathit{.}$(13)The compressed CR population is again described by Eq. (6), but now with ${\mathit{C}}_{\mathrm{2}}^{\mathrm{\prime }}\mathrm{=}\mathit{C}\hspace{0.17em}{\mathit{X}}^{\frac{\mathit{\alpha }\mathrm{+}\mathrm{2}}{\mathrm{3}}}\mathit{.}$(14)Correspondingly, the expanded CR population in ${\mathit{V}}_{\mathrm{1}}^{\mathrm{\prime }}$ has a power-law normalisation constant of ${\mathit{C}}_{\mathrm{1}}^{\mathrm{\prime }}\mathrm{=}\mathit{C}\hspace{0.17em}{\mathit{X}}^{\mathrm{-}\mathrm{\left(}\mathit{\alpha }\mathrm{+}\mathrm{2}\mathrm{\right)}\mathit{/}\mathrm{3}}$. A simple swap of the two volumes can generate a CR density contrast (at fixed momentum) of ${\mathit{C}}_{\mathrm{2}}^{\mathrm{\prime }}\mathit{/}{\mathit{C}}_{\mathrm{1}}^{\mathrm{\prime }}\mathrm{=}{\mathit{X}}^{\mathrm{\left(}\mathrm{2}\hspace{0.17em}\mathit{\alpha }\mathrm{+}\mathrm{4}\mathrm{\right)}\mathit{/}\mathrm{3}}\mathrm{\approx }{\mathrm{2}}^{\mathrm{3}}\mathrm{=}\mathrm{8}$ from a previously homogeneous distribution if the ratio of the initial volumes was only X = 2.

The complete process of advective compression and expansion via CR streaming is, from the perspective of the CRs, completely adiabatic. The energy losses during the streaming expansion phase will be exactly compensated during the advective compression phase. This might surprise, since the dissipation of the excited waves is certainly not a reversible process (for any practical purpose). But the energy injected into the wave fields comes from adiabatic work done by the expanding CR gas. All what the CRs feel are the expanding walls of the self-generated plasma waves, and the converging magnetic fields confining them when they are dragged back inwards by a downwards directed flow.

However, from the perspective of the turbulence, the process is dissipative. Not all of the kinetic energy invested into CR compression will be returned to the kinetic energy budget during a gas expansion phase, but some fraction is transferred via plasma wave generation and damping into thermal heat. Thereby this process contributes to the damping of turbulent flows as well as to the heating of the ICM. Since the CR can release their energy at different locations than where they got it via adiabatic compression in the turbulent flow, the spatial distribution of their heating power will in general differ from that of the turbulence. Since CR actively propagate preferentially to regions of low CR densities, their heating profile can be expected to be more regular than that of the probably intermittent turbulent cascades.

3.5. Diffusive acceleration

CR diffusion will always be present at some level, although it is probably a less efficient transport mode compared to streaming. It has, however, some other advantage in that this propagation mode does not lead to adiabatic energy losses of the CR. Diffusion also tends to establish a constant CR density per volume as streaming does, but with a positive energy balance if counteracted by turbulent advection. If the volume expansion factor X can be split into a (dominant) streaming and (subdominant) diffusion part, we obtain $\mathit{X}\mathrm{=}{\mathit{X}}_{\mathrm{str}}\hspace{0.17em}{\mathit{X}}_{\mathrm{diff}}\mathit{.}$(15)If this is identical to the (inverse of the) subsequent advective compression X_adv, then a net energetisation of the CR population happens. This is described by $\frac{\mathrm{d}\mathit{C}}{\mathrm{d}\mathit{t}}\mathrm{\approx }\mathit{C}\hspace{0.17em}\frac{{\mathit{X}}_{\mathrm{diff}}^{\frac{\mathit{\alpha }\mathrm{-}\mathrm{1}}{\mathrm{3}}}}{{\mathit{\tau }}_{\mathrm{tu}}}\mathit{,}$(16)and leads to an exponential energy gain of the CR. The individual particles gain per cycle the momentum $\mathit{p}\mathrm{\to }{\mathit{p}}^{\mathrm{\prime }}\mathrm{=}\mathit{p}\hspace{0.17em}{\mathit{X}}_{\mathrm{diff}}^{\frac{\mathrm{1}}{\mathrm{3}}}\mathit{.}$(17)In case some fraction η_loss of CR gets lost from the turbulent region per cycle, the spectrum evolves towards a power law distribution with spectral index $\mathit{\alpha }\mathrm{=}\mathrm{1}\mathrm{+}{\mathit{\eta }}_{\mathrm{loss}}\hspace{0.17em}{\mathit{X}}_{\mathrm{diff}}^{\mathrm{-}\frac{\mathrm{1}}{\mathrm{3}}}\mathit{,}$(18)assuming a continuous injection of low energy CRs is provided. For a low loss fraction ${\mathit{\eta }}_{\mathrm{loss}}\mathit{<}{\mathit{X}}_{\mathrm{diff}}^{\mathrm{1}\mathit{/}\mathrm{3}}$, the asymptotic spectrum can even become harder than the canonical value α = 2 of diffusive shock acceleration in the strongest non-relativistic shocks (and in the test-particle limit).

Given the final duration of the transsonic ICM turbulence of 1   Gyr ~ 10   τ_eddy (partly because the virializing dark matter flows continue to stir turbulence for the dynamical time of a cluster), and the limited pool of low energy CRs, due to the severe Coulomb losses in the subrelativistic regime, such a spectrum is probably not established in typical galaxy clusters. In a cool core, a slightly larger number of eddy turn overs might be realistic, however, the escape probability of the accelerated CRs into the wider ICM might be large, so that the accelerated spectrum might be steep.

This discussion should have made clear that some CR energetisation can be expected if CR diffusion contributes substantially to the active CR propagation. In order for this to happen, the poorly known CR diffusion coefficient has to be on the right order of magnitude to have the diffusion speed being a non-negligible fraction of the advection speed. Different to the case of CR streaming, we are not aware of any natural explanation for this. In case of CR streaming in post-merger clusters, the cluster turbulence velocity as well as the CR streaming speed are each linked to the sound speed and therefore comparable.

3.6. Expected CR profiles

We now generalise the picture to full turbulent advection, complex magnetic topology, and CR transport. What are the expected CR profiles in galaxy clusters that are established by the interplay of advection and propagation of CR? Is the process limited to operate only when the assumption of strict CR confinement to flux tubes is valid?

In order to answer these questions, we assume CR diffusion to enable the CR to change between magnetic flux tubes and thereby find paths to more peripheral regions. Thus the CR propagation needs not to stop after L_B but can reach even the outskirts of galaxy clusters, where the infall of matter onto the cluster behind the accretion shocks prevents further escape¹⁸.

Without turbulent advective transport counteracting, we would expect a completely homogeneous CR distribution within the galaxy cluster to establish itself after some time. Since the required perpendicular CR diffusion steps might be slow, the macroscopic should be smaller than the microscopic one α_st of the previous sections. If we model the diffusive transport through bottlenecks as a spatial decrement in α_st(r), where r is the (radial) coordinate parallel to the CR gradient, we find $\mathit{\alpha ̅}\mathrm{st}\mathrm{=}{\left(\frac{\mathrm{1}}{\mathit{L}}{\mathrm{\int }}_{\mathrm{0}}^{\mathit{L}\hspace{0.17em}\mathrm{\gg }{\mathit{L}}_{\mathit{B}}}\mathrm{d}\mathit{r}\frac{\mathrm{1}}{{\mathit{\alpha }}_{\mathrm{st}}\mathrm{\left(}\mathit{r}\mathrm{\right)}}\right)}^{-1}\mathrm{·}$(19)Thus, a few bottlenecks with α_st(r) ≪ 1, at which the CRs spend most of their time with low transport velocity, can reduce the macroscopic speed by a significant factor to be well below the sound speed. In the following we simply write α_st instead of for the macroscopic streaming Mach number.

If the diffusion of the CRs out of magnetic bottlenecks dominates the transport time, any energy dependence of the effective diffusion coefficient imprints itself on the macroscopic streaming speed. We are not going to model this in the following, however, we note, that the energy dependence of the transport can lead to spatially varying spectral indices of a CR population.

The cluster-wide CR profile relaxation time of τ_relax ~ R_as/υ_st ~ 10   r_c/υ_st ~ 2   Gyr/α_st can be comparable to the cluster age (where R_as ≈ 10   r_c is the radius of the accretion shock confining the CR population within the cluster). Thus, turbulent CR advection could be very essential to maintain a centrally peaked CRp profile, if we want to explain radio halos with the hadronic model, or a centrally peaked low-energy CRe population, for re-acceleration models to be operative. CR propagation aims at establishing a spatially homogeneous CR distribution, but what is the preferred profile of adiabatic advection?

To work this out, we use the following assumptions.

• 1.

  The cluster is characterised by a mean pressure profile. For thesake of simplicity, we ignore pressure fluctuations due to theturbulence.

• 2.

  CR propagation operates on small scales, permitting CR exchange between nearby gas volume elements, but not on large scales so that the profile is still determined by the advective transport.

• 3.

  Magnetic bottlenecks reduce the macroscopic CR streaming speed to a level that it is irrelevant for the global profile. This assumption will be alleviated later on.

Under these conditions turbulent advection will completely dominate the CR profile.

Whenever two volume elements come close at some radius, they might exchange CR, tending to establish a constant CR population in any given radial shell¹⁹. During radial advective transport from radius r to r′ the ICM gas with the enclosed CR is compressed or expanded by a factor X(r → r′) = (P(r′)/P(r))^1/γ, where P(r) is the pressure profile and γ = 5/3. The CR rest-mass density ϱ(r) = m   ^∫dp   f(r,p) (or any other advected quantity) therefore wants to establish – under the influence of advection alone – a profile according to $\begin{array}{ccc}\mathit{\varrho }\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& {\mathit{\varrho }}_{\mathrm{0}}\hspace{0.17em}{\left(\frac{\mathit{P}\mathrm{\left(}\mathit{r}\mathrm{\right)}}{{\mathit{P}}_{\mathrm{0}}}\right)}^{\frac{\mathrm{1}}{\mathit{\gamma }}}\mathrm{=}{\mathit{\varrho }}_{\mathrm{0}}\hspace{0.17em}\mathit{\eta }\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathit{,}\end{array}$(20)where η(r) = (P(r)/P₀)^1/γ is the advective CR target profile. This is the only steady state profile which fulfills the requirement X(r → r′) = ϱ(r′)/ϱ(r) = (P(r′)/P(r))^1/γ for any r and r′. The CR normalisation develops therefore a radial profile $\begin{array}{ccc}\mathit{C}\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& {\mathit{C}}_{\mathrm{0}}\hspace{0.17em}{\left(\frac{\mathit{P}\mathrm{\left(}\mathit{r}\mathrm{\right)}}{{\mathit{P}}_{\mathrm{0}}}\right)}^{\frac{{\mathit{\beta }}_{\mathrm{cr}}}{\mathit{\gamma }}}\mathrm{=}{\mathit{C}}_{\mathrm{0}}\hspace{0.17em}{\left(\mathit{\eta }\mathrm{\left(}\mathit{r}\mathrm{\right)}\right)}^{{\mathit{\beta }}_{\mathrm{cr}}}\mathit{,}\mathrm{with}\\ {\mathit{\beta }}_{\mathrm{cr}}& \mathrm{=}& \frac{\mathit{\alpha }\mathrm{+}\mathrm{2}}{\mathrm{3}}\mathrm{\approx }\mathrm{1.33}\mathit{...}\mathrm{1.67.}\end{array}$(21)This profile is strongly peaked at the cluster center, and is very much in contrast to the spatially constant profile with β_cr = 0 that CR propagation seeks to establish.

In reality, CR propagation and advection will both shape the CR profile. The ratio of their transport coefficients will determine the exact equilibrium shape. We will argue that during the transsonic turbulence of a cluster merger, we expect both processes to operate on comparable strength and therefore we expect a profile which is centrally peaked. A Gyr after a cluster merger, turbulence decays and CR streaming becomes more dominant, leading to a flattened profile implying a negligible CR population in the cluster center compared to the turbulent advection case. Thus, we expect a large variety of CR profiles being present, depending on the turbulent history of the cluster. This must have implications on radiative signatures of CRs in clusters.

In the following, we want to get some analytical insight into the dependence of the CR profile on the turbulence level. All we aim for is a rough model, which captures the essential dependencies, and leaves a more accurate treatment to numerical simulations. The CR continuity equation for ϱ in the absence of sources and sinks can be written as $\frac{\mathit{\partial \varrho }}{\mathit{\partial t}}\mathrm{+}\mathbf{\nabla }\mathrm{·}\mathrm{(}{\upsilon }\hspace{0.17em}\mathit{\varrho }\mathrm{)}\mathrm{=}\mathrm{0}\mathit{,}$(22)with υ = υ_ad + υ_di + υ_st the CR transport velocity, which is composed by advective (υ_ad), diffusive (υ_di), and steaming (υ_st) transport velocities.

We characterise the passive, advective transport via turbulence as an additional diffusion process with diffusion coefficient ${\mathit{\kappa }}_{\mathrm{tu}}\mathrm{=}\frac{{\mathit{L}}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\upsilon }}_{\mathrm{tu}}}{\mathrm{3}}\mathrm{·}$(23)In a stratified atmosphere the effective and averaged advective velocity of this (passive, macroscopic) diffusion is given by ${\upsilon }\mathrm{ad}\mathrm{=}\mathrm{-}{\mathit{\kappa }}_{\mathrm{tu}}\hspace{0.17em}\frac{\mathit{\eta }}{\mathit{\varrho }}\hspace{0.17em}\mathbf{\nabla }\frac{\mathit{\varrho }}{\mathit{\eta }}\mathrm{=}\mathrm{-}{\mathit{\kappa }}_{\mathrm{tu}}\hspace{0.17em}\mathbf{\nabla }\ln \left(\frac{\mathit{\varrho }}{\mathit{\eta }}\right)\mathrm{·}$(24)What is a bit unusually here is the appearance of the target density profile η(r) = (P(r)/P₀)^1/γ, which ensures that the advective diffusion alone tries to establish the steady state CR density profile we derived above in Eq. (20). Its appearance can be understood as follows.

If turbulent advection is dominating the solution, we should find ϱ/ϱ₀ = η in the equilibrium configuration, according to Eq. (20). Thus the effective gradient in the CR population, which drives the turbulent transport, has to vanish. This can only be achieved by a term proportional to ∇(ϱ/η). Already by dimensional reasoning one sees that the prefactor has to be  − κ_tu   η/ϱ.

The counteracting streaming and diffusive CR propagation can also be described by velocities. The streaming velocity has magnitude υ_st and is anti-parallel to the CR space density gradient. Active CR diffusion can be described very similar to turbulent diffusion, just with a constant target space density. Thus we have $\begin{array}{ccc}{\upsilon }\mathrm{st}& \mathrm{=}& \mathrm{-}{\mathit{\upsilon }}_{\mathrm{st}}\hspace{0.17em}\frac{\mathbf{\nabla }\hspace{0.17em}\mathit{\varrho }}{\mathrm{\left|}\mathbf{\nabla }\hspace{0.17em}\mathit{\varrho }\mathrm{\right|}}\mathit{,}\mathrm{and}\\ {\upsilon }\mathrm{di}& \mathrm{=}& \mathrm{-}{\mathit{\kappa }}_{\mathrm{di}}\hspace{0.17em}\hspace{0.17em}\frac{\mathrm{1}}{\mathit{\varrho }}\hspace{0.17em}\mathbf{\nabla }\mathit{\varrho }\mathrm{=}\mathrm{-}{\mathit{\kappa }}_{\mathrm{di}}\hspace{0.17em}\mathbf{\nabla }\ln \mathrm{\left(}\mathit{\varrho }\mathrm{\right)}\mathit{,}\end{array}$with κ_di the macroscopically averaged CR diffusion coefficient, which depends on κ _∥ , κ _⊥  and the magnetic topology in a nontrivial way. We are not trying to give a concrete value for κ_di from first principles, however, we assume that diffusive transport is subdominant but non-zero, since streaming over distances  > L_B requires that CR switch their guiding magnetic field lines. If diffusive CR transport would be significant, it would correspond to an anisotropy in the CR phase-space function, which would amplify plasma waves on which the CR would scatter. Shortly, the diffusive transport is limited by the streaming regime.

Fig. 4 Left: CR density profiles for γtu = 1,3,   10,   30, and 100 (from bottom to top at small radii) including the same number of CRs each. Profiles are normalised to ϱ(0) | γtu = ∞. Also the more narrow gas density profile is shown (thick grey line). Right: CR normalisation profiles for the same parameters and the gas density profile (βcl = 0.8, Ras = 10, α = 2.5).

The CR space density becomes stationary for υ = 0, and this reads in spherical symmetry with radially outstreaming CRs ${\mathit{\upsilon }}_{\mathrm{st}}\mathrm{=}{\mathit{\kappa }}_{\mathrm{tu}}\hspace{0.17em}\frac{\mathit{\partial }}{\mathit{\partial r}}\ln \left(\frac{\mathit{\varrho }}{\mathit{\eta }}\right)\mathrm{+}{\mathit{\kappa }}_{\mathrm{di}}\hspace{0.17em}\frac{\mathit{\partial }}{\mathit{\partial r}}\ln \mathrm{\left(}\mathit{\varrho }\mathrm{\right)}\mathit{.}$(27)This is solved by $\begin{array}{ccc}\mathit{\varrho }\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& {\mathit{\varrho }}_{\mathrm{0}}\hspace{0.17em}\exp \left({\mathrm{\int }}_{\mathrm{0}}^{\mathit{r}}\mathrm{d}{\mathit{r}}^{\mathrm{\prime }}\hspace{0.17em}\frac{{\mathit{\upsilon }}_{\mathrm{st}}\mathrm{+}{\mathit{\kappa }}_{\mathrm{tu}}\hspace{0.17em}\frac{\mathit{\partial }}{\mathit{\partial }{\mathit{r}}^{\mathrm{\prime }}}\hspace{0.17em}\ln \mathit{\eta }}{{\mathit{\kappa }}_{\mathrm{tu}}\mathrm{+}{\mathit{\kappa }}_{\mathrm{di}}}\right)\\ & \mathrm{=}& {\mathit{\varrho }}_{\mathrm{0}}\hspace{0.17em}\mathit{\eta }\mathrm{(}\mathit{r}{\mathrm{)}}^{{\mathit{\beta }}_{\mathit{\varrho }}}\hspace{0.17em}\exp \left(\frac{\mathit{r}}{{\mathit{r}}_{\mathrm{\ast }}}\right)\mathit{,}\mathrm{with}\\ {\mathit{\beta }}_{\mathit{\varrho }}& \mathrm{=}& \frac{{\mathit{\kappa }}_{\mathrm{tu}}}{{\mathit{\kappa }}_{\mathrm{tu}}\mathrm{+}{\mathit{\kappa }}_{\mathrm{di}}}\mathrm{=}\frac{\mathrm{1}}{\mathrm{1}\mathrm{+}{\mathit{\kappa }}_{\mathrm{di}}\mathit{/}{\mathit{\kappa }}_{\mathrm{tu}}}\mathit{<}\mathrm{1}\mathit{,}\mathrm{and}\\ {\mathit{r}}_{\mathrm{\ast }}& \mathrm{=}& \frac{{\mathit{\kappa }}_{\mathrm{tu}}\mathrm{+}{\mathit{\kappa }}_{\mathrm{di}}}{{\mathit{\upsilon }}_{\mathrm{st}}}\mathrm{=}\frac{{\mathit{\kappa }}_{\mathrm{tu}}}{{\mathit{\beta }}_{\mathit{\varrho }}\hspace{0.17em}{\mathit{\upsilon }}_{\mathrm{st}}}\mathrm{=}\frac{{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}}{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathit{\varrho }}\hspace{0.17em}{\mathit{\alpha }}_{\mathrm{st}}}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}\mathit{.}\end{array}$(28)In the second line υ_st, κ_tu, and κ_di were assumed to be spatially constant. In the following, we adopt a standard cluster beta-profile for the thermal electron density n(r) $\mathit{n}\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathrm{=}{\mathit{n}}_{\mathrm{0}}\hspace{0.17em}{\left(\mathrm{1}\mathrm{+}\frac{{\mathit{r}}^{\mathrm{2}}}{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}\right)}^{\mathrm{-}\frac{\mathrm{3}}{\mathrm{2}}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}}\mathrm{·}$(29)Here we assume for simplicity a typical value for β_cl ~ 0.8 and a constant temperature profile²⁰. With these simplifying assumptions P(r)/P₀ = n(r)/n₀ and $\mathit{\eta }\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathrm{=}{\left(\mathrm{1}\mathrm{+}\frac{{\mathit{r}}^{\mathrm{2}}}{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}\right)}^{\mathrm{-}\frac{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}}{\mathrm{2}\hspace{0.17em}\mathit{\gamma }}}\mathit{.}$(30)Thus the CR density profile is a bit flatter than the thermal density profile.

The solution of Eq. (28) is only physical for this profile between ${\mathit{r}}_{\mathrm{\pm }}\mathrm{=}\frac{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\beta }}_{\mathit{\varrho }}}{\mathrm{2}\hspace{0.17em}\mathit{\gamma }}\hspace{0.17em}{\mathit{r}}_{\mathrm{\ast }}\hspace{0.17em}\left(\mathrm{1}\mathrm{\pm }\sqrt{\mathrm{1}\mathrm{-}{\left(\frac{\mathrm{2}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}\hspace{0.17em}\mathit{\gamma }}{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\beta }}_{\mathit{\varrho }}\hspace{0.17em}{\mathit{r}}_{\mathrm{\ast }}}\right)}^{\mathrm{2}}}\right)\mathit{,}$(31)since at these radii υ_st changes sign, which we did not model in Eq. (27). The CR profile outside r ₋  < r < r ₊  is actually non-stationary. Here, we just set ϱ(r) = ϱ(r _± ) for r < r ₋  and r > r ₊ , respectively, since the dominating streaming in these regimes wants to establish a constant CR volume density, which we take as an acceptable approximation to the time-averaged density there. These radii are approximately given, in case r ₋  ≪ r ₊ , by $\begin{array}{ccc}{\mathit{r}}_{\mathrm{-}}& \mathrm{\approx }& \frac{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}\mathit{\gamma }}{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\beta }}_{\mathit{\varrho }}\hspace{0.17em}{\mathit{r}}_{\mathrm{\ast }}}\mathrm{=}\frac{{\mathit{\alpha }}_{\mathrm{st}}\hspace{0.17em}\mathit{\gamma }}{{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}}\hspace{0.17em}\frac{{\mathit{r}}_{\mathrm{c}}}{{\mathit{\beta }}_{\mathrm{cl}}}\mathit{,}\mathrm{and}\\ {\mathit{r}}_{\mathrm{+}}& \mathrm{\approx }& \frac{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\beta }}_{\mathit{\varrho }}}{\mathit{\gamma }}\hspace{0.17em}{\mathit{r}}_{\mathrm{\ast }}\mathrm{=}\frac{{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}}{{\mathit{\alpha }}_{\mathrm{st}}\hspace{0.17em}\mathit{\gamma }}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}\mathrm{\approx }\frac{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}{{\mathit{r}}_{\mathrm{-}}}\mathrm{·}\end{array}$(32)A centrally enhanced CR profile exists only if r _±  are real (see Eq. (31)), which translates into the necessary condition ${\mathit{\gamma }}_{\mathrm{tu}}\mathrm{=}\frac{{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}}{\mathrm{3}\hspace{0.17em}{\mathit{\alpha }}_{\mathrm{st}}}\mathrm{=}\frac{{\mathit{\kappa }}_{\mathrm{tu}}}{{\mathit{\upsilon }}_{\mathrm{st}}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}}\mathrm{=}\frac{{\mathit{\tau }}_{\mathrm{st}}}{{\mathit{\tau }}_{\mathrm{ad}}}\mathit{>}\frac{\mathrm{2}\hspace{0.17em}\mathit{\gamma }}{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}}\mathrm{\approx }\mathrm{1.7}$(33)is fulfilled. It means that in order to develop a centrally enhanced CR profile, turbulence has to be above some critical value (comparable to the sound speed), and the CR streaming must be inhibited by magnetic topology constrains to a value significantly below the sound speed. More specifically, the timescale ${\mathit{\tau }}_{\mathrm{ad}}\mathrm{=}{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}\mathit{/}{\mathit{\kappa }}_{\mathrm{tu}}\mathrm{=}\mathrm{3}\hspace{0.17em}{\mathit{\tau }}_{\mathrm{tu}}$ for turbulent diffusion over the distance r_c should be significantly shorter than the macroscopic streaming timescale τ_st = r_c/υ_st for the same distance. This implies that magnetic bottlenecks are critical in lowering the microscopic streaming velocity of CR by some finite factor. In order that the macroscopic streaming does not disappear (and we do not have a switch off mechanism for halos) some cross-field diffusion must be present. Since we expect then also some diffusion along the magnetic field lines, we can expect some level of diffusive acceleration of CRs as discussed in Sect. 3.5.

However, in order to also have a stationary situation for the CR spectra, we assume that re-acceleration is negligible, i.e. that κ_di ≪ κ_tu and therefore β_ϱ ≈ 1. Since then both dominating transport mechanisms, turbulent advection and CR streaming, are adiabatic in nature, we can translate the CR density profile into a profile of the spectral normalisation simply by using C(r) = C₀   (ϱ(r)/ϱ₀)^β_cr.

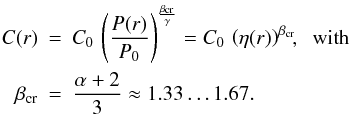

For our beta-profile cluster this yields $\begin{array}{ccc}\mathit{C}\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& {\mathit{C}}_{\mathrm{0}}\hspace{0.17em}{\left(\mathrm{1}\mathrm{+}\frac{{\mathit{r}}^{\mathrm{2}}}{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}\right)}^{\mathrm{-}{\mathit{\beta }}_{\mathrm{C}}}\hspace{0.17em}\exp \left(\frac{\mathit{r}}{{\mathit{r}}_{\mathrm{\ast }}}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cr}}\right)\mathit{,}\mathrm{with}\\ {\mathit{\beta }}_{\mathrm{C}}& \mathrm{=}& \frac{\mathrm{3}}{\mathrm{2}}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\beta }}_{\mathit{\varrho }}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cr}}\mathit{,}\mathrm{and}{\mathit{\beta }}_{\mathrm{cr}}\mathrm{=}\frac{\mathit{\alpha }\mathrm{+}\mathrm{2}}{\mathrm{3}}\end{array}$(34)within r ₋  < r < r ₊  and $\mathit{C}\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathrm{=}\mathit{C}\mathrm{\left(}{\mathit{r}}_{\mathrm{\pm }}\mathrm{\right)}$(35)for r > r ₊  and r < r ₋ , respectively.

When we compare the different stages of the same galaxy cluster during its evolution during and after a cluster merger, we normalise the CR populations to have a constant total CR number ${\mathit{N}}_{\mathrm{CR}}\mathrm{=}\mathrm{4}\hspace{0.17em}\mathit{\pi }\hspace{0.17em}{\mathrm{\int }}_{\mathrm{0}}^{{\mathit{R}}_{\mathrm{as}}}\mathrm{d}\mathit{r}\hspace{0.17em}{\mathit{r}}^{\mathrm{2}}\hspace{0.17em}\frac{\mathit{\varrho }\mathrm{\left(}\mathit{r}\mathrm{\right)}}{\mathit{m}}\mathrm{·}$(36)This is a conservative assumption, since during a cluster merger additional CRs will be injected, so that the CR content of pre-and post merger cluster should differ by some margin. The resulting CR density profiles are displayed in Fig. 4.

We will use this toy model in the following to illustrate the effect of the CR transport processes on CR signatures in clusters of galaxies. It is certainly a very idealised picture in many respects. For example, the quasi stationary configuration implied is probably never reached in real clusters. The finite lifetimes of any cluster weather phase probably leads to a constantly changing CR profile. Nevertheless, it can be regarded as an extreme model, being the opposite extreme to the case of strict CR confinement in finite magnetic structures discussed in the previous section. Thus we have two scenarios, which probably bracket the physical reality in galaxy clusters:

• 1.

  CR are confined in closed magnetic structures, which due totheir radial extension, connect regions with some pressure ra-tio and therefore can be characterised by a CR compression ratio$\mathit{X}\mathrm{=}\mathrm{(}{\mathit{P}}_{\mathrm{1}}\mathit{/}{\mathit{P}}_{\mathrm{2}}{\mathrm{)}}^{\frac{\mathrm{1}}{\mathit{\gamma }}}$, as discussed in Sect. 3.4. We refer to this as the case of confined CR;

• 2.

  CR are able to stream relative freely (with reduced effective streaming velocity) throughout the whole cluster volume, and manage to establish the stationary profiles described in this Sect. 3.6. We refer to this as the case of mobile CR.

In the following, we discuss the observational signatures of these two extreme cases. But first, we should look at the time-scales required to establish those steady-state profiles.

3.7. Time scales

The profiles calculated in the previous section are mere illustrations of how the CR distribution might look like. In reality, the CR profiles will always be in an intermediate state between such profiles, since the cluster turbulence is never stationary and also does not exhibit the same velocities at all radii. In order to see if these profiles can be used to guide our intuition, we have to see if the real CR distribution is able to change significantly within a sufficiently short time.

Radio halo switch off: We assume that at a certain moment CR streaming has become the dominant transport mechanism, removing CRs especially from the center. In order to diminish or extinguish a radio halo, the central CR density in a cluster might fall by a factor of X = 2 or X = 10, respectively. If we approximate the central CR distribution as a homogeneous sphere with radius r_c, this requires an increase of the radius to r = X^1/3   r_c = 1.26   r_c or 2.15   r_c, respectively. Thus, the CR have to stream a distance of 0.26...1.15   r_c, which takes them t = (0.06...0.28)/α_st Gyr, respectively, for a sound speed of c_s = 1000   km   s^-1 and r_c = 250   kpc. Note, that the CR normalisation drops by a larger factor X^(α + 2)/3 ≈ X^1.5 = 3...30, respectively, due to the effect of adiabatic energy losses.

As we will see in Sect. 4.2, this corresponds to a decrease in radio flux in the hadronic model by at least a factor X^1.5...3 = 3...1000, depending on the central magnetic field strength and the expansion factor. Thus, a switch off of cluster radio halos on timescales below a Gyr can be expected even in case that α_st < 1, as long it is not too low (α_st > 0.06...0.26).

In the re-acceleration model, the radio halo switches off with the radio halo CRe cooling timescale of about 0.1 Gyr the moment the re-acceleration stops to operate, irrespective if there is CRe transport from the outside or not.

Radio halo switch on: Both radio halo models, the hadronic and the re-acceleration one, require a seed CR population to form a radio halo, either protons or electrons, respectively. Again, transport over a core radius is required in order to pump CRs into the cluster center. The timescale for this is $\mathit{t}\mathrm{=}{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}\mathit{/}{\mathit{\kappa }}_{\mathrm{tu}}\mathrm{=}\mathrm{0.73}\mathit{/}\mathrm{(}{\mathit{\alpha }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}\mathrm{)}$ Gyr, and therefore sufficiently short if the turbulence is sufficiently transsonic. The initial transport of CR into the cluster center during a merger is probably poorly described by our turbulent diffusion model. It might be proper to assume that the CR just have to be advected by a coherent flow through the cluster core, so that t = 2   r_c/υ_tu = 0.5/α_tu   Gyr. However, realistic descriptions should use 3-d numerical hydrodynamical simulations and are therefore beyond the scope of this initial paper on this subject.

To conclude, the assumption of a switch-on/off mechanism for radio halos by CR transport mechanism, which operates on timescales below a Gyr, is realistic. The above calculated CR profiles can therefore provide us with useful guidance, at least for the cluster centers.

Fig. 5 Left: gamma-ray emissivity profiles for the CR distributions in Fig. 4 and X-ray emissivity profile of the ICM in grey. Emissivities are normalised to the central emissivity of a cluster with γtu = ∞. Right: total gamma-ray flux due to hadronic CRp interactions with the ICM nucleons as a function of γtu = τst/τad and for α = 2.25, 2.5, and 2.75 (solid, dashed, and dashed-dotted lines, respectively). Normalised to Lγ for γtu = ∞. (βcl = 0.8, Ras = 10).

4. Implications for thermal and non-thermal emission

In the following we illustrate the consequences of CR transport for the gamma-ray and radio halo emission of clusters, and for the heating of cluster cool cores using the two scenarios described above: confined and mobile CRs.

4.1. Gamma-rays

The gamma-ray emissivity of a power law CRp spectrum as in Eq. (6) is ${\mathit{\lambda }}_{\mathit{\gamma }}\mathrm{=}{\mathit{A}}_{\mathit{\gamma }}\hspace{0.17em}\mathit{C}\hspace{0.17em}{\mathit{\varrho }}_{\mathrm{gas}}\mathit{,}$(37)where A_γ is provided in Appendix A and depends on the spectral index and the gamma-ray energy window considered, and ϱ_gas is the gas mass density. The gamma-ray emissivity of a cluster with constant metallicity (ϱ_gas(r) = μ   n_e(r), with μ the gas mass per electron) is therefore ${\mathit{L}}_{\mathit{\gamma }}\mathrm{=}\mathrm{\int }\mathrm{d}\mathit{V}\hspace{0.17em}{\mathit{\lambda }}_{\mathit{\gamma }}\mathrm{=}\mathrm{4}\hspace{0.17em}\mathit{\pi }\hspace{0.17em}{\mathit{A}}_{\mathit{\gamma }}\hspace{0.17em}\mathit{\mu }\hspace{0.17em}{\mathrm{\int }}_{\mathrm{0}}^{{\mathit{R}}_{\mathrm{shock}}}\mathrm{d}\mathit{r}\hspace{0.17em}{\mathit{r}}^{\mathrm{2}}\hspace{0.17em}\mathit{C}\mathrm{\left(}\mathit{r}\mathrm{\right)}\hspace{0.17em}{\mathit{n}}_{\mathrm{e}}\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathit{.}$(38)If we now assume the case of confined CRp, which expand upon vanishing turbulence by a factor X ≈ 2, we find the gamma-ray emissivity to be reduced by the factor $\frac{{\mathit{L}}_{\mathit{\gamma }}^{\mathrm{\prime }}}{{\mathit{L}}_{\mathit{\gamma }}}\mathrm{=}{\mathit{X}}^{\mathrm{-}\frac{\mathit{\alpha }\mathrm{+}\mathrm{2}}{\mathrm{3}}}\mathrm{\approx }{\mathrm{2}}^{-1.5}\mathrm{\approx }\mathrm{0.35.}$(39)We note that the effect of lowering the target density at the location of the relaxed CRs is exactly canceled by the increase in volume. Thus, only a moderate reduction of the gamma-ray flux has to be expected, which is good news for the gamma-ray detectability of galaxy clusters.

In case of mobile CR, the difference in gamma-ray luminosity between turbulent and quiet clusters is expected to be larger, but apparently less than an order of magnitude, as can be seen from Fig. 5.

4.2. Radio halos

4.2.1. Hadronic model

Fig. 6 Left: radio emissivity profiles for the cluster shown in Fig. 4 assuming the same magnetic field profiles with B0 = 6   μG and δB = 0. Emissivities are normalised to the central radio emissivity of a cluster with γtu = ∞. The X-ray profile is shown in grey. Right: total radio flux due to hadronic CRp interactions with the ICM nucleons as a function of γtu = τst/τad and for different dependencies of the magnetic field strength on the turbulence level as parametrised by δB = 0, 1, and 2 (solid, dashed, and dashed-dotted lines, respectively). Normalised to Lν for γtu = 10. (βcl = 0.8, Ras = 10, B0 = 6   μG, α = 2.5, z = 0).

Hadronic CRp collisions produce also charged pions, which decay into relativistic e^±. These cool due to inverse Compton scattering on CMB photons and synchrotron losses and establish a steady state spectrum which is steeper than that of the parent protons by one, α_e = α + 1. The radio synchrotron emission of these electrons has a spectrum with index α_ν = (α_e − 1)/2 = α/2 ≈ 1.15...1.25. The radio luminosity at frequency ν per unit frequency interval is $\begin{array}{ccc}{\mathit{L}}_{\mathit{\nu }}& \mathrm{=}& {\mathit{A}}_{\mathit{\nu }}\mathrm{\int }\mathrm{d}\mathit{V}\hspace{0.17em}{\mathit{C}}_{\mathrm{p}}\hspace{0.17em}{\mathit{\varrho }}_{\mathrm{gas}}\hspace{0.17em}\frac{{\mathit{\epsilon }}_{\mathit{B}}}{{\mathit{\epsilon }}_{\mathit{B}}\mathrm{+}{\mathit{\epsilon }}_{\mathrm{ph}}}{\left(\frac{{\mathit{\epsilon }}_{\mathit{B}}}{{\mathit{\epsilon }}_{{\mathit{B}}_{\mathrm{c}}}}\right)}^{\frac{\mathit{\alpha }\mathrm{-}\mathrm{2}}{\mathrm{4}}}\mathit{,}\end{array}$(40)where the abbreviations A_ν and ε_Bc are defined in Appendix  B. These quantities are unchanged by CRp transport processes, and can be regarded to be constant, in our context. ε_ph is the energy density of the photon field on which the CRe scatter. If this is dominated by the CMB, it corresponds to an equivalent field strength of B_cmb = 3.27   (1 + z)²   μG, where z is the redshift. At locations where the ICM fields are stronger than this, synchrotron cooling dominates, and the radio emissivity depends only weakly on the magnetic fields in which the CRp reside. Where B is below B_cmb, IC scattering is the dominant loss channel, and the radio flux is very sensitive to the field strength.

When the cluster turbulence decays, the CRp occupy mostly the weaker magnetised regions of their enclosing field structures, in the confined CR scenario. Furthermore, magnetic fields tend to become weaker, since the magnetic small scale dynamo maintaining the fields is less powerful. We model these effects by ${\mathit{\epsilon }}_{\mathit{B}}\mathrm{\to }{\mathit{\epsilon }}_{\mathit{B}}^{\mathrm{\prime }}\mathrm{=}{\mathit{\epsilon }}_{\mathit{B}}\hspace{0.17em}{\mathit{X}}^{\mathrm{-}\frac{\mathrm{4}}{\mathrm{3}}}\hspace{0.17em}{\mathit{X}}_{\mathrm{tu}}^{-1}\mathit{,} \mathrm{with} {\mathit{X}}_{\mathrm{tu}}\mathrm{=}\frac{{\mathit{\epsilon }}_{\mathrm{tu}}^{\mathrm{\prime }}}{{\mathit{\epsilon }}_{\mathrm{tu}}}\mathrm{=}\frac{{{\mathit{\alpha }}^{\mathrm{\prime }}}_{\mathrm{tu}}^{\mathrm{2}}}{{\mathit{\alpha }}_{\mathrm{tu}}^{\mathrm{2}}}\mathit{,}$(41)the ratio of the turbulence after and during the merger. In case the magnetic fields are relatively weak (B ≪ B_cmb), the cluster radio luminosity changes due to the CR profile relaxation according to $\frac{{\mathit{L}}_{\mathit{\nu }}^{\mathrm{\prime }}}{{\mathit{L}}_{\mathit{\nu }}}\mathrm{\approx }{\mathit{X}}^{\mathrm{-}\frac{\mathrm{2}}{\mathrm{3}}\hspace{0.17em}\mathrm{(}\mathit{\alpha }\mathrm{+}\mathrm{2}\mathrm{)}}\hspace{0.17em}{\mathit{X}}_{\mathrm{tu}}^{\mathrm{-}\frac{\mathit{\alpha }\mathrm{+}\mathrm{2}}{\mathrm{4}}}\mathrm{\approx }{\mathit{X}}^{-3}\hspace{0.17em}{\mathit{X}}_{\mathrm{tu}}^{-1.125}\mathrm{\approx }\mathrm{0.06.}$(42)In the approximations, we used α = 2.5, X ≈ 2, and X_tu = 2. The latter is probably an underestimate of the turbulence ratio, see Battaglia et al. (2009). If the cluster radio emission is dominated by regions with strong magnetic fields (B ≫ B_cmb), we find $\frac{{\mathit{L}}_{\mathit{\nu }}^{\mathrm{\prime }}}{{\mathit{L}}_{\mathit{\nu }}}\mathrm{=}{\mathit{X}}^{\mathrm{-}\frac{\mathrm{4}}{\mathrm{3}}}\hspace{0.17em}{\mathit{X}}_{\mathrm{tu}}^{\mathrm{-}\frac{\mathit{\alpha }\mathrm{-}\mathrm{2}}{\mathrm{4}}}\mathrm{\approx }{\mathit{X}}^{-1.333}\hspace{0.17em}{\mathit{X}}_{\mathrm{tu}}^{-0.125}\mathrm{\approx }\mathrm{0.36.}$(43)Thus, in the confined CR scenario a radio flux decrement of at least a factor three, but more plausibly by a larger margin, can be expected.

In case of a mobile CRp population, the variation of the radio flux as a function of turbulence strength is much larger. It depends on the magnetic field strength, and especially on how much the magnetic fields change in response to a change of the turbulence strength. Magnetic field generated by a saturated state of a small scale dynamo should have ${\mathit{\epsilon }}_{\mathit{B}}\mathrm{\propto }{\mathit{\epsilon }}_{\mathrm{tu}}\mathrm{\propto }{\mathit{\alpha }}_{\mathrm{tu}}^{\mathrm{2}}$. However, since the magnetic field strength probably requires some time to reach the saturation state, we model also weaker dependencies by adopting ${\mathit{\epsilon }}_{\mathit{B}}\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathrm{=}\frac{{\mathit{B}}_{\mathrm{0}}^{\mathrm{2}}}{\mathrm{8}\hspace{0.17em}\mathit{\pi }}\hspace{0.17em}\frac{\mathit{n}\mathrm{\left(}\mathit{r}\mathrm{\right)}}{{\mathit{n}}_{\mathrm{0}}}\hspace{0.17em}{\left(\frac{{\mathit{\gamma }}_{\mathrm{tu}}}{\mathrm{10}}\right)}^{{\mathit{\delta }}_{\mathit{B}}}\mathit{,}$(44)with B₀ = 6   μG and using δ_B = 0, 1, as well as 2 for no, a moderate and a strong dependence of the magnetic field strength on the turbulence level, respectively. Since we expect the streaming velocity υ_st to depend strongly on the turbulence level in an inverse fashion, γ_tu = υ_tu/υ_st might change much stronger than υ_tu, and therefore we expect δ_B < 2. The resulting radio luminosities are shown in Fig. 6.

It is obvious from this discussion that a rapid drop in radio luminosity after the turbulent merger phase by one order of magnitude or more, can easily be achieved; moreover, it is actually expected.

4.2.2. Re-acceleration model

The presence, luminosity, and spectrum of a radio halo in the re-acceleration model depends on two things: the availability of a low energy CRe pool and the strength of the wavefield providing the CRe acceleration. To calculate the latter is a complex task, well beyond the scope of this paper. For magnetosonic waves it is calculated in Brunetti & Lazarian (2007, 2011), where it is shown, that if a significant faction of about 20% of the cluster pressure is in form of such waves (and their spectrum is Kraichnan-like and reaches down to small scales), electrons are re-accelerated up to 10 GeV, the radio observable part of the CRe spectrum in clusters. It should just be noted, that the generation of magnetosonic waves with the Lighthill mechanism scales with roughly the second power of the turbulence energy density (Lighthill 1952, 1954) and therefore can be expected to vary largely between merging and relaxed clusters.

Since the radio emitting CRe loose their energy within 0.1 Gyr, an arbitrary strong decline of the radio power is possible in this model, if no CRp population is present replenishing CRe via the hadronic mechanism. In an quiescent phase of the cluster, any low energy CRe population in the cluster center is probably completely diminished by the severe Coulomb losses (see Fig. 2), and has to be re-established by advection from the outer regions with less severe Coulomb losses during the next turbulent merger. Thus, large variations of the radio luminosity in the re-acceleration model can be expected, as shown by Brunetti et al. (2009).

4.3. Cool core heating

The energy lost by CR during streaming heats the ICM, since the plasma waves excited by the CR dissipate. The origin of this energy is, in absence of CR sources pumping fresh relativistic particles into the ICM, the kinetic energy of ICM gas flows. Thus, the heating due to CR streaming is not providing an additional heat source to the ICM, since the kinetic energy of the gas will be dissipated via a turbulent cascade anyway otherwise, but CR streaming provides a different channel for this energy dissipation, with a different spatial footprint.

As we show in the following, the heating profile of CR streaming is centrally concentrated, and therefore may play a role in stabilizing cool core regions of galaxy clusters. In cool cores, the coldest gas is at the center and is therefore also the densest, leading to the shortest cooling time. In order that no cooling catastrophe occurs, as observations indicate, this central gas has to be heated preferentially.

In order to get an idea on the heating profile due to CR streaming, we adopt the simple picture for the CR cluster profile of Sect. 3.6 for a model of an individual cool core. Thus we describe the cool core with a beta-profile with small r_c ~ 10 kpc. However, instead of assuming a fixed number of CRs within the cool core region, we assume that the non-cool core region provides an environmental CR floor with fixed CR density ϱ_∞, to be dragged into the cool core via the gas motion therein. We still model this gas motion again as isotropic turbulence, but keep in mind, that in reality it may have more a convective structure, since it is probably excited by rising radio bubbles from the central galaxies. These bubbles are one way – if not the dominant way – of the central galaxy to provide energetic feedback to the cool core preventing catastrophic cooling. CRs escaping from such bubbles will add to the heating, as discussed in the references given in footnote ⁴. We ignore here this contribution, in order to see the contribution to cool core heating from the interplay of CR advection and streaming alone.

The energy deposition of a radially streaming CR with momentum p   m   c is $\begin{array}{ccc}\mathit{Ė}\mathrm{cr}\mathrm{\left(}\mathit{p}\mathrm{\right)}& \mathrm{=}& \frac{\mathit{\partial }{\mathit{E}}_{\mathrm{cr}}\mathrm{\left(}\mathit{p}\mathrm{\right)}}{\mathit{\partial p}}\mathit{ṗ}\mathrm{=}\mathrm{-}\frac{{\mathit{p}}^{\mathrm{2}}\hspace{0.17em}\mathit{m}\hspace{0.17em}{\mathit{c}}^{\mathrm{2}}}{\mathrm{3}\hspace{0.17em}\sqrt{\mathrm{1}\mathrm{+}{\mathit{p}}^{\mathrm{2}}}}\hspace{0.17em}\mathbf{\nabla }\mathrm{·}{\upsilon }\mathrm{st}\\ & \mathrm{=}& \mathrm{-}\frac{\mathrm{2}\hspace{0.17em}{\mathit{p}}^{\mathrm{2}}\hspace{0.17em}\mathit{m}\hspace{0.17em}{\mathit{c}}^{\mathrm{2}}}{\mathrm{3}\hspace{0.17em}\sqrt{\mathrm{1}\mathrm{+}{\mathit{p}}^{\mathrm{2}}}}\hspace{0.17em}\left(\frac{{\mathit{\upsilon }}_{\mathrm{st}}}{\mathit{r}}\mathrm{+}\frac{\mathrm{1}}{\mathrm{2}}\hspace{0.17em}\frac{\mathit{\partial }{\mathit{\upsilon }}_{\mathrm{st}}}{\mathit{\partial r}}\right)\mathrm{·}\end{array}$(45)If we integrate this over the spectrum given in Eq. (6) (and thereby restricting our discussion to the energetically more important CRp), while introducing a low momentum cutoff p₀, to be on the safe side, we find the heating power to be $\mathit{Ė}\mathrm{st}\mathrm{=}\frac{\mathit{C}\mathrm{\left(}\mathit{r}\mathrm{\right)}\hspace{0.17em}\mathit{m}\hspace{0.17em}{\mathit{c}}^{\mathrm{2}}}{\mathrm{3}}\hspace{0.17em}{\mathrm{ℬ}}_{\mathit{q}}\left(\frac{\mathit{\alpha }\mathrm{-}\mathrm{2}}{\mathrm{2}}\mathit{,}\frac{\mathrm{3}\mathrm{-}\mathit{\alpha }}{\mathrm{2}}\right)\hspace{0.17em}\left(\frac{{\mathit{\upsilon }}_{\mathrm{st}}}{\mathit{r}}\mathrm{+}\frac{\mathrm{1}}{\mathrm{2}}\hspace{0.17em}\frac{\mathit{\partial }{\mathit{\upsilon }}_{\mathrm{st}}}{\mathit{\partial r}}\right)\mathit{,}$(46)with ℬ_q(a,b) denoting the incomplete Beta-function, and $\mathit{q}\mathrm{=}\mathrm{(}\mathrm{1}\mathrm{+}{\mathit{p}}_{\mathrm{0}}^{\mathrm{2}}\mathrm{(}\mathit{r}\mathrm{)}{\mathrm{)}}^{-1}$. Within r ₋  < r < r ₊  we can drop the ∂υ_st/∂r term, since there υ_st = const. Outside of this range, the steady state solution requires ${\mathit{\upsilon }}_{\mathrm{st}}\mathrm{=}\mathrm{-}{\mathit{\upsilon }}_{\mathrm{ad}}\mathrm{=}{\mathit{\kappa }}_{\mathrm{tu}}\hspace{0.17em}\frac{\mathit{\partial }}{{\mathit{\partial }}_{\mathit{r}}}\hspace{0.17em}\ln \left(\frac{\mathit{\varrho }}{\mathit{\eta }}\right)\mathrm{=}\mathrm{-}{\mathit{\kappa }}_{\mathrm{tu}}\hspace{0.17em}\frac{\mathit{\partial }\hspace{0.17em}\mathit{\eta }}{\mathit{\eta }\hspace{0.17em}{\mathit{\partial }}_{\mathit{r}}}\mathrm{=}\frac{\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\kappa }}_{\mathrm{tu}}}{\mathit{\gamma }\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}}\hspace{0.17em}\frac{\mathit{r}\mathit{/}{\mathit{r}}_{\mathrm{c}}}{\mathrm{1}\mathrm{+}{\mathit{r}}^{\mathrm{2}}\mathit{/}{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}\mathit{,}$since we assumed a constant (time-averaged) CRp density profile there.

Fig. 7 CR heating profiles due to CR streaming (upper black curves) and Coulomb losses (lower black curves) for the CR distributions resulting from different streaming velocities as indicated at curves, the turbulent heating profile (grey dashed line, calculated according to Enßlin et al. 2007), and the X-ray cooling profile (grey solid line). The adopted cool core parameters are n0 = 0.05cm-3, kT = 3   keV, rc = 10   kpc, υtu = 350   km   s-1, βϱ = 1, βcc = 0.4, Rcc = 10   rc, α = 2.5, and a CR to thermal energy ratio of εcr/εth = 0.15 at the outer radius of the cool core, Rcc, and less in the center (down to εcr/εth ≈ 0.01 for large αst). Since we assume the gas motions to be mostly convective, we set χtu = 10 to model an efficient radial transport. This implies αtu = 0.36 and κtu = 3.6 × 1030   cm2   s-1. We further have γtu = 2.4, 24, and 120 for αst = 0.5, 0.05, and 0.01, respectively. The total X-ray cooling luminosity of the cool core region is about 4.4 × 1043   erg   s-1. The heating power of the turbulence is about the same, but mostly going into outskirts of the cool core. The total CR heating power (streaming plus Coulomb) within the Rcc = 10   rc is 2.9, 2.4, and 0.8 × 1043   erg   s-1 for αst = 0.5, 0.05, and 0.01, respectively.

The low momentum cutoff ²¹ depends weakly on the position via p₀(r) = p₀   (n(r)/n₀)^1/3. We use p₀(R_cc) = 1, which roughly mimics the Coulomb cooling cutoff the CRp spectrum develops (Enßlin et al. 2007).

As can be seen in Fig. 7 CRp heating is strongly enhanced centrally. This is not only due to the central peak of the CRp density, but mostly due to the 1/r factor caused by the streaming for r ₋  < r < r ₊ . But even for completely flat CRp profiles (see curve α_st = 0.5), where this 1/r-factor does not apply, there is a centrally enhanced heating. This results from the PdV-work done by the gas motion while trying to drag in the CRs, which is instantaneously dissipated via streaming. The CRp heating decreases with decreasing streaming speed, since without streaming no energy can be dissipated through the excitation of plasma waves.

Fig. 8 Central CR heating within rc of the cool core in Fig. 7 as a function of the CRp streaming velocity. The CR streaming heating power decreases with decreasing streaming velocity. For αst ~ 0.1 this trend is weakened by the build up of a centrally enhanced CRp population. For αst ~ 1 the streaming velocity is so large, that the advective work on the CRp population is instantaneously dissipated, and the heat input is therefore independent of αst in this regime. The build up of the central CR population with decreasing αst can be seen in the Coulomb heating rate.

Thus, the CRs collect some fraction of the kinetic energy distributed through the cool core, and release it preferentially in the cool core center, whereas turbulent cascades just heat each mass element with the same rate (in our simplified turbulent cool core model): $\mathit{\epsilon ̇}\mathrm{tu}\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathrm{=}\frac{{\mathit{E}}_{\mathrm{tu}}\mathrm{\left(}\mathit{r}\mathrm{\right)}}{{\mathit{\tau }}_{\mathrm{tu}}}\mathrm{=}\frac{{\mathit{\upsilon }}_{\mathrm{tu}}^{\mathrm{3}}}{\mathit{\pi }\hspace{0.17em}{\mathit{L}}_{\mathrm{tu}}}\hspace{0.17em}{\mathit{\varrho }}_{\mathrm{gas}}\mathrm{\left(}\mathit{r}\mathrm{\right)}\mathit{.}$(47)The parameters of our cool core example in Fig. 7 were chosen to indicate that CRp heating is a potentially interesting mechanism. We could have picked parameters for which this heating would be dominant or insignificant in the center (whereas the latter is more easily achieved). It is not clear to us at the moment if the self-regulation processes in cool cores drive the system to a state where CRp streaming heating is significant or not. This depends to some degree on the value of α_st, which we do not know for this environment, as well as on the amount of CRp in the surrounding of the cool core and other cool core parameters. The dependence of the central CRp heating rate on α_st is shown in Fig. 8 for the same cool core parameters. For a sufficiently large streaming speed (α_st > 0.05) the heating rate due to streaming is actually relatively insensitive to this speed and dominates the central heating in this particular cool core.

In order to see under which circumstances CRp streaming can be an significant heating mechanism, we have to compare the dependencies of the cooling and heating rates with cool core parameters. To simplify the discussion, we ignore line cooling (as we did in Figs. 7 and 8) and assume maximally efficient streaming and thus a spatially flat CRp profile within the cool core region. With these simplifications, the profiles of X-ray cooling , of turbulent heating , and the heating by CRp streaming , are given by $\begin{array}{ccc}\mathit{\epsilon ̇}\mathrm{X}\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& \mathrm{-}{\mathrm{\Lambda }}_{\mathrm{0}}\hspace{0.17em}\mathrm{(}\mathit{kT}{\mathrm{)}}^{\frac{\mathrm{1}}{\mathrm{2}}}\hspace{0.17em}{\mathit{n}}_{\mathrm{0}}^{\mathrm{2}}\hspace{0.17em}{\mathrm{(}\mathrm{1}\mathrm{+}{\mathit{r}}^{\mathrm{2}}\mathit{/}{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}^{\mathrm{)}}}^{\mathrm{-}\mathrm{3}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cc}}}\\ \mathit{\epsilon ̇}\mathrm{tu}\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& \frac{\mathit{\mu }\hspace{0.17em}{\mathit{n}}_{\mathrm{e}\mathit{,}\mathrm{0}}\hspace{0.17em}{\mathit{\upsilon }}_{\mathrm{tu}}^{\mathrm{3}}}{\mathit{\pi }\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}}\hspace{0.17em}{\mathrm{(}\mathrm{1}\mathrm{+}{\mathit{r}}^{\mathrm{2}}\mathit{/}{{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}^{\mathrm{)}}}^{\mathrm{-}\frac{\mathrm{3}}{\mathrm{2}}\hspace{0.17em}{\mathit{\beta }}_{\mathrm{cc}}}\\ \mathit{\epsilon ̇}\mathrm{st}\mathrm{\left(}\mathit{r}\mathrm{\right)}& \mathrm{=}& \frac{{\mathit{\beta }}_{\mathrm{cl}}\hspace{0.17em}{\mathit{\upsilon }}_{\mathrm{tu}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}}{\mathit{\gamma }\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}}\hspace{0.17em}{\mathit{P}}_{\mathrm{cr}\mathit{,}\mathrm{0}}\hspace{0.17em}\frac{\mathrm{3}\mathrm{+}{\mathit{r}}^{\mathrm{2}}\mathit{/}{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}}{\mathrm{(}\mathrm{1}\mathrm{+}{\mathit{r}}^{\mathrm{2}}\mathit{/}{\mathit{r}}_{\mathrm{c}}^{\mathrm{2}}{\mathrm{)}}^{\mathrm{2}}}\mathrm{·}\end{array}$(48)Here we used the formula for the pressure of a CRp spectrum with a power-law momentum distribution as given in Enßlin et al. (2007), wrote μ ≈ m_p for the mean molecular weight per electron, and introduced the X-ray cooling constant Λ₀ = 5.96 × 10^-24   erg   s^-1   cm³   (keV) ^− 1/2 for a metallicity of 0.3 solar.

Heating by CRp streaming can therefore become comparable to the cooling in the center if the CRp pressure is relatively high, turbulence is strong, the cool core radius is small, and the electron density is low. The ratio of CRp streaming heating and X-ray cooling scales as $\frac{\mathit{\epsilon ̇}\mathrm{st}\mathrm{\left(}\mathrm{0}\mathrm{\right)}}{\mathrm{\left|}\mathit{\epsilon ̇}\mathit{X}\mathrm{\right(}\mathrm{0}\mathrm{\left)}\mathrm{\right|}}\mathrm{\propto }\frac{{\mathit{P}}_{\mathrm{cr}\mathit{,}\mathrm{0}}}{{\mathit{P}}_{\mathrm{th}\mathit{,}\mathrm{0}}}\hspace{0.17em}\frac{{\mathit{\beta }}_{\mathrm{cc}}\hspace{0.17em}{\mathit{\alpha }}_{\mathrm{tu}}{\mathit{\chi }}_{\mathrm{tu}}\hspace{0.17em}\mathit{kT}}{{\mathit{n}}_{\mathrm{e}}\hspace{0.17em}{\mathit{r}}_{\mathrm{c}}}\mathit{,}$50whereas that with turbulent heating scales as $\frac{\mathit{\epsilon ̇}\mathrm{st}\mathrm{\left(}\mathrm{0}\mathrm{\right)}}{\mathit{\epsilon ̇}\mathrm{tu}\mathrm{\left(}\mathrm{0}\mathrm{\right)}}\mathrm{\propto }\frac{{\mathit{P}}_{\mathrm{cr}\mathit{,}\mathrm{0}}}{{\mathit{P}}_{\mathrm{th}\mathit{,}\mathrm{0}}}\hspace{0.17em}\frac{{\mathit{\beta }}_{\mathrm{cc}}\hspace{0.17em}{\mathit{\chi }}_{\mathrm{tu}}^{\mathrm{2}}}{{\mathit{\alpha }}_{\mathrm{tu}}^{\mathrm{2}}}\mathrm{·}$(50)From this we expect that heating by CRp streaming is most likely to be of importance in weak cool cores, where the central electron density is not that extreme, the cool core radius is small, and the temperature is still relatively high. A strong convective structure of the turbulence with χ_tu > 1 is also very beneficial for heating by CRp streaming, especially to boost it in comparison to turbulent heating. Thus, we speculate that CR streaming might moderate the initial growth of cool cores, whereas a massive cool core is more likely stabilised by the dissipation of stronger turbulence and other processes not discussed here (dissipation of weak shock waves, radiative heating, ...). The cool core parameters of Figs. 7 and 8 were actually chosen to represent such a case of a weak cool core with strongly convective turbulence.

Note, that if CRp diffusion would also be a significant transport mechanism in cool cores, we expect some level of Fermi I CRp acceleration to take place, as discussed in Sect. 3.5. This might even allow that a sufficiently strong CRp population builds up automatically within the cool core to counterbalance central cooling, even if the seed CRp population was not very energetic. If such an energetic population could be established this way depends also on the escape rate of CRp from the cool core, a quantity we do not know with our limited knowledge on the magnetic topology in such environments. One might speculate if the presence of radio-mini halos in some cool cores has something to do with this possible CR acceleration mechanism.

5. Discussion

We argue that streaming is an important CR transport mechanism in galaxy clusters. It tends, as CR diffusion, to establish a spatially flat CR profile, and therefore to drive CRs out of the cluster core. This can explain why radio halos are not found in every cluster, although simulations indicate that a sufficient number of CR protons should have been accumulated in clusters for this.

CR advection, on the other hand, tends to produce centrally enhanced CR profiles, as any turbulent mixing process in a stratified atmosphere tries to establish a constant abundance profile, so that the density of the advected quantity follows the density of the fluid.

Thus, CR advection and streaming are counteracting transport mechanisms. Whenever the former dominates, centrally enhanced profiles are established, and whenever streaming is more important, a flat profile results. The crucial quantity is the advective-to-streaming-velocity ratio, γ_tu = υ_tu/υ_st.

The advective velocities in galaxy clusters are comparable to the sound speed during cluster merger, and less when the cluster relaxes after the merger. The streaming velocity is poorly known. On a microscopic scale, it might be of the order of the sound speed, or even much larger, if the plasma wave turbulence level is low. Macroscopically it might be reduced by a large factor from its microscopic value, due to magnetic trapping of CR in flux tubes and the slow cross field diffusion required to escape. Also this topological reduction factor for the streaming speed should depend on the level of turbulence that is present in clusters.

Thus, there are three factors simultaneously increasing γ_tu = υ_tu/υ_st when the cluster turbulence increases: the turbulent velocities increase, the microscopic streaming speed decreases due to larger level of plasma waves, and the macroscopic streaming speed is further decreased due to a more complex magnetic topology. Taken together, the combination of these effects should produce a significant variation of γ_tu between merging and relaxed clusters.

As a result of this, merging clusters should have a much more centrally concentrated CR population than relaxed ones. This leads naturally to a bimodality of their gamma-ray and radio synchrotron emissivities due to hadronic interactions of CR protons. Also in the re-acceleration model of cluster radio halos these transport processes should be essential, since the re-accelerated CR electron populations in the dense cluster centers is probably too vulnerable to Coulomb losses, to survive periods without significant re-acceleration. Transport of the longer living electrons at the cluster outskirts into the cluster center during cluster merger would circumvent this problem.

Although we did not work this out in detail, it should be noted that we expect an energy dependence of the macroscopic CR streaming speed, which then should lead to a spatial differentiation of the spectral index of the CRp population and any secondary radio halo emission. Such spectral index variation in the radio halo should become especially strong during phases of outstreaming CRp, i.e. when a radio halo dies due to the decay of the cluster turbulence.

We have also shown that CR streaming in cluster cool cores can help to dissipate the turbulent energy preferentially in the cool core center, and thereby potentially help to stabilise cool cores against a cooling instability. The CR population in cool cores required for this could be either dragged into the cool core by turbulent transport or be self-maintained by ongoing Fermi I acceleration if CR diffusion is also an important CR propagation mode.

To conclude, we have shown that CR transport mechanisms seem to be essential to understand the non-thermal content and radiative signatures of clusters. Additionally, they might play a role in shaping the clusters’ thermal structure, especially in cool cores. Further investigations of CR transport in galaxy clusters using detailed three-dimensional numerical simulations of the involved processes are therefore necessary as well as an improved understanding of the dependence of the macroscopic CR streaming velocity on cluster weather conditions.

Acknowledgments

We thank Henrik Junklewitz and an anonymous referee for comments on the manuscript and Anvar Shukurov for good company during several of our discussions. All numerical calculations were done with the open source package Sage Version 4.3.3 (Stein et al. 2009). This research was performed in the framework of the DFG Forschergruppe 1254 “Magnetisation of Interstellar and Intergalactic Media: The Prospects of Low-Frequency Radio Observations”. This research has made use of NASA’s Astrophysics Data System Bibliographic Services.

References

Appendix A: Gamma-ray emissivity

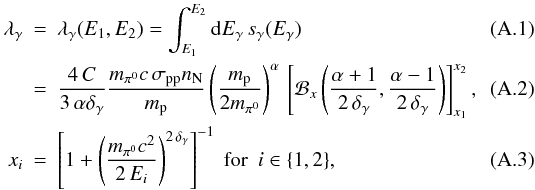

The gamma-ray emissivity in photon number between the energies E₁ and E₂ of a power law CRp spectrum as in Eq. (6) is according to Pfrommer et al. (2008) (which we follow here closely) $\begin{array}{ccc}{\mathit{\lambda }}_{\mathit{\gamma }}& \mathrm{=}& {\mathit{\lambda }}_{\mathit{\gamma }}\mathrm{\left(}{\mathit{E}}_{\mathrm{1}}\mathit{,}{\mathit{E}}_{\mathrm{2}}\mathrm{\right)}\mathrm{=}{\mathrm{\int }}_{{\mathit{E}}_{\mathrm{1}}}^{{\mathit{E}}_{\mathrm{2}}}\mathrm{d}{\mathit{E}}_{\mathit{\gamma }}\hspace{0.17em}{\mathit{s}}_{\mathit{\gamma }}\mathrm{\left(}{\mathit{E}}_{\mathit{\gamma }}\mathrm{\right)}\\ & \mathrm{=}& \frac{\mathrm{4}\hspace{0.17em}\mathit{C}}{\mathrm{3}\hspace{0.17em}\mathit{\alpha }{\mathit{\delta }}_{\mathit{\gamma }}}\frac{{\mathit{m}}_{{\mathit{\pi }}^{\mathrm{0}}}\mathit{c}\hspace{0.17em}{\mathit{\sigma }}_{\mathrm{pp}}{\mathit{n}}_{\mathrm{N}}}{{\mathit{m}}_{\mathrm{p}}}{\left(\frac{{\mathit{m}}_{\mathrm{p}}}{\mathrm{2}{\mathit{m}}_{{\mathit{\pi }}^{\mathrm{0}}}}\right)}^{\mathit{\alpha }}\hspace{0.17em}\left[{\mathrm{ℬ}}_{\mathit{x}}\left(\frac{\mathit{\alpha }\mathrm{+}\mathrm{1}}{\mathrm{2}\hspace{0.17em}{\mathit{\delta }}_{\mathit{\gamma }}}\mathit{,}\frac{\mathit{\alpha }\mathrm{-}\mathrm{1}}{\mathrm{2}\hspace{0.17em}{\mathit{\delta }}_{\mathit{\gamma }}}\right)\right]\begin{array}{}{\mathit{x}}_{\mathrm{2}}\\ {\mathit{x}}_{\mathrm{1}}\end{array}\mathit{,}\\ {\mathit{x}}_{\mathit{i}}& \mathrm{=}& {\left[\mathrm{1}\mathrm{+}{\left(\frac{{\mathit{m}}_{{\mathit{\pi }}^{\mathrm{0}}}{\mathit{c}}^{\mathrm{2}}}{\mathrm{2}\hspace{0.17em}{\mathit{E}}_{\mathit{i}}}\right)}^{\mathrm{2}\hspace{0.17em}{\mathit{\delta }}_{\mathit{\gamma }}}\right]}^{-1} \mathrm{for} \mathit{i}\mathrm{\in }\mathrm{\left\{}\mathrm{1}\mathit{,}\mathrm{2}\mathrm{\right\}}\mathit{,}\end{array}$where n_N = n_H + 4n_He = ρ_gas/m_p is the target density of nucleons in a fluid of primordial element composition, ${\mathit{\sigma }}_{\mathrm{pp}}\mathrm{\simeq }\mathrm{32}\mathrm{·}\mathrm{(}\mathrm{0.96}\mathrm{+}{\mathrm{e}}^{\mathrm{4.4}\hspace{0.17em}\mathrm{-}\hspace{0.17em}\mathrm{2.4}\hspace{0.17em}{\mathit{\alpha }}_{\mathrm{p}}}\mathrm{)}\mathrm{mbarn}$(A.4)the spectrally weighted hadronic cross section, m_π⁰c² ≃ 135   MeV the rest mass of a neutral pion, and the shape parameter ${\mathit{\delta }}_{\mathit{\gamma }}\mathrm{\simeq }\mathrm{0.14}\hspace{0.17em}{\mathit{\alpha }}_{\mathit{\gamma }}^{-1.6}\mathrm{+}\mathrm{0.44.}$(A.5)There is a detailed discussion in Pfrommer & Enßlin (2004a) how the γ-ray spectral index α_γ relates to the spectral index of the parent CRp population α. Here, we assume α_γ = α. Thus we find ${\mathit{A}}_{\mathit{\gamma }}\mathrm{=}\frac{\mathrm{4}}{\mathrm{3}}\frac{{\mathit{m}}_{{\mathit{\pi }}^{\mathrm{0}}}\mathit{c}\hspace{0.17em}{\mathit{\sigma }}_{\mathrm{pp}}}{\mathit{\alpha }\hspace{0.17em}{\mathit{\delta }}_{\mathit{\gamma }}}{\left(\frac{{\mathit{m}}_{\mathrm{p}}}{\mathrm{2}{\mathit{m}}_{{\mathit{\pi }}^{\mathrm{0}}}}\right)}^{\mathit{\alpha }}\hspace{0.17em}\left[{\mathrm{ℬ}}_{\mathit{x}}\left(\frac{\mathit{\alpha }\mathrm{+}\mathrm{1}}{\mathrm{2}\hspace{0.17em}{\mathit{\delta }}_{\mathit{\gamma }}}\mathit{,}\frac{\mathit{\alpha }\mathrm{-}\mathrm{1}}{\mathrm{2}\hspace{0.17em}{\mathit{\delta }}_{\mathit{\gamma }}}\right)\right]\begin{array}{}{\mathit{x}}_{\mathrm{2}}\\ {\mathit{x}}_{\mathrm{1}}\end{array}\mathrm{·}$(A.6)

Appendix B: Hadronic radio-synchrotron emissivity

The coefficient in Eq. (40) characterizing the radio-synchrotron emissivity of electrons injected from the decay of charged pions produced in hadronic CRp-gas collisions is according to Pfrommer et al. (2008) (which we follow here closely, but with slightly modified normalisation) ${\mathit{A}}_{\mathit{\nu }}\mathrm{=}\mathrm{4}\mathit{\pi }\hspace{0.17em}{\mathit{A}}_{{\mathit{E}}_{\mathrm{synch}}}\frac{{\mathrm{16}}^{\mathrm{2}\mathrm{-}{\mathit{\alpha }}_{\mathrm{e}}}{\mathit{\sigma }}_{\mathrm{pp}}\hspace{0.17em}{\mathit{m}}_{\mathrm{e}}\hspace{0.17em}{\mathit{c}}^{\mathrm{2}}}{\mathrm{(}{\mathit{\alpha }}_{\mathrm{e}}\mathrm{-}\mathrm{2}\mathrm{)}\hspace{0.17em}{\mathit{\sigma }}_{\mathrm{T}}\hspace{0.17em}{\mathit{\epsilon }}_{{\mathit{B}}_{\mathrm{c}}}\hspace{0.17em}{\mathit{m}}_{\mathrm{p}}}{\left(\frac{{\mathit{m}}_{\mathrm{p}}}{{\mathit{m}}_{\mathrm{e}}}\right)}^{{\mathit{\alpha }}_{\mathrm{e}}\mathrm{-}\mathrm{2}}{\left(\frac{{\mathit{m}}_{\mathrm{e}}{\mathit{c}}^{\mathrm{2}}}{\mathrm{GeV}}\right)}^{{\mathit{\alpha }}_{\mathrm{e}}\mathrm{-}\mathrm{1}}\mathit{,}$(B.1)with the dimensions  [ A_ν ]  = ergcm³s^-1Hz^-1 and the volume integral extends over the entire cluster.

The frequency ν dependent characteristic field strength B_c, and the scaling factor of the emitted energy per time ν^-1 and frequency A_Esynch are given by $\begin{array}{ccc}{\mathit{B}}_{\mathrm{c}}& \mathrm{=}& \sqrt{\mathrm{8}\mathit{\pi }\hspace{0.17em}{\mathit{\epsilon }}_{{\mathit{B}}_{\mathrm{c}}}}\mathrm{=}\frac{\mathrm{2}\mathit{\pi }\hspace{0.17em}{\mathit{m}}_{\mathrm{e}}^{\mathrm{3}}\hspace{0.17em}{\mathit{c}}^{\mathrm{5}}\hspace{0.17em}\mathit{\nu }}{\mathrm{3}\hspace{0.17em}\mathit{e}\mathrm{GeV}\mathrm{2}}\mathrm{\simeq }\mathrm{31}\left(\frac{\mathit{\nu }}{\mathrm{GHz}}\right) \mathit{\mu }\mathrm{G}\mathit{,}\\ {\mathit{A}}_{{\mathit{E}}_{\mathrm{synch}}}& \mathrm{=}& \frac{\sqrt{\mathrm{3}\mathit{\pi }}}{\mathrm{32}\mathit{\pi }}\frac{{\mathit{B}}_{\mathrm{c}}\hspace{0.17em}{\mathit{e}}^{\mathrm{3}}}{{\mathit{m}}_{\mathrm{e}}{\mathit{c}}^{\mathrm{2}}}\frac{{\mathit{\alpha }}_{\mathrm{e}}\mathrm{+}\frac{\mathrm{7}}{\mathrm{3}}}{{\mathit{\alpha }}_{\mathrm{e}}\mathrm{+}\mathrm{1}}\frac{\mathrm{\Gamma }\mathrm{(}{\frac{\mathrm{3}{\mathit{\alpha }}_{\mathrm{e}}\mathrm{-}\mathrm{1}}{\mathrm{12}}}^{\mathrm{)}}\mathrm{\Gamma }\mathrm{(}{\frac{\mathrm{3}{\mathit{\alpha }}_{\mathrm{e}}\mathrm{+}\mathrm{7}}{\mathrm{12}}}^{\mathrm{)}}\mathrm{\Gamma }\mathrm{(}{\frac{{\mathit{\alpha }}_{\mathrm{e}}\mathrm{+}\mathrm{5}}{\mathrm{4}}}^{\mathrm{)}}}{\mathrm{\Gamma }\mathrm{(}{\frac{{\mathit{\alpha }}_{\mathrm{e}}\mathrm{+}\mathrm{7}}{\mathrm{4}}}^{\mathrm{)}}}\mathrm{·}\end{array}$Here Γ(a) denotes the Γ-function, α_ν = (α_e − 1)/2 = α/2, and B_c denotes a (frequency dependent) characteristic magnetic field strength which implies a characteristic magnetic energy density ${\mathit{\epsilon }}_{{\mathit{B}}_{\mathrm{c}}}\mathrm{=}{\mathit{B}}_{\mathrm{c}}^{\mathrm{2}}\mathit{/}\mathrm{(}\mathrm{8}\hspace{0.17em}\mathit{\pi }\mathrm{)}$.

All Tables

All Figures

	Fig. 1 Correlation of radio halo luminosities with cluster properties of clusters in Table 1. Left: radio halo luminosity vs X-ray luminosity. Right: radio halo luminosity vs central entropy indicator K0 for the subsample of clusters for which high resolution Chandra data are available.
In the text

Fig. 2 Cooling time of CR in the ICM as a function of their kinetic energy. Left: CRe cooling times for typical densities and magnetic field strength that range from the central to the peripheral regions in galaxy clusters. Coulomb and IC/synchrotron cooling is modeled following Gould (1972b) and Rybicki & Lightman (1979), respectively. Right: CRp cooling times for the same densities. Coulomb cooling is modeled following Gould (1972a). The hadronic cooling time above the kinematic threshold for pion production is τpp = 1/(0.5   σpp   nN   υCR) with σpp = 32   mbarn, an inelasticity of  ~50% and υCR the CRp velocity. It is apparent that CRp above 10 GeV have livetimes in the ICM at least 60 times longer than CRe at any energy. CRe can survive for a Hubble time without re-acceleration only within the dilute outskirts of clusters. The radio emitting electrons have an energy of about 10   GeV in μG fields, and therefore a lifetime of 0.1 Gyr or less. If they are of hadronic origin, their parent CRp had energies of about 100 GeV, which have considerable longer lifetimes.

In the text

Fig. 3 Sketch of the interplay of CR streaming and turbulent advection for a single flux tube in a stratified atmosphere with gravity pointing downwards. Left: the dense CR at the center stream along the tube towards the CR depleted regions at larger atmospheric height. Middle: CR streaming stops as soon as a homogeneous CR space density is achieved. A turbulent eddy (represented by its angular momentum axis) starts to turn the magnetic structure upside down. Right: the former outer parts of the flux tubes are compressed at the center, and harbor now an overdense CR population, whereas the former inner parts are expanded at larger atmospheric scale height and therefore have now an underdense CR population. Again CR streaming sets in.

In the text

	Fig. 4 Left: CR density profiles for γtu = 1,3,   10,   30, and 100 (from bottom to top at small radii) including the same number of CRs each. Profiles are normalised to ϱ(0) | γtu = ∞. Also the more narrow gas density profile is shown (thick grey line). Right: CR normalisation profiles for the same parameters and the gas density profile (βcl = 0.8, Ras = 10, α = 2.5).
In the text

Fig. 5 Left: gamma-ray emissivity profiles for the CR distributions in Fig. 4 and X-ray emissivity profile of the ICM in grey. Emissivities are normalised to the central emissivity of a cluster with γtu = ∞. Right: total gamma-ray flux due to hadronic CRp interactions with the ICM nucleons as a function of γtu = τst/τad and for α = 2.25, 2.5, and 2.75 (solid, dashed, and dashed-dotted lines, respectively). Normalised to Lγ for γtu = ∞. (βcl = 0.8, Ras = 10).

In the text

Fig. 6 Left: radio emissivity profiles for the cluster shown in Fig. 4 assuming the same magnetic field profiles with B0 = 6   μG and δB = 0. Emissivities are normalised to the central radio emissivity of a cluster with γtu = ∞. The X-ray profile is shown in grey. Right: total radio flux due to hadronic CRp interactions with the ICM nucleons as a function of γtu = τst/τad and for different dependencies of the magnetic field strength on the turbulence level as parametrised by δB = 0, 1, and 2 (solid, dashed, and dashed-dotted lines, respectively). Normalised to Lν for γtu = 10. (βcl = 0.8, Ras = 10, B0 = 6   μG, α = 2.5, z = 0).

In the text

Fig. 7 CR heating profiles due to CR streaming (upper black curves) and Coulomb losses (lower black curves) for the CR distributions resulting from different streaming velocities as indicated at curves, the turbulent heating profile (grey dashed line, calculated according to Enßlin et al. 2007), and the X-ray cooling profile (grey solid line). The adopted cool core parameters are n0 = 0.05cm-3, kT = 3   keV, rc = 10   kpc, υtu = 350   km   s-1, βϱ = 1, βcc = 0.4, Rcc = 10   rc, α = 2.5, and a CR to thermal energy ratio of εcr/εth = 0.15 at the outer radius of the cool core, Rcc, and less in the center (down to εcr/εth ≈ 0.01 for large αst). Since we assume the gas motions to be mostly convective, we set χtu = 10 to model an efficient radial transport. This implies αtu = 0.36 and κtu = 3.6 × 1030   cm2   s-1. We further have γtu = 2.4, 24, and 120 for αst = 0.5, 0.05, and 0.01, respectively. The total X-ray cooling luminosity of the cool core region is about 4.4 × 1043   erg   s-1. The heating power of the turbulence is about the same, but mostly going into outskirts of the cool core. The total CR heating power (streaming plus Coulomb) within the Rcc = 10   rc is 2.9, 2.4, and 0.8 × 1043   erg   s-1 for αst = 0.5, 0.05, and 0.01, respectively.

In the text

Fig. 8 Central CR heating within rc of the cool core in Fig. 7 as a function of the CRp streaming velocity. The CR streaming heating power decreases with decreasing streaming velocity. For αst ~ 0.1 this trend is weakened by the build up of a centrally enhanced CRp population. For αst ~ 1 the streaming velocity is so large, that the advective work on the CRp population is instantaneously dissipated, and the heat input is therefore independent of αst in this regime. The build up of the central CR population with decreasing αst can be seen in the Coulomb heating rate.

In the text
